Mindray DC-30 Service Manual

7-26 Structure and Assembly/Disassembly

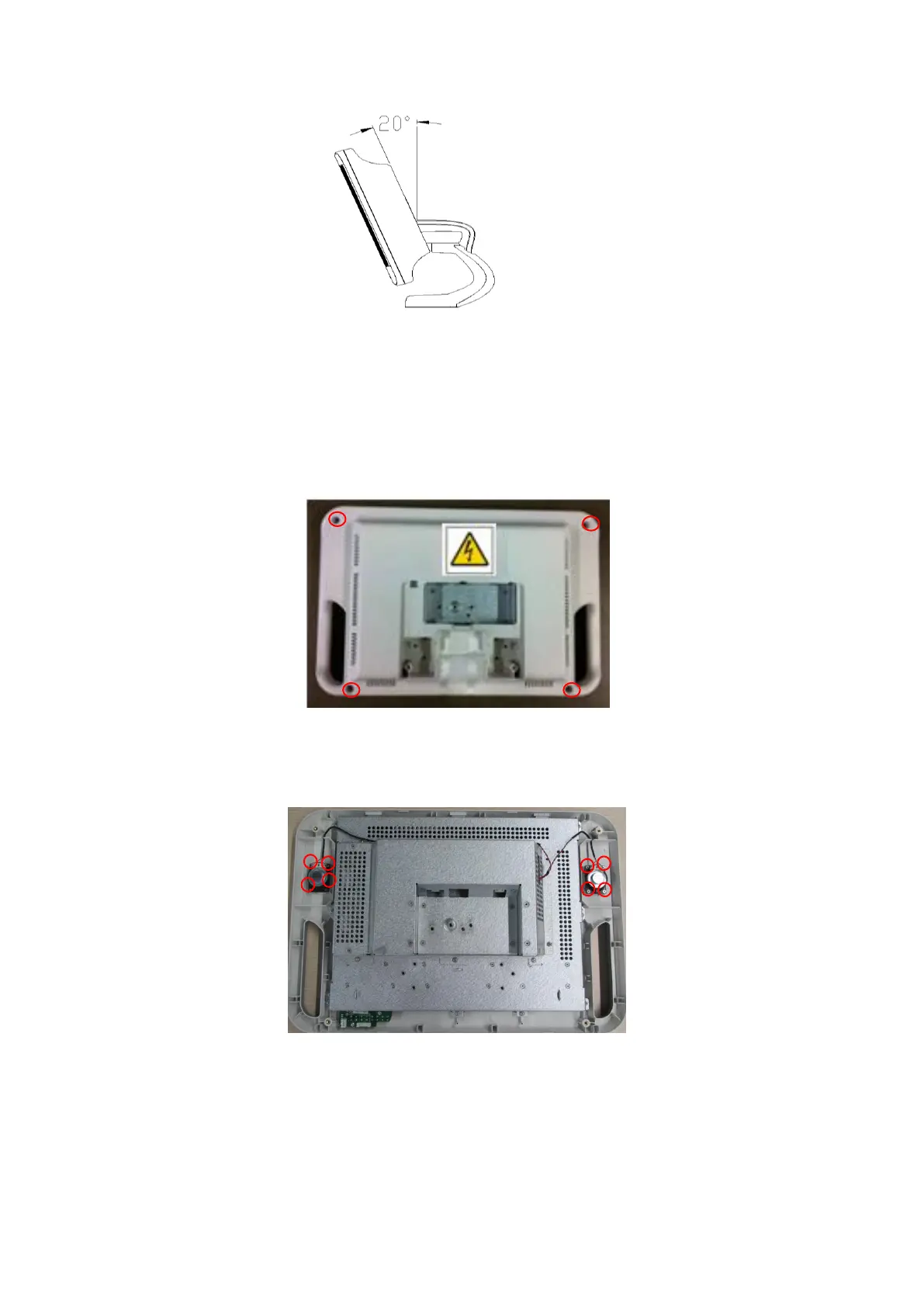

Fig 7-6 Disassemble the Monitor Module (4)
After removing the monitor assembly, you could do the steps as described in the
following.
7.4.1.1 Speaker
1. Remove the M4X12 screws (4 pcs) securing the rear cover of the monitor, and then
remove the rear cover.
Figure 7-7 Removing Monitor Rear Cover
2. Remove the screws M2.6 X 10 (8 pcs) and strapping. Unplug the cable to take down
the speaker.
Figure 7-8 Removing the speaker
7.4.1.2 OSD Key Board
1. Pull out the plugs by the right side of the LCD assembly, remove the M3X8
combination screws (8 pcs) securing the PCB shielding cover, and then remove the

Mindray DC-30 Specifications

General

DICOM	Yes
Hard Drive	500 GB
Continuous Wave Doppler	Yes
Tissue Harmonic Imaging	Yes
Relative Humidity	30% to 85% (non-condensing)
Imaging Modes	Color Doppler, Power Doppler
Power Supply	100-240 V~ 50/60 Hz
Probe Connectors	2 active probe connectors
Probe Types	Convex, Linear, Phased Array
Operating Temperature	10°C to 40°C
Storage Temperature	-20°C to +55°C
Transducer Ports	2
