Mindray DC-30 Service Manual

Structure and Assembly/Disassembly 7-49

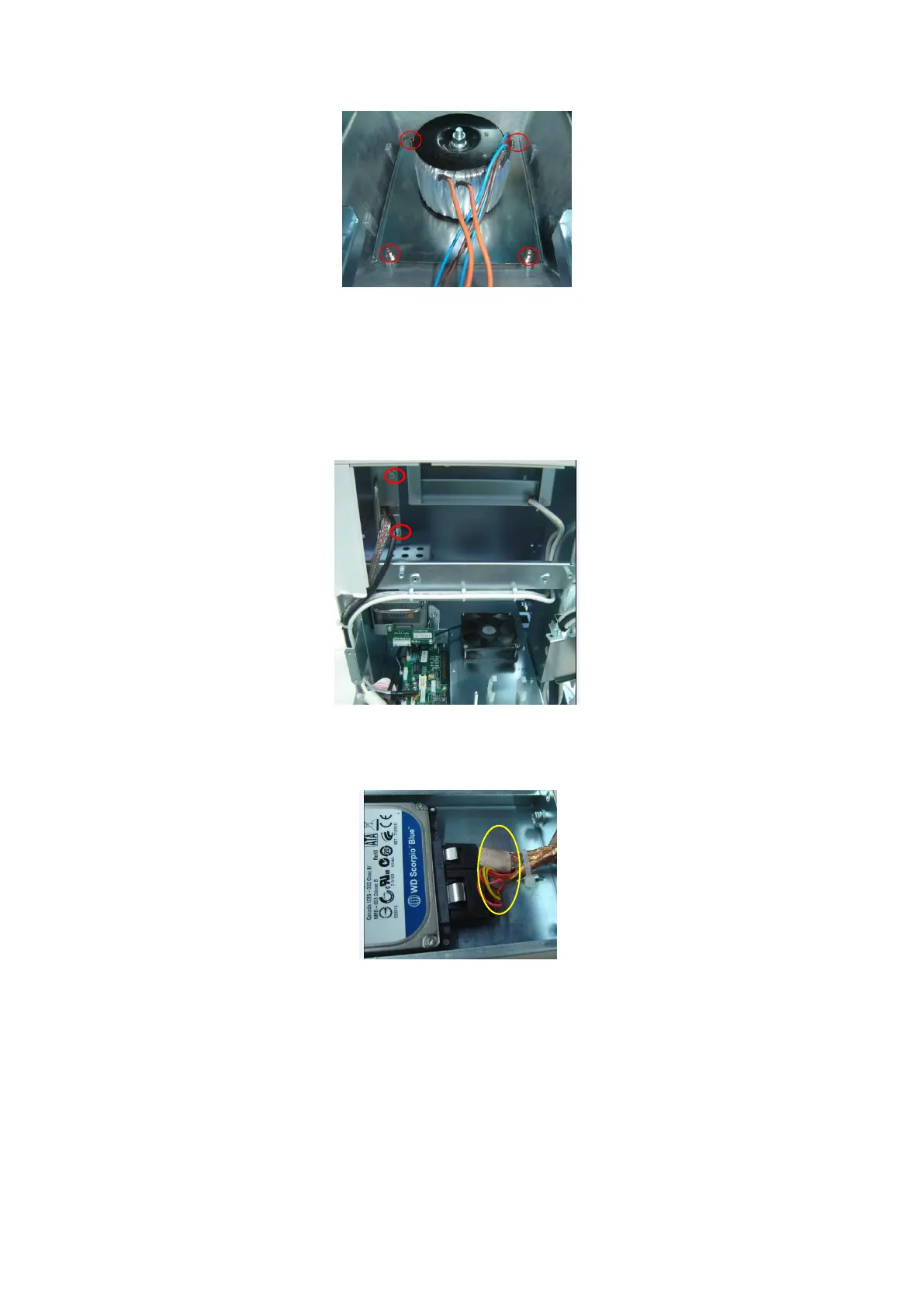

Fig 7-58 Disassemble the isolation transformer
7.4.12.4 Hard Disk
1. Remove the IO module and the rear cover (refer to chapter 7.4.2 IO Rear Board and
7.4.3 Machine Fan).
2. Remove the M4X8 screws (2 pcs) and cut off the cable tie, hold the handle to pull
out the hard disk assembly.
Fig 7-59 Disassemble the hard disk assembly
3. Cut off the cable tie, press the lock seat of the HDD connecting cable plug, and pull
out the plug.
Figure 7-60 Disassembly of HDD (1)
4. Remove the M3X8 screws (4pcs) to remove the hard disk.

Mindray DC-30 Specifications

General

DICOM	Yes
Hard Drive	500 GB
Continuous Wave Doppler	Yes
Tissue Harmonic Imaging	Yes
Relative Humidity	30% to 85% (non-condensing)
Imaging Modes	Color Doppler, Power Doppler
Power Supply	100-240 V~ 50/60 Hz
Probe Connectors	2 active probe connectors
Probe Types	Convex, Linear, Phased Array
Operating Temperature	10°C to 40°C
Storage Temperature	-20°C to +55°C
Transducer Ports	2
