Mindray DC-30 Service Manual

7-50 Structure and Assembly/Disassembly

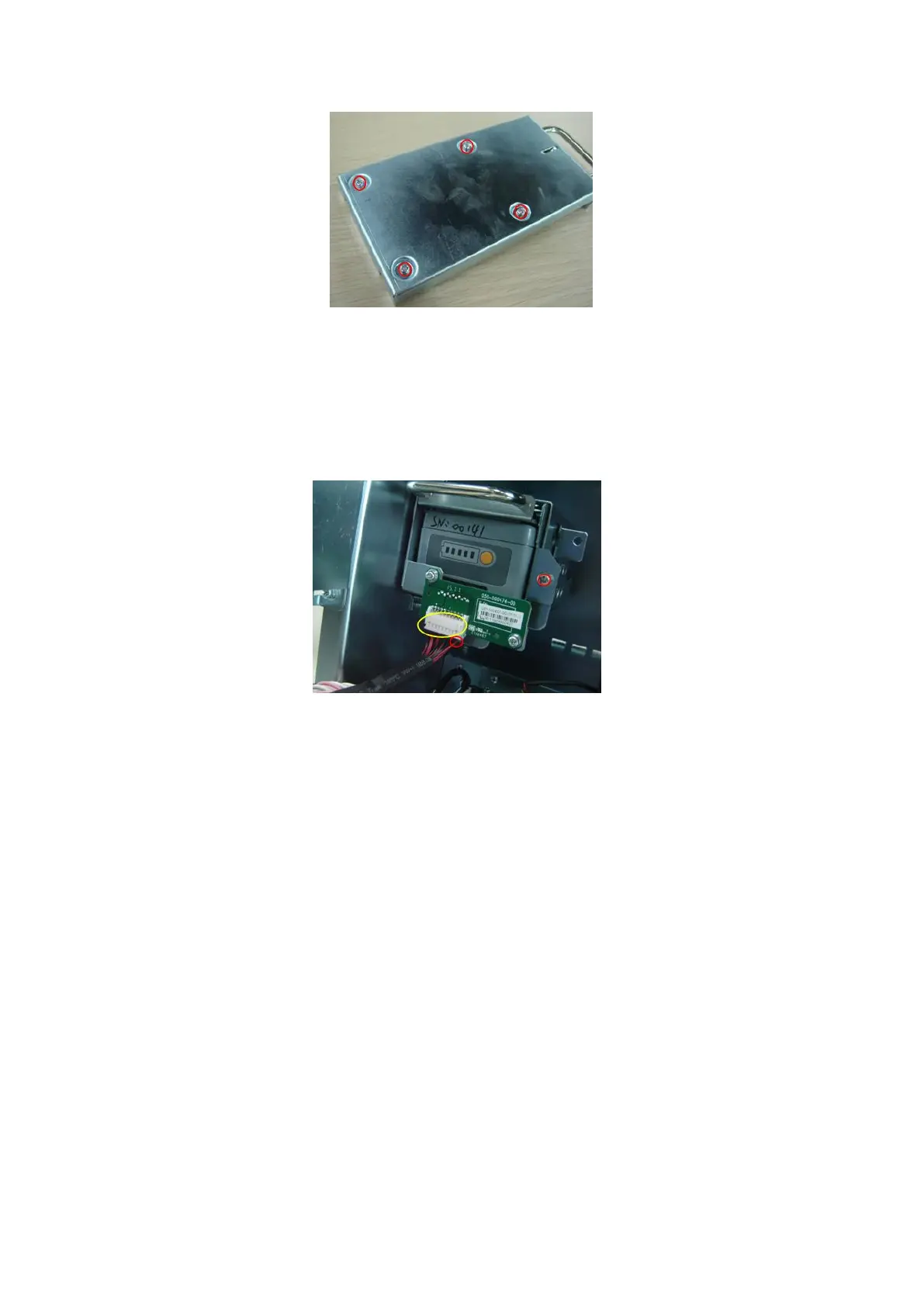

Figure 7-61 Disassembly of HDD (2)
7.4.12.5 Battery Assembly
1. Remove the IO module and the rear cover (refer to chapter 7.4.2 IO Rear Board and
7.4.3 Machine Fan).
2. Disconnect the cable connection on the battery connecting board, remove the fixing
screws M3X8 (2 pcs) and hold the handle to draw out the battery assembly.
Fig 7-62 Disassemble the battery assembly
3. You can install the battery assembly as per the steps described above in reversed
order.

Mindray DC-30 Specifications

General

DICOM	Yes
Hard Drive	500 GB
Continuous Wave Doppler	Yes
Tissue Harmonic Imaging	Yes
Relative Humidity	30% to 85% (non-condensing)
Imaging Modes	Color Doppler, Power Doppler
Power Supply	100-240 V~ 50/60 Hz
Probe Connectors	2 active probe connectors
Probe Types	Convex, Linear, Phased Array
Operating Temperature	10°C to 40°C
Storage Temperature	-20°C to +55°C
Transducer Ports	2
