Mindray DC-30 Service Manual

3-14 System Installation
 Environment
 System Connection
Note: A maximum of 6 text/graph printers can be connected to the printer adapter at
the same time.
Before power on, perform the following steps:
1. Connect the printer adapter to the ultrasound system using Shielded Ethernet cable;
2. Connect the printer adapter to the ultrasound system using Auxiliary power cord
together with the power adapter;
3. Connect the printer adapter to the graph/text/video printer using the USB cable.
4. Connect the ultrasound system and graph/text/video printer to the power sockets
separately.

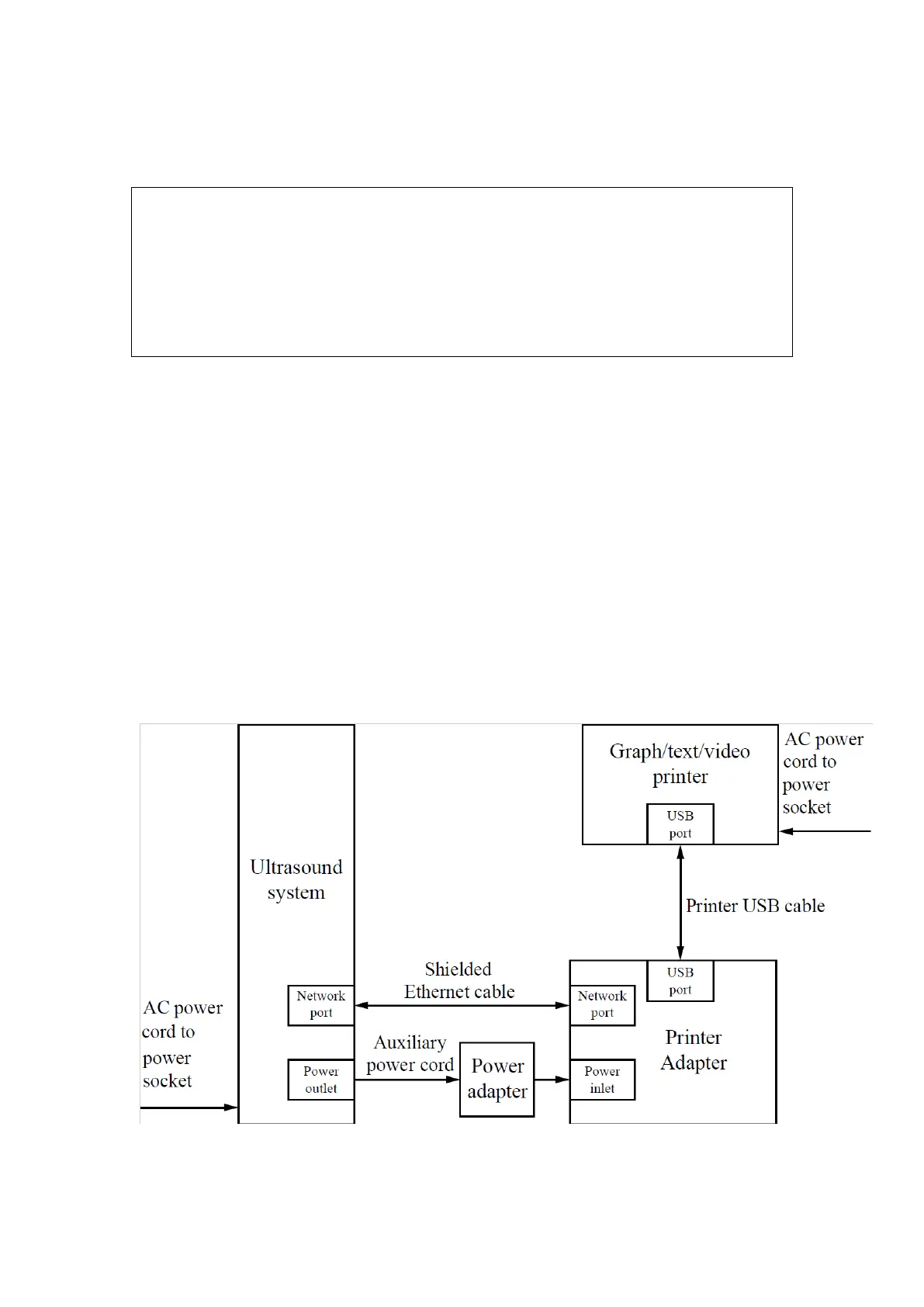

The system connection diagram is shown as follows：
Operation
Storage and Transportation
Ambient
temperature
0°C -40°C
-20°C -55°C
Relative
humidity
30%-85% (no condensation)
20%-95% (no condensation)
Atmospheric
pressure
700hPa-1060hPa
700hPa-1060hPa

Mindray DC-30 Specifications

General

DICOM	Yes
Hard Drive	500 GB
Continuous Wave Doppler	Yes
Tissue Harmonic Imaging	Yes
Relative Humidity	30% to 85% (non-condensing)
Imaging Modes	Color Doppler, Power Doppler
Power Supply	100-240 V~ 50/60 Hz
Probe Connectors	2 active probe connectors
Probe Types	Convex, Linear, Phased Array
Operating Temperature	10°C to 40°C
Storage Temperature	-20°C to +55°C
Transducer Ports	2
