Revision:1.0(2023–5–17)
26
Wireless Probe Charging Station

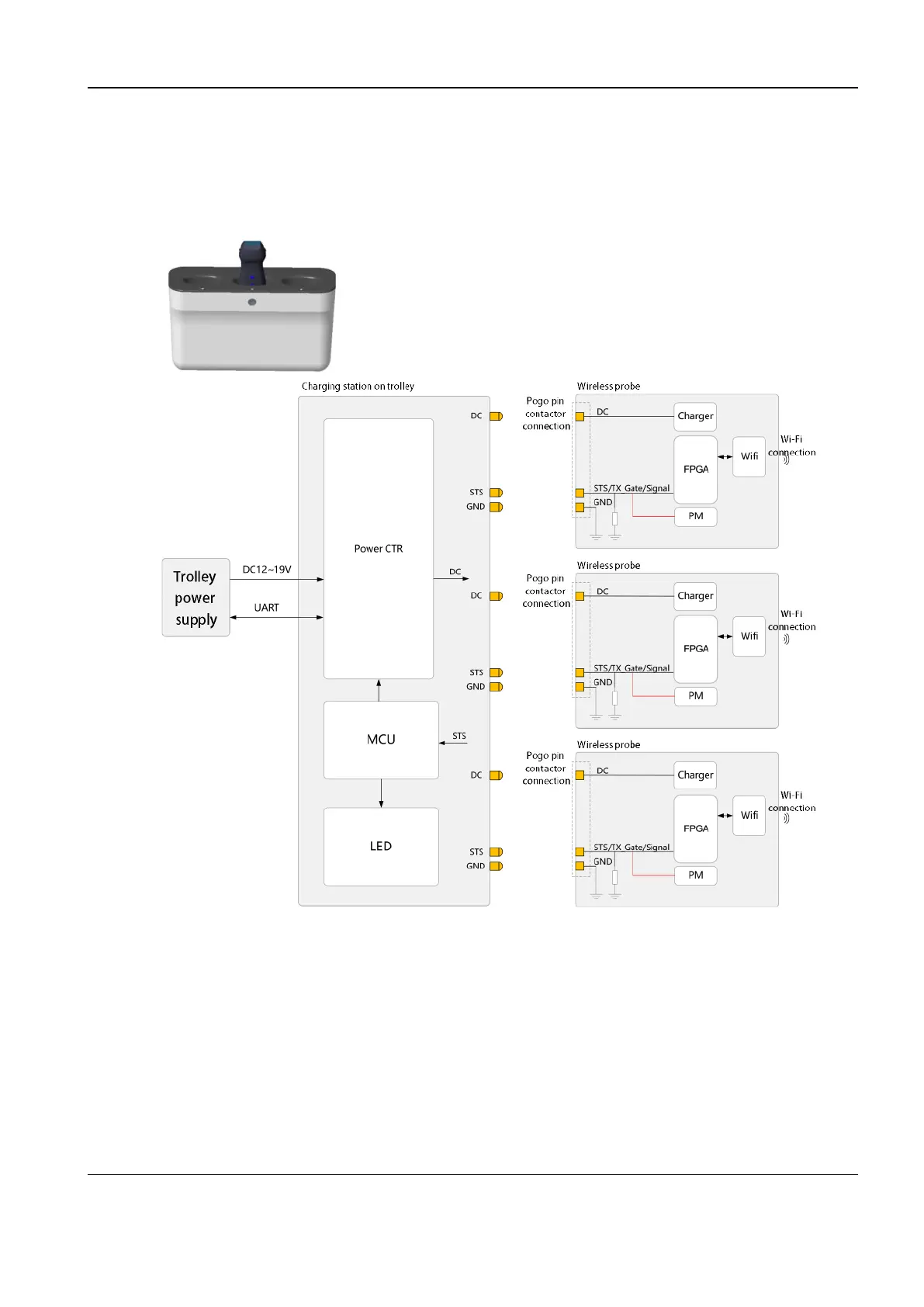

The following figure shows how the wireless probe is connected to the TEX charging station.
Figure2–4 Charging station and charging mechanism
The charging station is mounted on the TEX trolley and powered by the TEX trolley (through
battery of the trolley or the mains power). The three outputs are independent from one another.
Main function:
• When the charging station detects presence of the probe, it provides 9 V output to charge the
probe.
• While charging the probe, the charging station cools down the probe with its fan.
• During the charging process, the charging station measures the battery level of the probe.
Diagnostic Ultrasound System
Service Manual
2 Product Knowledge
