2 System Overview
Operator’s Manual 2 - 9
2.8.1 I/O Module

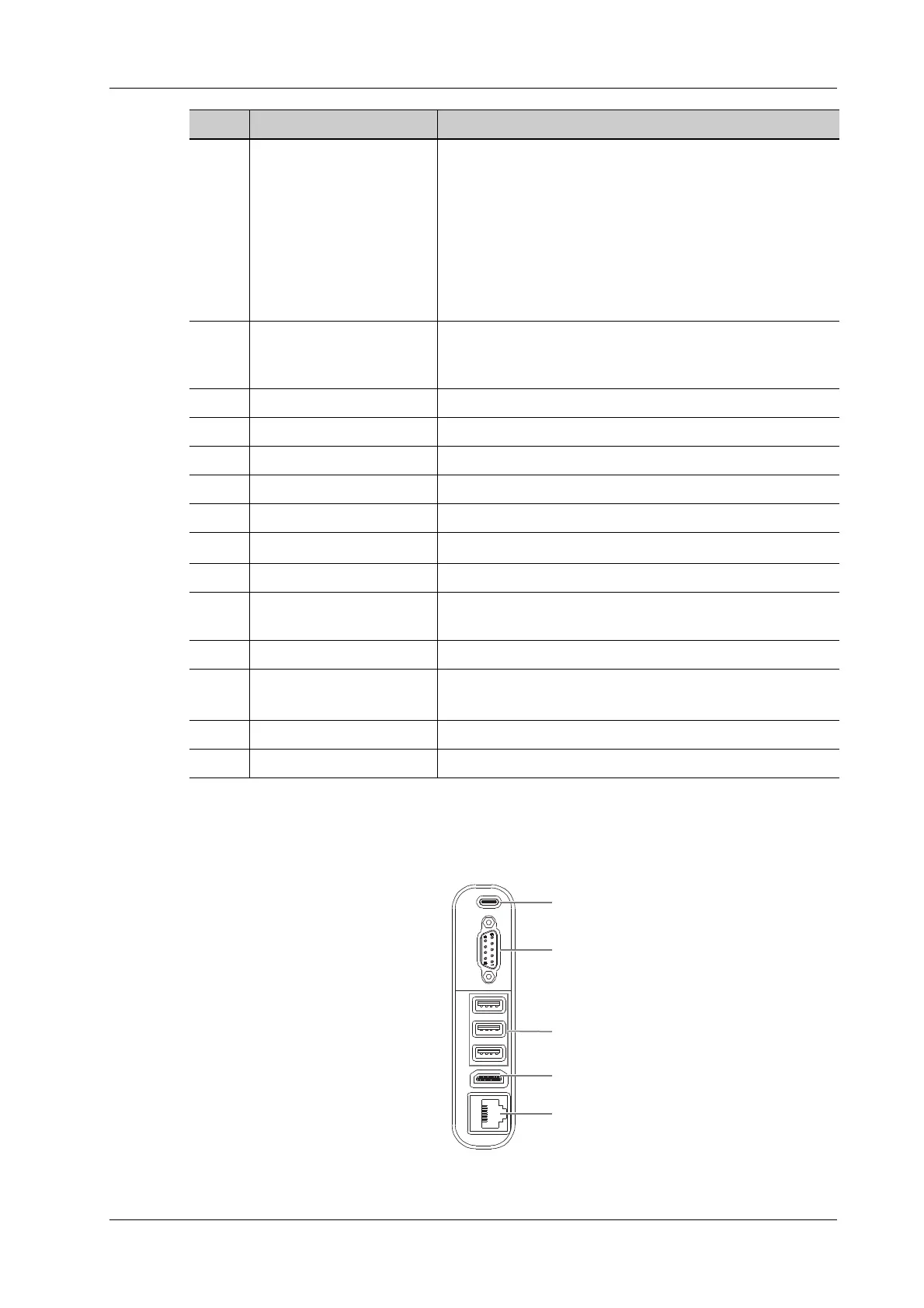

Figure 2-2 I/O interface
4. Power output Provided a power interface for the peripheral devices.
NOTE:
The auxiliary power output socket of the peripheral
equipment provided by the main unit connects the power
supply of the optional peripheral equipment. Do not
connect any other equipment to this interface; otherwise,
the system may fail because the rated output power is
exceeded.
5. Equipotential terminal Equipotential connection is used to balance the protective
earth potential between the equipment and other electrical
equipment.
6. Caster Used to fix or move the device.
7. AC power cord Retractable AC power cord.
8. Air Charge Module Configured with the air station to charge the main unit.
9. Battery pack Supply power without AC power supply.
10. Storage bin Used for keeping the cases, towelette, etc.
11. Trolley back handle
Used for moving the trolley.
12. Probe ports Connects a probe to the main unit.
13. Touch screen and display Operator-system interface or control; displays the image and
parameters during the scan.
14. Height adjustment lever Press to adjust the height of the stand.
15. Trolley rear handle
Used for ascending/descending the trolley or moving the
trolley.
16. Front storage bin Used for keeping the cases, towelette, etc.
17. Printer bracket Used for placing the printer.
No. Name Function
1
2
3
4
5
