Mindray TEX20 Operator's Manual

3 System Preparation
Operator’s Manual 3 - 9
Perform the following procedure:
1. Keep the cable end of the transducer to the bottom side of the system; insert the connector into
the system port, then press in fully.
2. Toggle the locking lever to the left position.
3. Position the probe properly to avoid it being treaded on or becoming wrapped around other
devices. DO NOT allow the probe head to hang free.
3.6.2 Disconnecting a probe
Perform the following procedure:
1. Turn the locking lever to the right position to unlock the connector.

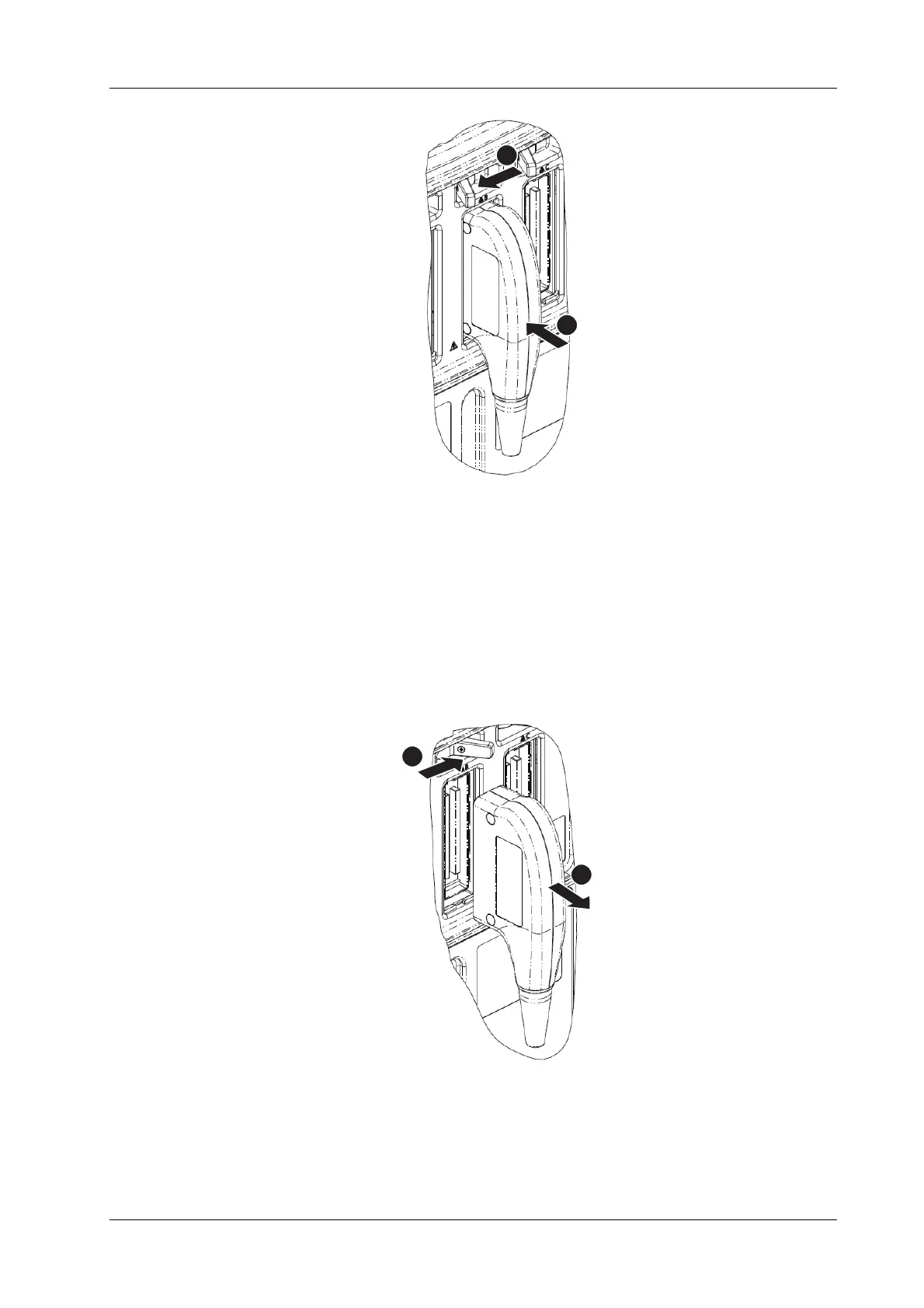

2. Pull the probe connector straight out as shown in the figure.
1
2
1
2
