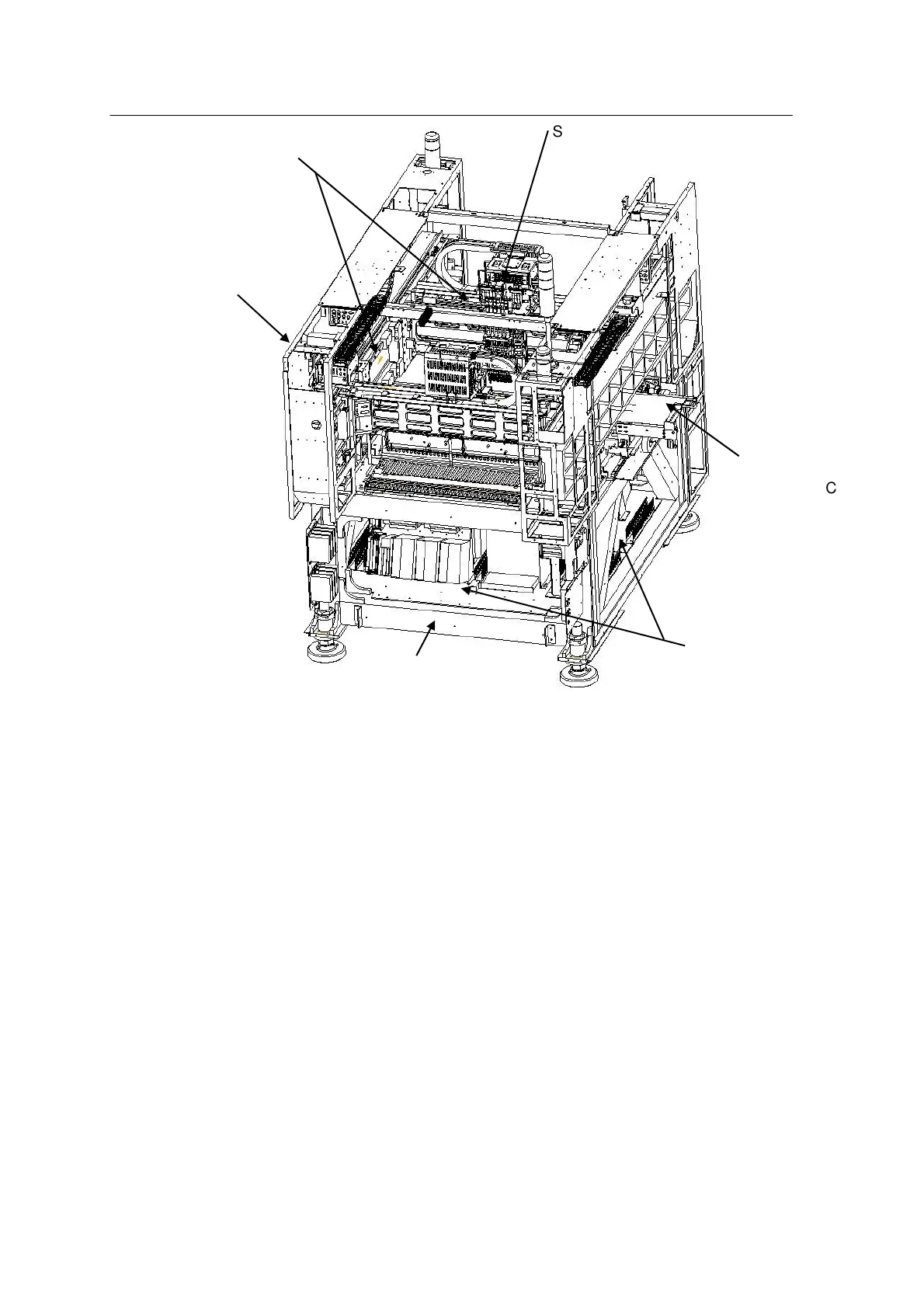

1.Main Frame: Optimized design through 3-D structural analysis provides high rigidity
and
reduced vibration.
2.X-Y Gantry: Single-sided linear motor and optical linear encoder
are used to move to a specified XY position for quick and accurate
component pick-up, vision recognition and component placement
(Dual Gantry).
3. Conveyor: Has compact size to meet W410*D460 PCB.
(Mx400/P : Dual Conveyor,Mx400S/PS : Single Conveyor)
4.Head : Picks and places components using the nozzle at the end
of head shaft
(Mx400:6M+6M,Mx400P : 6M+3P, Option : 3P+3P)
5.Electronic Assembly: Signal cables are isolated from power cables
to prevent electromagnetic interference
HEAD ASS
Y
(
Front, Rear
)
X
-
Y GANTRY ASS
Y
COVER FRAME
CONVEYOR ASS
Y
Mx400/P:Dual Con
’
v
Mx400S/PS:Single Con
’
v
ELECTRONIC ASS
Y
MAIN FRAME
