Chapter 1. Machine Setup 1-
3
Machine Setup
1) Move the tray feeder to the Mx-Series main frame. Then, two persons
should lift the tray feeder to the height of the damping base and carefully
insert it into the machine. The tray feeder should be slowly inserted by
slightly raising the rear to keep the damping base and the tray feeder level
with each other.

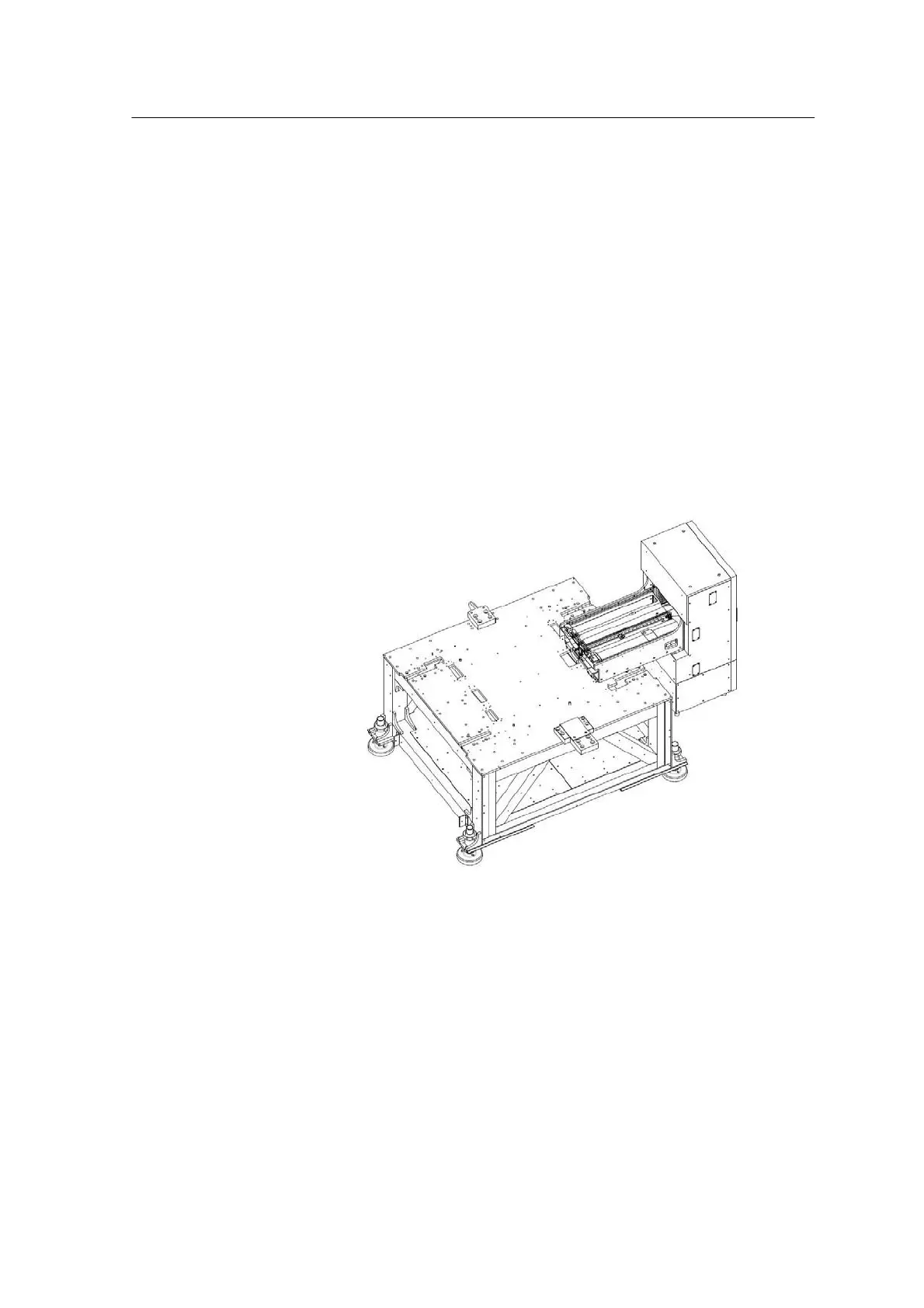

(The figure below shows the tray feeder attached to the Mx-Series
main frame)
