Mitel 3000
Installation & Mainten
ance Manual
16

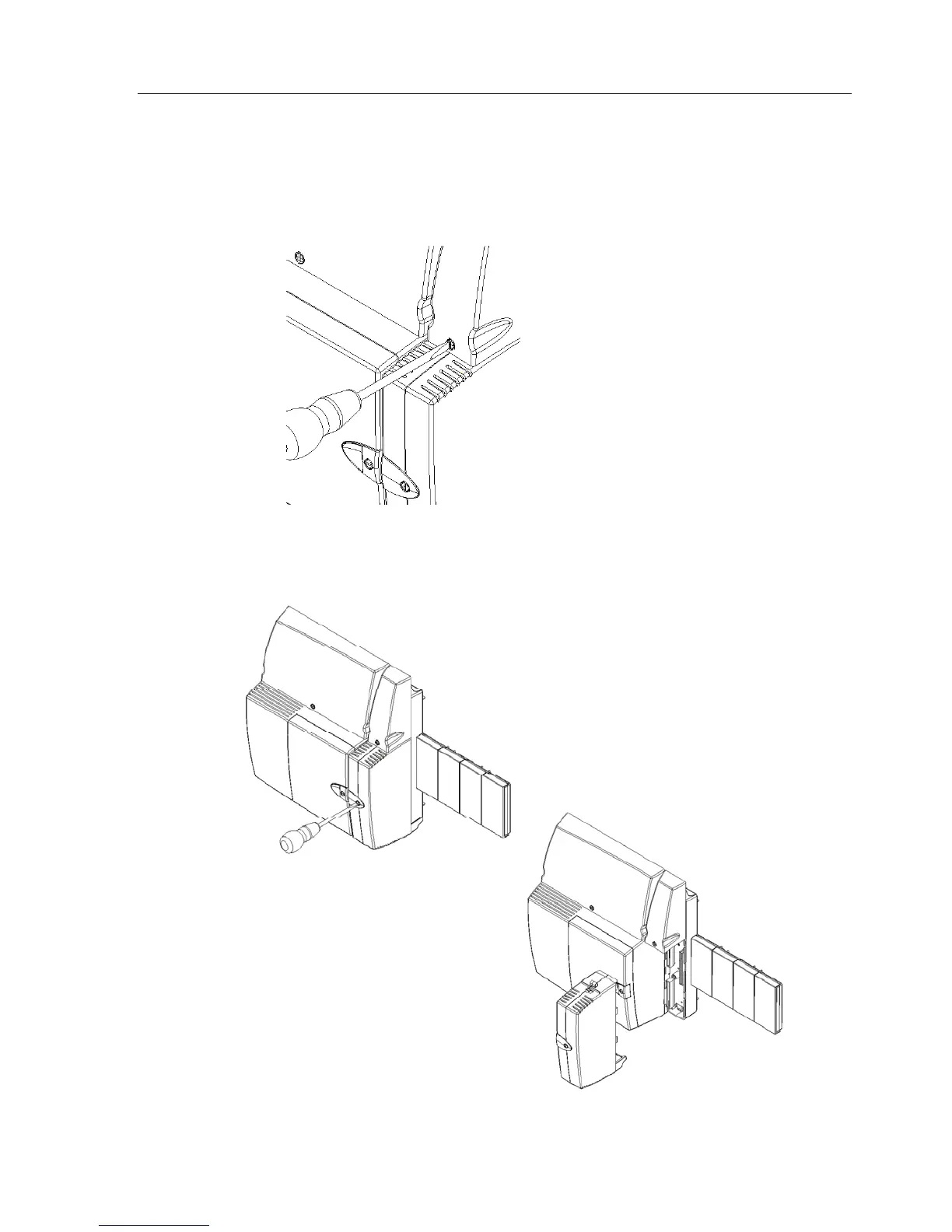

Removing the 008 module from the backplane
1.
Unlock the upper locking screw by turning the lo
cking screw, with a suitab
le screwdriver, ¼ turn
counterclockwise.
2.
Lift the c
over.
3.
Unlock the Extension
module locking screw by turn
ing
the locking screw, with a suitable screwdriver, ¼ turn
counterclockwise.
4.
Gently p
ull the lower half o
f the module off.
