Connecting T1/E1 PRI Trunks

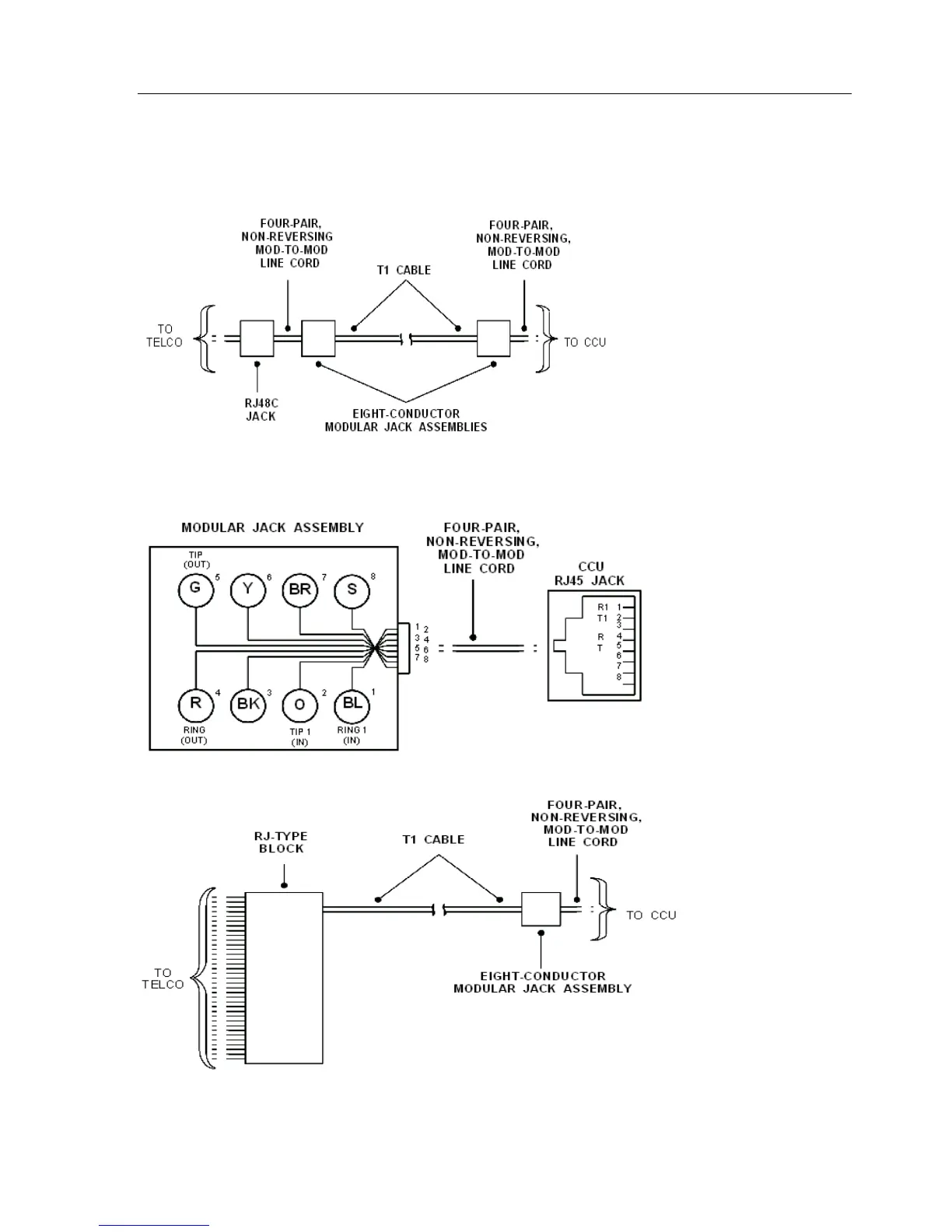

T1/E1 PRI trunks are terminated in the CCU MDF using an RJ 45 connector.
For T1/E1 PRI trunks terminated on RJ48C jacks near the MDF, use a four-pair, non-reversing, mod-to-mod line
cord to connect the T1 to the CCU.
For T1/E1 PRI trunks terminated on RJ48C jacks away from the CCU, you will need two eight-conductor
modular jacks and two four-pair, non-reversing, mod-to-mod line cords. Run enough cable to extend from the
Telco RJ48C jack to the CCU.
For T1/E1 PRI trunks terminated on an RJ-type block, use an eight-conductor modular jack assembly and a four-
pair, non-reversing, mod-to-mod line cord. Run enough cable to extend from each Telco termination to the CCU.
