If the paging amplifier is the type that provides a microphone input a 1:1 Audio Isolation transformer with a 600
to 900 ohm impedance must be connected between the extension port and the microphone input. A Radio Shack
1:1 Audio Isolation Transformer (p/n 273-1374) was used by Mitel to verify this operation, but any transformer
with a similar specification will work. In addition, commercial 1:1 (600 - 600 ohm) transformers are available
from most sound system suppliers.
Connecting a PC or Printer to the Serial Port
A six-foot cord with a four-way RJ11 plug on one end and a six-way RJ plug on the other is provided. An RJ-to-
DB9 adapter is also provided.
Connect the cord to the four-way RJ11 connector on the CCU.
Connect to the PC using either the six-way RJ plug or the cord and DB9 converter as required.
The pinouts from the RS 232 interface of the DB9 to the RJ11 are:
DB9 connector RJ11 plug
2 4
3 3
5 1
Central Bell
If a central bell is required, connect it to a spare extension position and include the extension in the Ringing
Groups that require the bell.
Extension Module MDF Connections

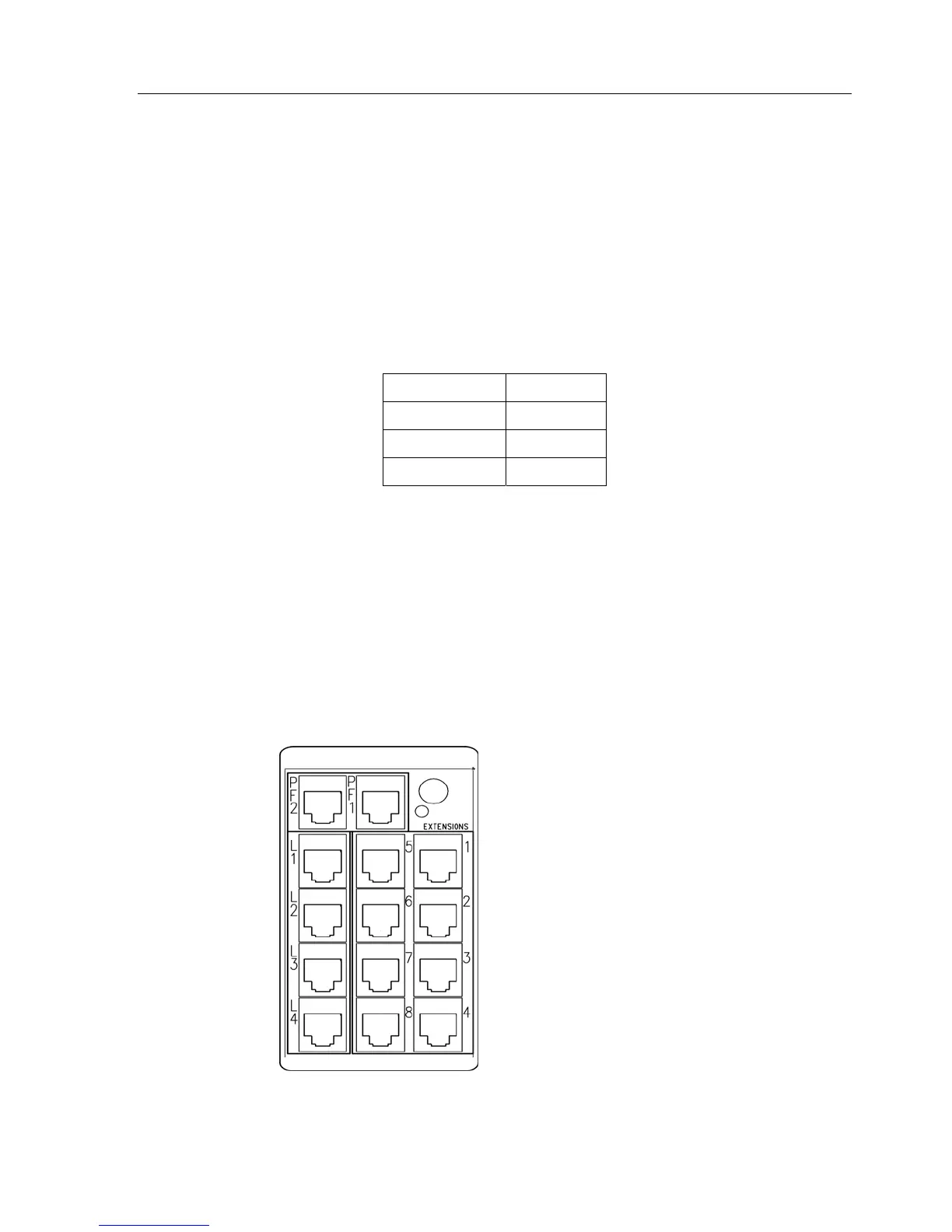

The connections on the Extension module are shown below.
• Eight RJ11 connectors for the extensions.
• Four RJ11 connectors for the CO lines.
• Two RJ11 power failure connectors.
