Mitel 3000 Installation And Maintenance Manual

Mitel 3000
Installation & Maintenance Manual
32
Cabling the unit
All the extensions and lines are connected to the switch by RJ11 connectors located in the MDF areas.
RJ11 connectors or optional patch panel with RJ11 type connections should be mounted or placed less than 7' of
the CCU to facilitate using standard modular cables of 7' in length.
External lines should be connected via RJ11 from the CCU to the telecommunications interface. It is
recommended the telecommunications provider terminate the lines with RJ11 interfaces. In the event the lines are
terminated with another interface, such as RJ21, the installer may install their own RJ11 connections from the
RJ21.
Caution
Use only 26AWG line cord or larger for CO line connections.

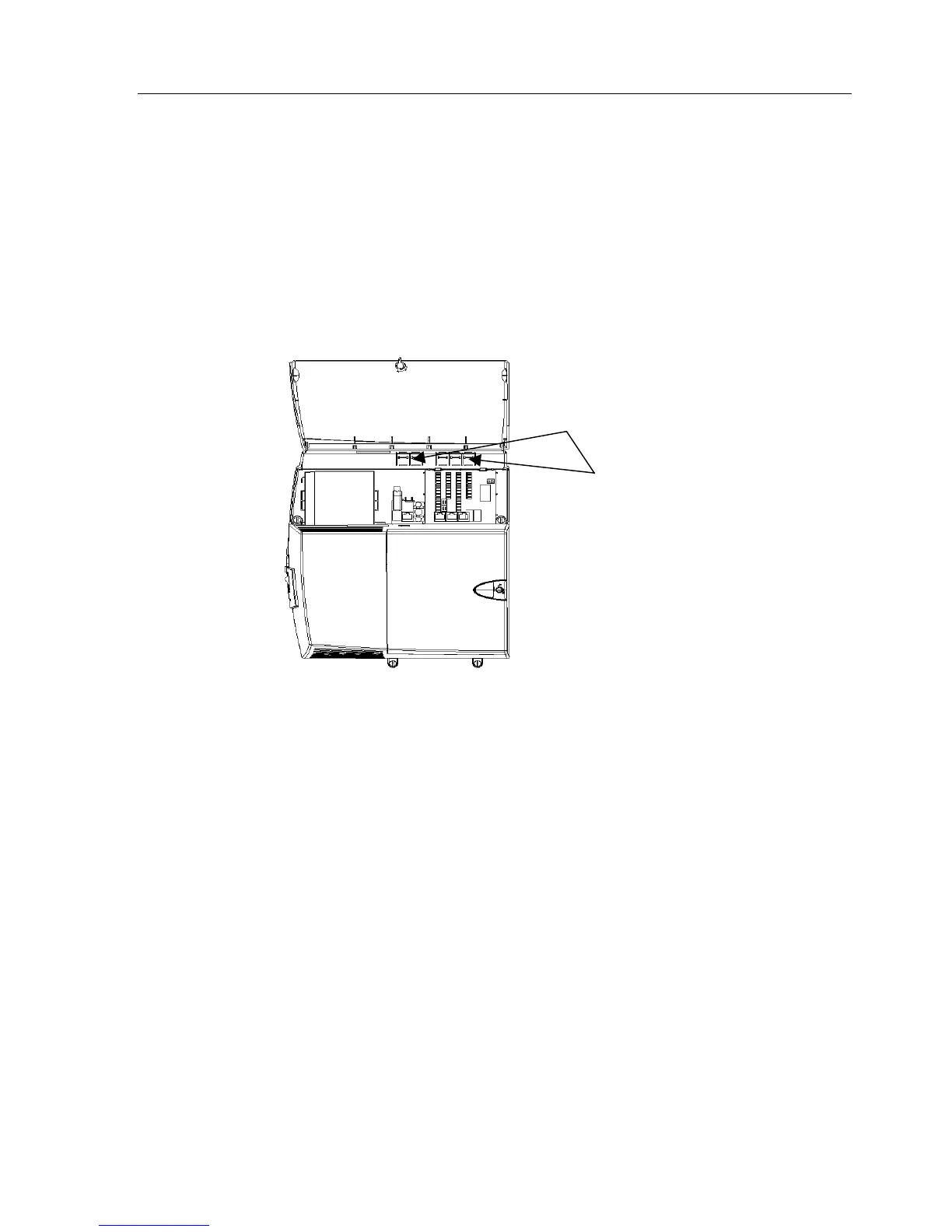

Cabling Breakouts
