Installation
Note:
It is possible to connect a DSI phone on the multiple assigned RJ45 sockets x.1 and x.2 directly
without using a fan-out panel FOP. The following 2 ports are available in this case: Port 1 on x.1 and
port 2 on x.2. Additionally port 7 is available on x.3 and port 8 is available on x.4.
Note:
Circuit type as per EN/IEC 60950: SELV
4.7.3.1.1 Connection

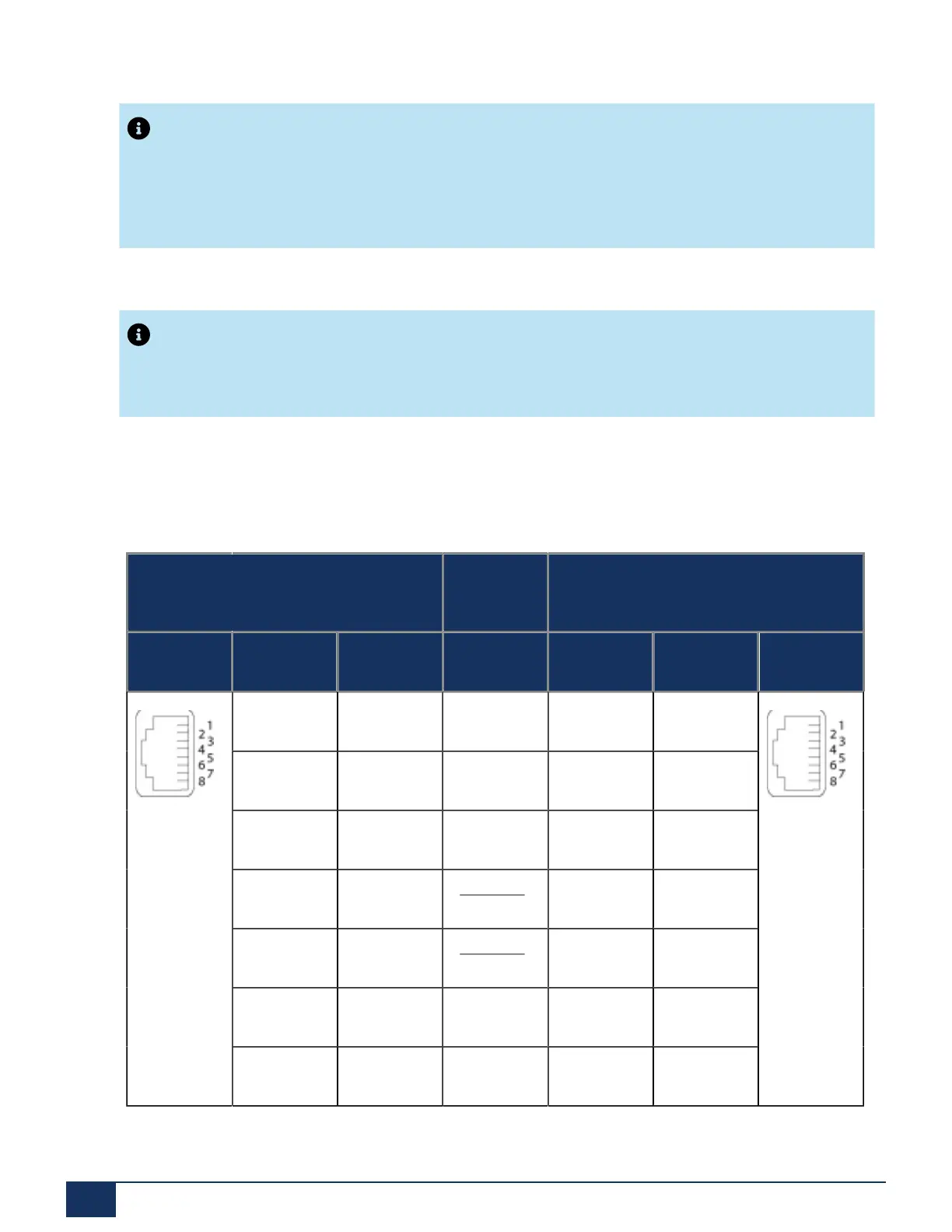

Table 46: Connection of individually assigned DSI terminal interface
Communication server Cable
cores
Connection socket
Socket Pin DSI signal DSI signal Pin Socket
1 – – 1
2 – – 2
3 – – 3
4 a a 4
5 b b 5
6 – – 6
7 – – 7
Release 7.1
125 System Manual for Mitel SMB Controller
