System Overview
All the connections and control elements are accessible from the front. The display elements are arranged
so that they remain visible whatever the installation position.

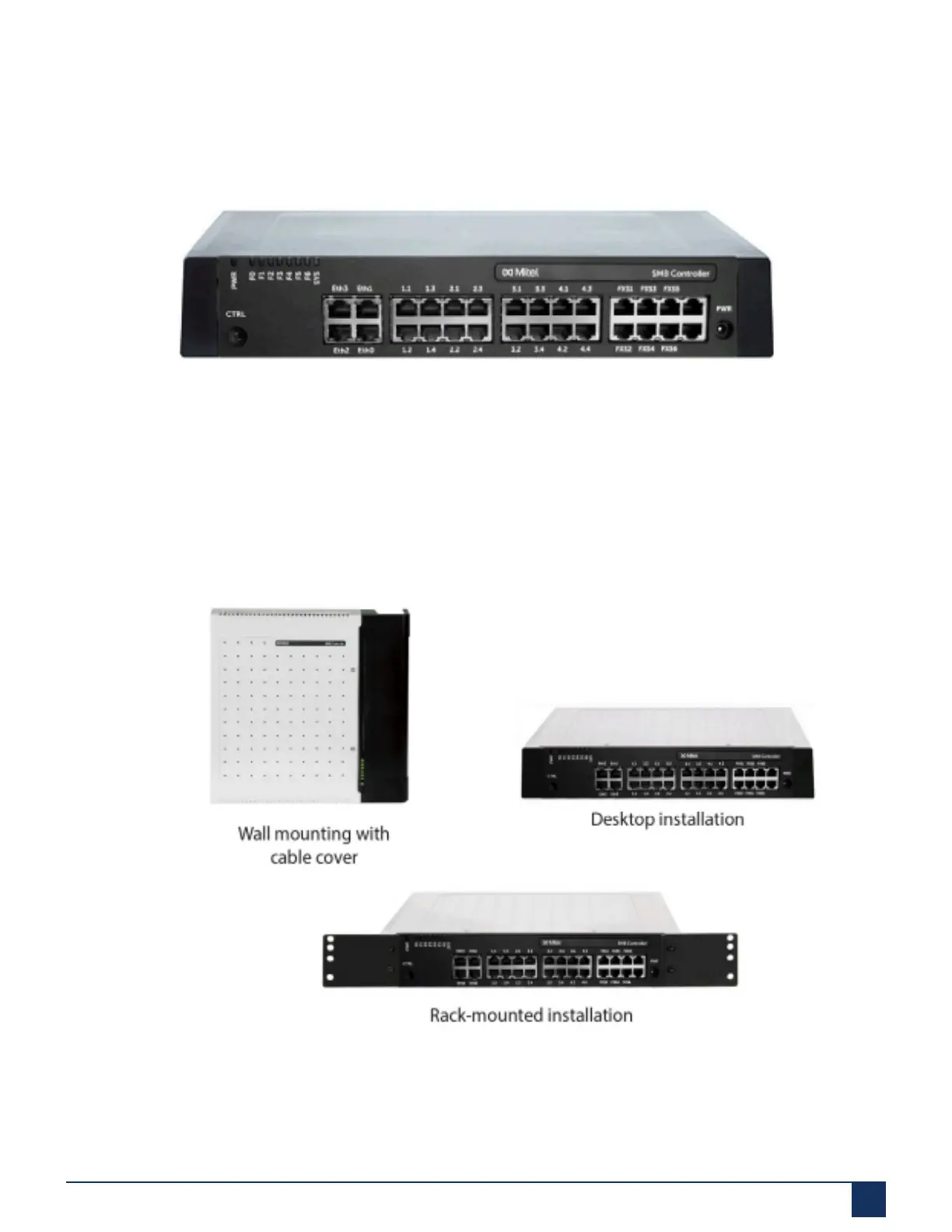

Figure 1: Mitel SMB Controller
The communication server can be expanded using interface cards and system modules. The Mitel SMB
Controller ships with a fitted CPU module, 6 analogue terminal interfaces and 4 Gbit-LAN connections.
2.2.1 Installation versions
The Mitel SMB Controller is suitable for both desktop installation, wall mounting and installation in a
19" rack. Covers for connecting cables and special installation covers for rack installation are available
separately.
Figure 2: Installation versions
Release 7.1
System Manual for Mitel SMB Controller 8
