Installation
On the front panel all the connections are made using RJ45 connectors.
4.6.1 Direct connection
Standard commercial cables are used to connect directly to the telephone network. Details can be found in
the Chapter Network interfaces.
4.6.2 Indirect connection
There are two possibilities for connecting the communication server indirectly to the telephone network and
terminal-side cabling:
• Connection via main distribution board
• Connection to a universal building cable installation (UBC)
4.6.2.1 Connection via main distribution board

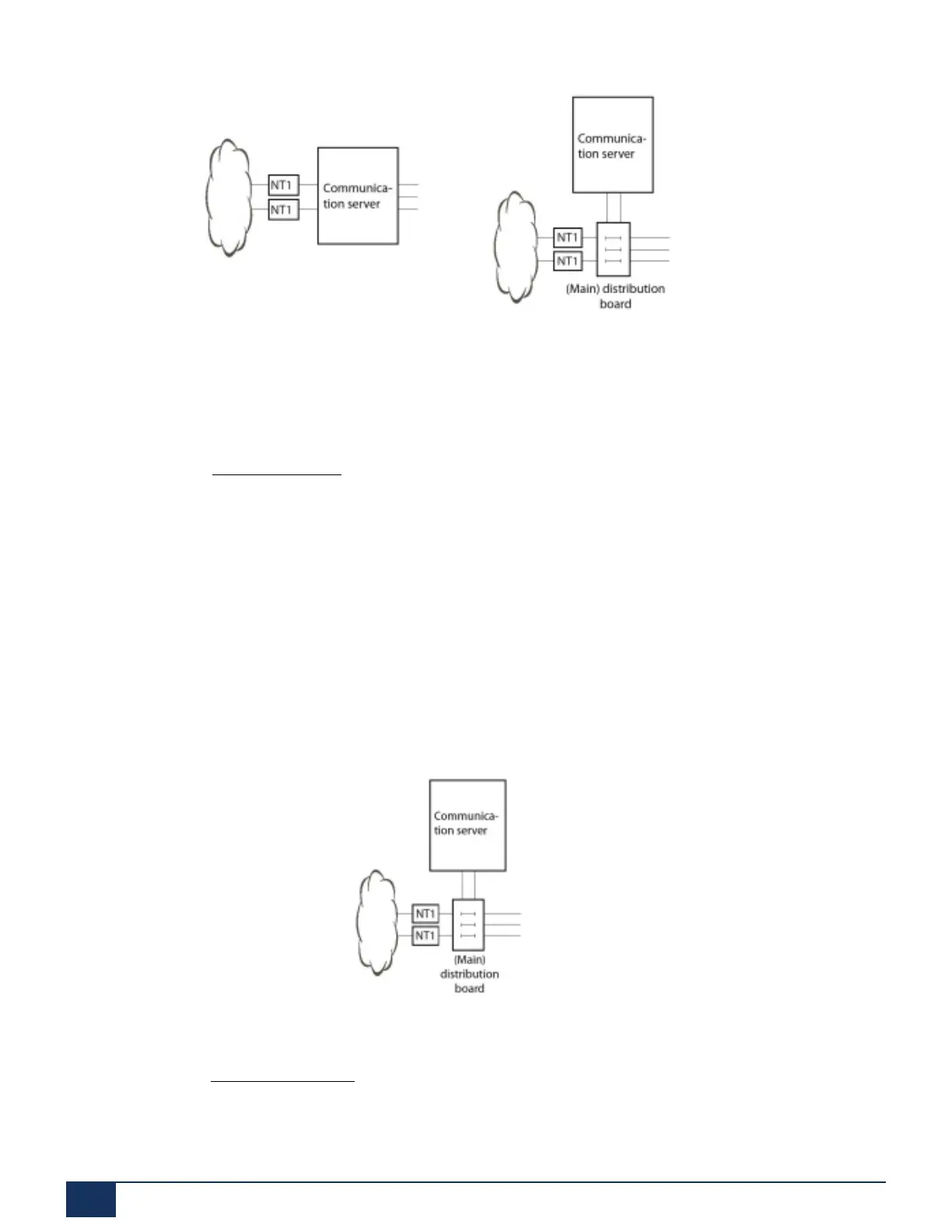

Figure 21: Connection via main distribution board
The interface sockets on the front panel and on the fan-out-panel (FOP) where applicable are connected
with the (main) distribution frame or the patch panels using either patch cables or prefabricated system
cables (see Equipment Overview).
Release 7.1
103 System Manual for Mitel SMB Controller
