Installation
The FOP fan-out-panel does not require a power supply
4.7.5 Ethernet interfaces
The Mitel SMBC communication server has 4 GByte Ethernet interfaces permanently routed to the front
panel and labelled accordingly. The RJ45 sockets are highlighted in colour in the figure below.

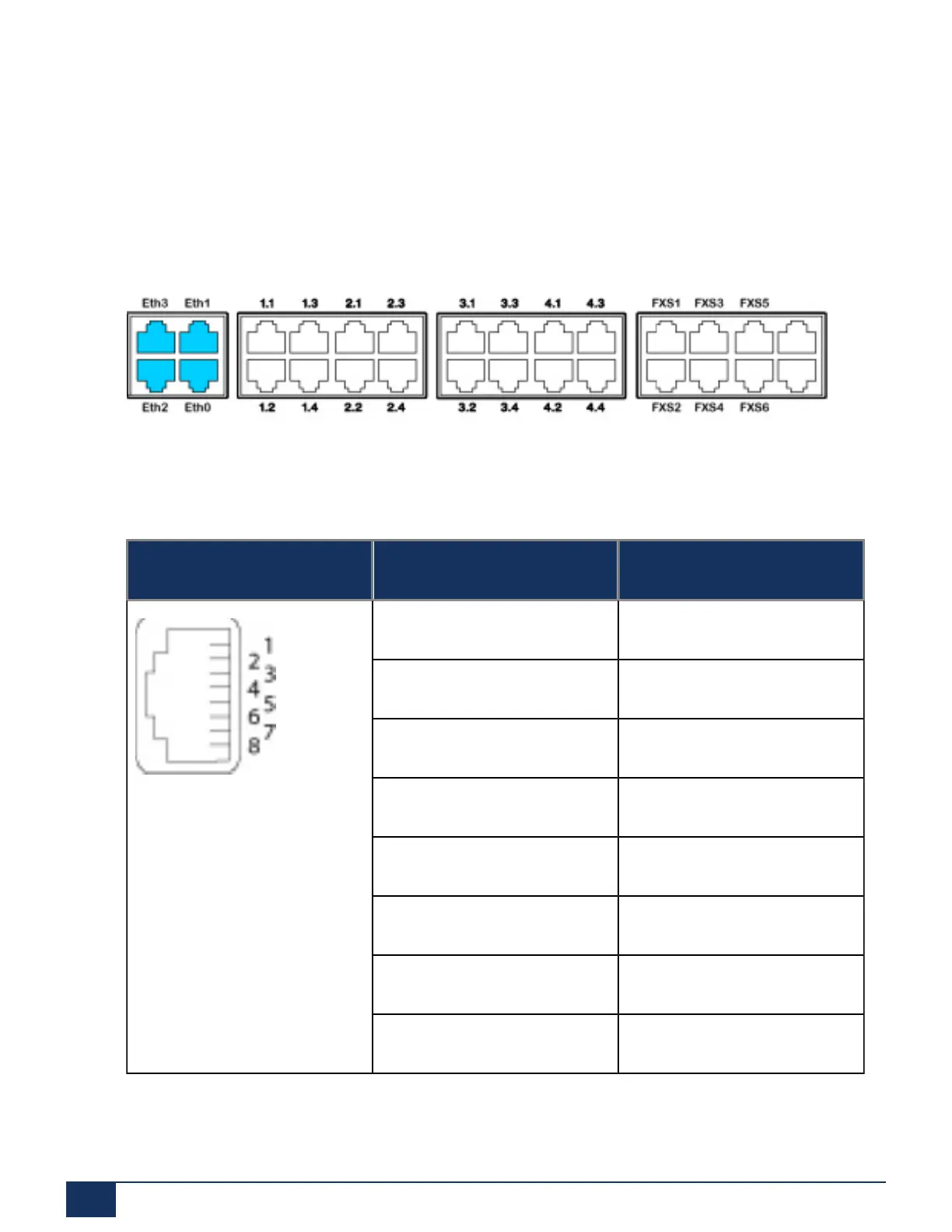

Figure 58: Connection possibilities for Ethernet interfaces
4.7.5.1 Socket
Table 61: Connection of Ethernet interfaces
RJ45 socket Pin Signal
1 TX D1+
2 TX D1 –
3 RX D2+
4 BI D3+
5 BI D3–
6 RX D2–
7 BI D4+
8 BI D4–
Release 7.1
151 System Manual for Mitel SMB Controller
