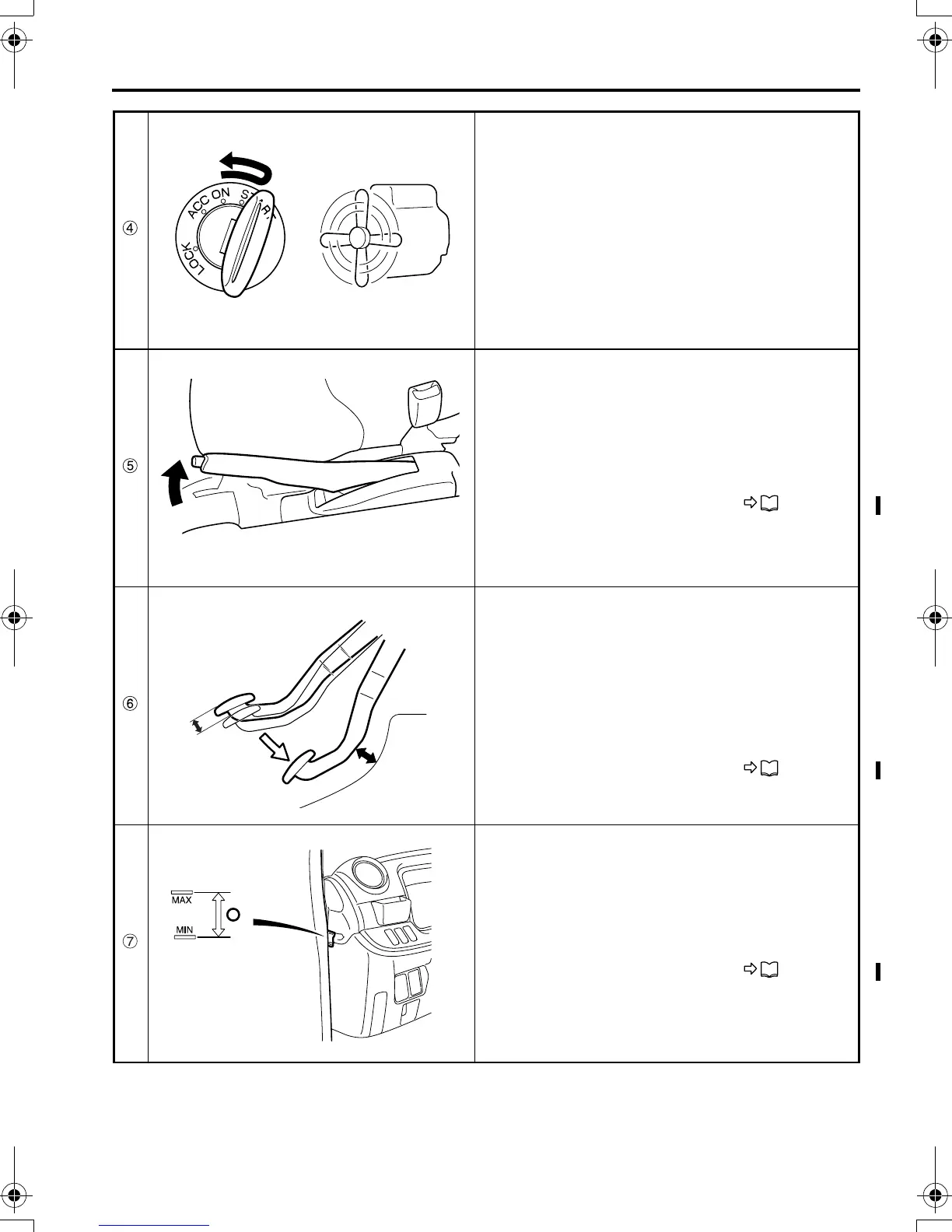

Engine conditions
Check the engine for smooth starting and
quiet running.
Parking brake lever stroke
Check that the parking brake lever stroke is 7
to 9 notches when the lever is pulled with a
force of 294 N (66 lbs., 30 kgf).
P. 12-66
Service brake pedal
Make sure that the brake pedal has 0.1 to 3
mm (0.0039 to 0.12 in.) free play when
pressed by finger.
Check also that when the brake pedal is fully
depressed, there is a gap of 10 mm (0.39 in.)
or more between the pedal and the floor.
P. 12-65
Brake fluid level
Check that the brake fluid level is between the
“MAX” and “MIN” marks on the reservoir tank.
P. 12-38
