12-14 Simple inspection and service

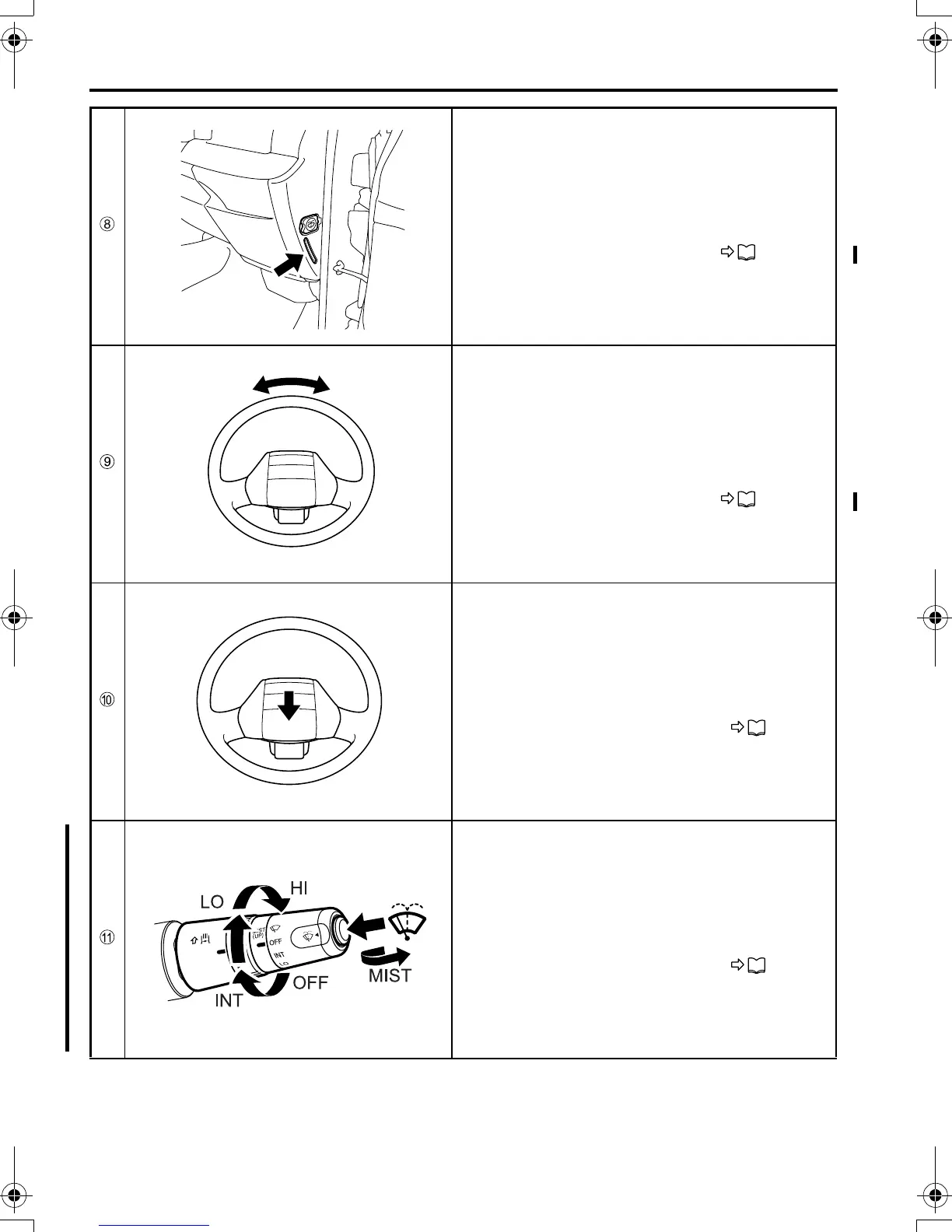

Windshield washer fluid level

Confirm that the windshield washer fluid level

is above the bottom of the inspection window.

P. 12-82

Steering wheel free play

Gently turning the steering wheel, check that

its play is more than 10 mm (0.39 in.) and less

than 20 mm (0.79 in.).

P. 12-63

Horn operation

Press the horn button to check that the horn is

working properly.

P. 5-45

Windshield wiper and washer operation

Check the washer for proper fluid spray direc-

tion and the wipers for normal action.

P. 5-18

Z21402

Z11947

Z11948

Z23262
