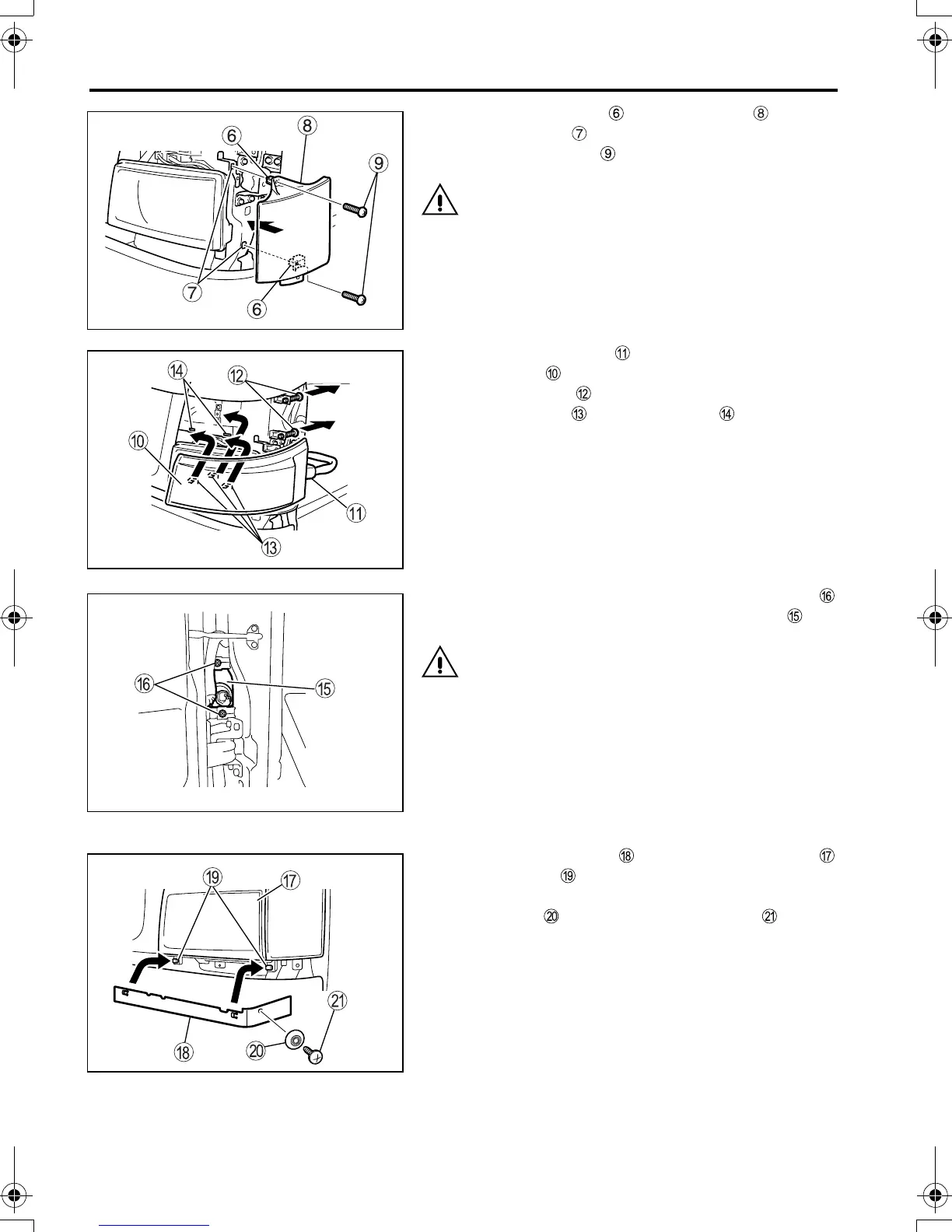

4. Insert the grommet on the garnish into the
grommet hole , fit the garnish in place, and
tighten the screws .
CAUTION
Do not tighten the screw too tightly or the
mounting could get damaged.
5. Install the connector on the front and side turn
signal lamp .
6. Pull out screws .
7. Align the tabs with the holes , then press
the lamp in toward the centerline of the vehicle.
8. Open the door, then tighten the screws
behind the front and side turn signal lamp .
CAUTION
• Press the front and side turn signal lamp
fully in toward the centerline of the vehicle. If
the lamp was not pressed fully into place
and you opened the door, the door could hit
the lamp and damage it.
• Do not tighten the screws too tightly or the
mounting could get damaged.
9. Fit the lamp rubber under the headlamp
onto the tabs by moving it toward the outside
of the vehicle.
10. Fit the rivet , then press in the screw .
