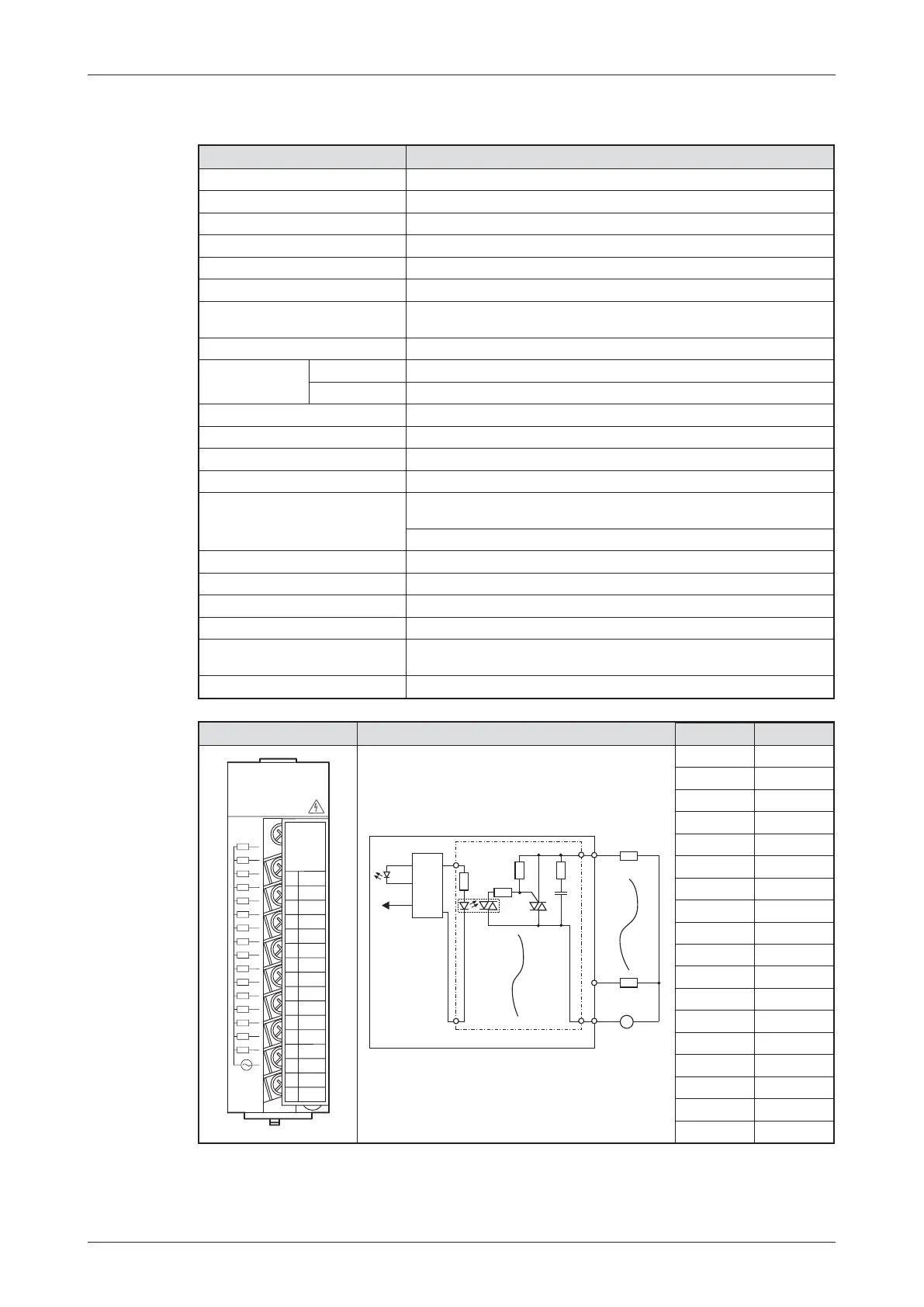

Example for a triac output module
MELSEC System Q Beginners Manual 3 – 27
Digital Input and Output Modules Das MELSEC System Q
Item Specifications
Type of module QY22
Number of output points 16
Isolation method Opto-coupler
Rated switching voltage / current 100–240 V AC (+20/-15 %), 0.6 A per output, 4.8 A per module
Minimum switching load 24 V AC, 100 mA; 100 V AC, 25 mA, 240 V AC, 25 mA
Maximum inrush current 20 A
Leakage current at OFF
3 mA or lower @ 120 V AC, 60 Hz
1.5 mA or lower @ 240 V AC, 60 Hz
Maximum voltage drop at ON 1.5 V
Response time
OFF 씮 ON 0.5 x period + max. 1 ms
ON 씮 OFF 0.5 x period + max. 1 ms
Surge killer CR absorber
Fuse —
Dielectric withstand voltage 2830 V AC rms/3 cycles (altitude: 2000 m)
Insulation resistance 10 M⏲ or more (by insulation resistance tester)
Noise immunity
By noise simulator of 1500 V p-p noise voltage, 1애s noise width and 25 to
60 Hz noise frequency
First transient noise IEC61000-4-4: 1kV
Groups of outputs 1 group with 16 outputs (Common terminal: terminal 17)
Operation indicator 1 LED for each output
External connections 18-point terminal block (M3 x 6 screws)
Applicable wire size 0.3 to 0.75 mm
2
, core: 2.8 mm OD max.
Internal current consumption
(5 V DC)
250 mA (When all outputs are switched ON.)
Weight 0.40 kg
Appearance Circuit Diagram Terminal Signal
1 Y00
2 Y01
3 Y02
4 Y03
5 Y04
6 Y05
7 Y06
8 Y07
9 Y08
10 Y09
11 Y0A
12 Y0B
13 Y0C
14 Y0D
15 Y0E
16 Y0F
17 COM
18 Vacant
1
0
3
5
7
9
B
D
F
2
4
6
8
A
C
E
100VAC
240VAC
0.6A
COM
F
E
D
C
B
A
9
8
7
6
5
4
3
2
1
0
L
L
L
L
L
L
L
L
L
L
L
L
L
L
L
L
QY22
1234567
89ABC D EF
~
LED
1
16
17
100 – 240 V AC
Output module
Internal
Circuit
