Mitutoyo MF Series User Manual

No. 99MBA091A
1-14

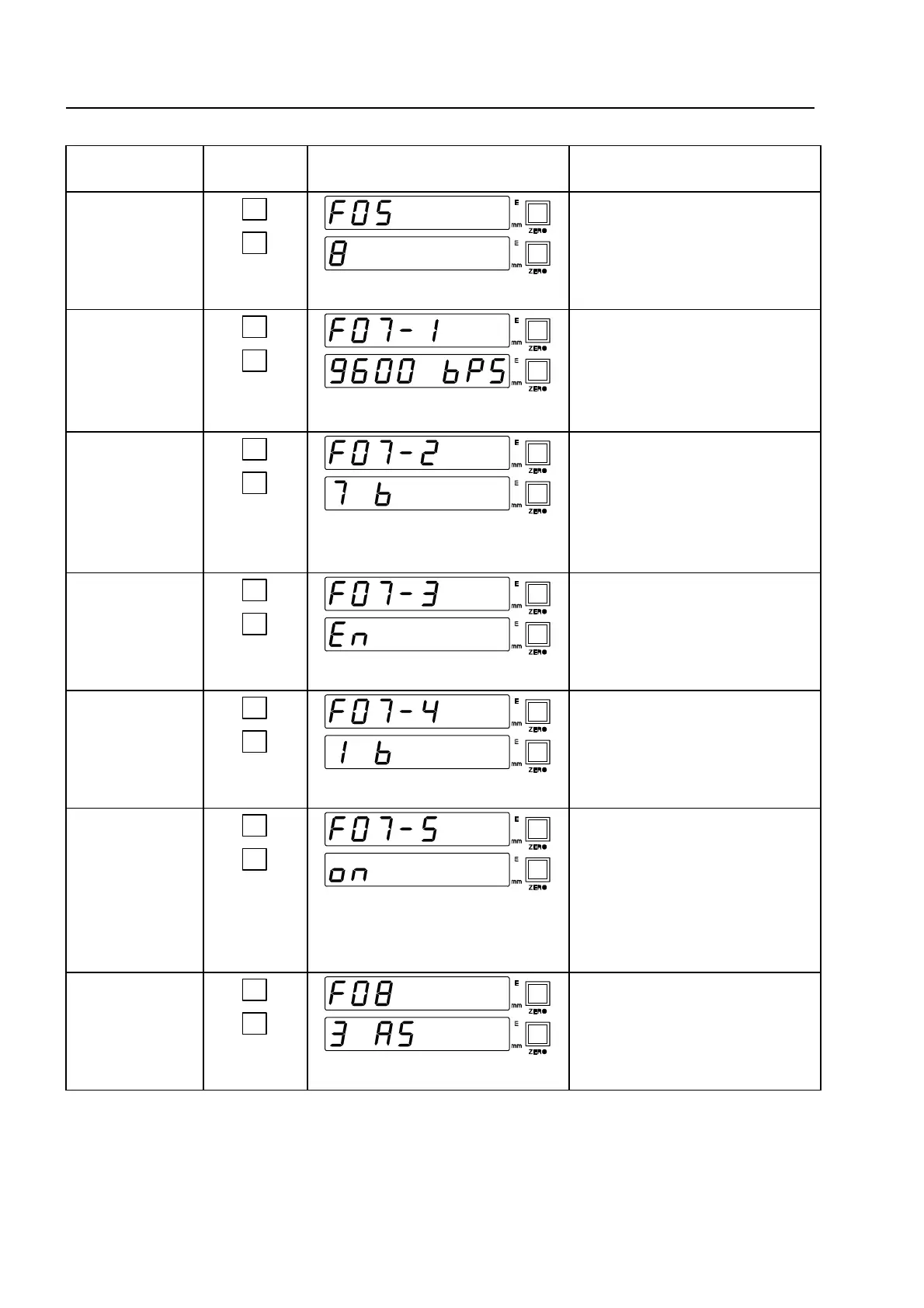

Parameter
setup example
Button
operation
Counter display Operating procedure
Setting the
number of
smoothing times
(Select 8 times of
smoothing)
Ｘ
Ｙ
1.Press the X-axis zero-set
button to select parameter
[F05].
2.Press the Y-axis zero-set
button to select [8].
Setting the
RS-232C
Communication
condition
(Select a baud
rate of 9600bps)
Ｘ
Ｙ
1.Press the X-axis zero-set
button to select parameter
[F07-1].
2.Press the Y-axis zero-set
button to select [9600 bPS].
Setting the
RS-232C
Communication
condition
(Select a data
length of 7 bits)
Ｘ
Ｙ
1.Press the X-axis zero-set
button to select parameter
[F07-2].
2.Press the Y-axis zero-set
button to select [7 b].
Setting the
RS-232C
communication
condition (Select
the even parity)
Ｘ
Ｙ
1.Press the X-axis zero-set
button to select parameter
[F07-3].
2.Press the Y-axis zero-set
button to select [En].
Setting the
RS-232C
Communication
condition (Select
one stop bit)
Ｘ
Ｙ
1.Press the X-axis zero-set
button to select parameter
[F07-4].
2.Press the Y-axis zero-set
button to select [1 b].
Setting the
RS-232C
Communication
condition (Select
the flow control
of enabled
Xon/Xoff)
Ｘ
Ｙ
1.Press the X-axis zero-set
button to select parameter
[F07-5].
2.Press the Y-axis zero-set
button to select [on].
Setting the
number of
output axes
(Select 3 axes)
Ｘ
Ｙ
1.Press the X-axis zero-set
button to select parameter
[F08].
2.Press the Y-axis zero-set
button to select [3 AS].
