Mitutoyo MF Series User Manual

1. Overview
No. 99MBA091A
1-13

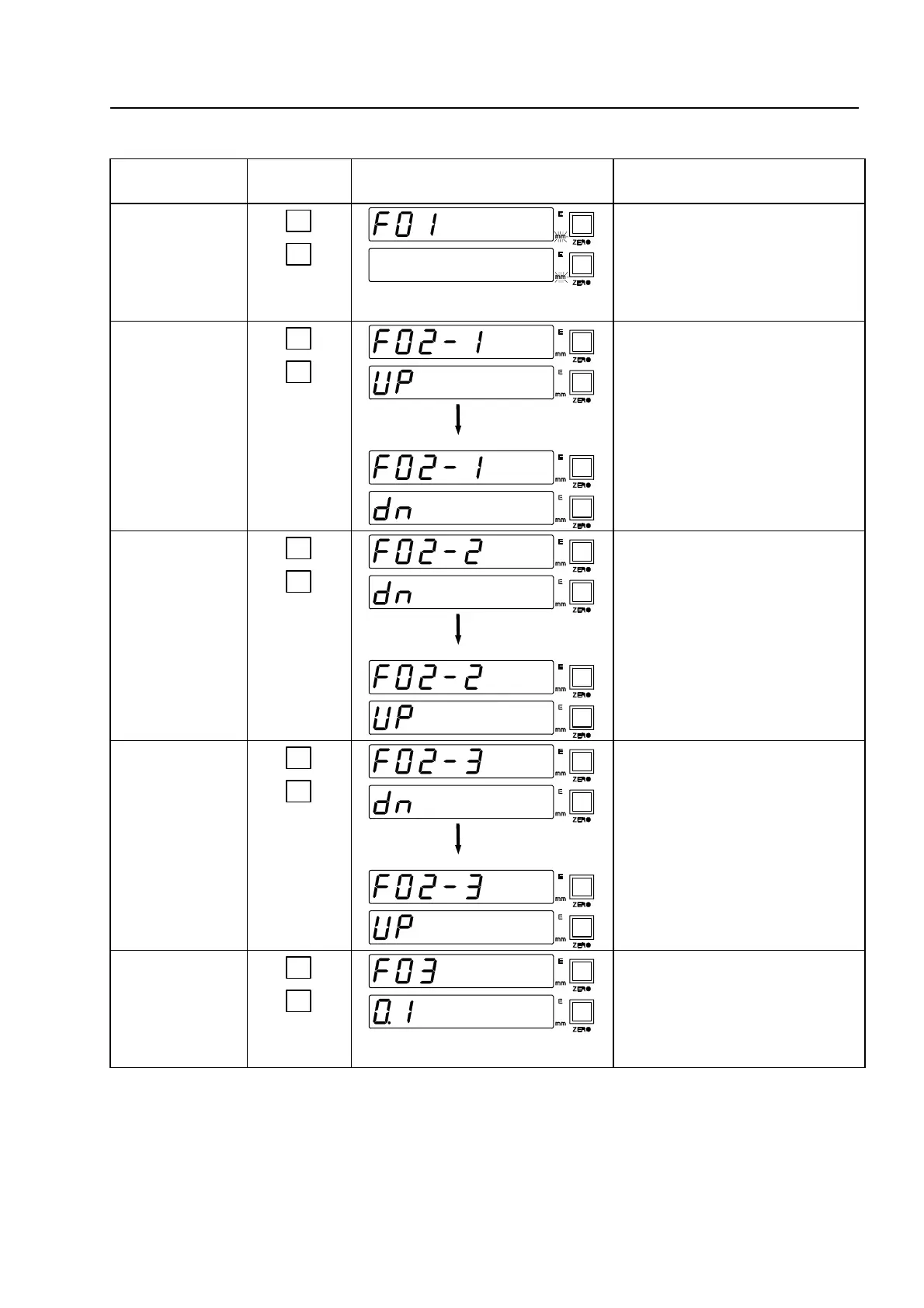

（３）Parameter setting operation examples
Parameter
setup example
Button
operation
Counter display Operating procedure
Setting the
display unit
(Select “mm”)
Ｘ
Ｙ
1.Press the X-axis zero-set
button to select parameter
[F01].
2.Press the Y-axis zero-set
button to select [mm].
Setting the count
direction
(Reverse the
count direction
of X-axis)
Ｘ
Ｙ
1.Press the X-axis zero-set
button to select parameter
[F02-1].
2.Press the Y-axis zero-set
button to select the setting
(here [dn]) unlike the present
setting (here [UP]).
Setting the count
direction
(Reverse the
count direction
of Y-axis)
Ｘ
Ｙ
1.Press the X-axis zero-set
button to select parameter
[F02-2].
2.Press the Y-axis zero-set
button to select the setting
(here [UP]) unlike the present
setting (here [dn]).
Setting the count
direction
(Reverse the
count direction
of Z-axis)
Ｘ
Ｙ
1.Press the X-axis zero-set
button to select parameter
[F02-3].
2.Press the Y-axis zero-set
button to select the setting
(here [UP]) unlike the present
setting (here [dn]).
Setting a
Resolution
(Select “0.1µm”)
Ｘ
Ｙ
1.Press the X-axis zero-set
button to select parameter
[F03].
2.Press the Y-axis zero-set
button to select [0.1].
