6. SPECIFICATIONS

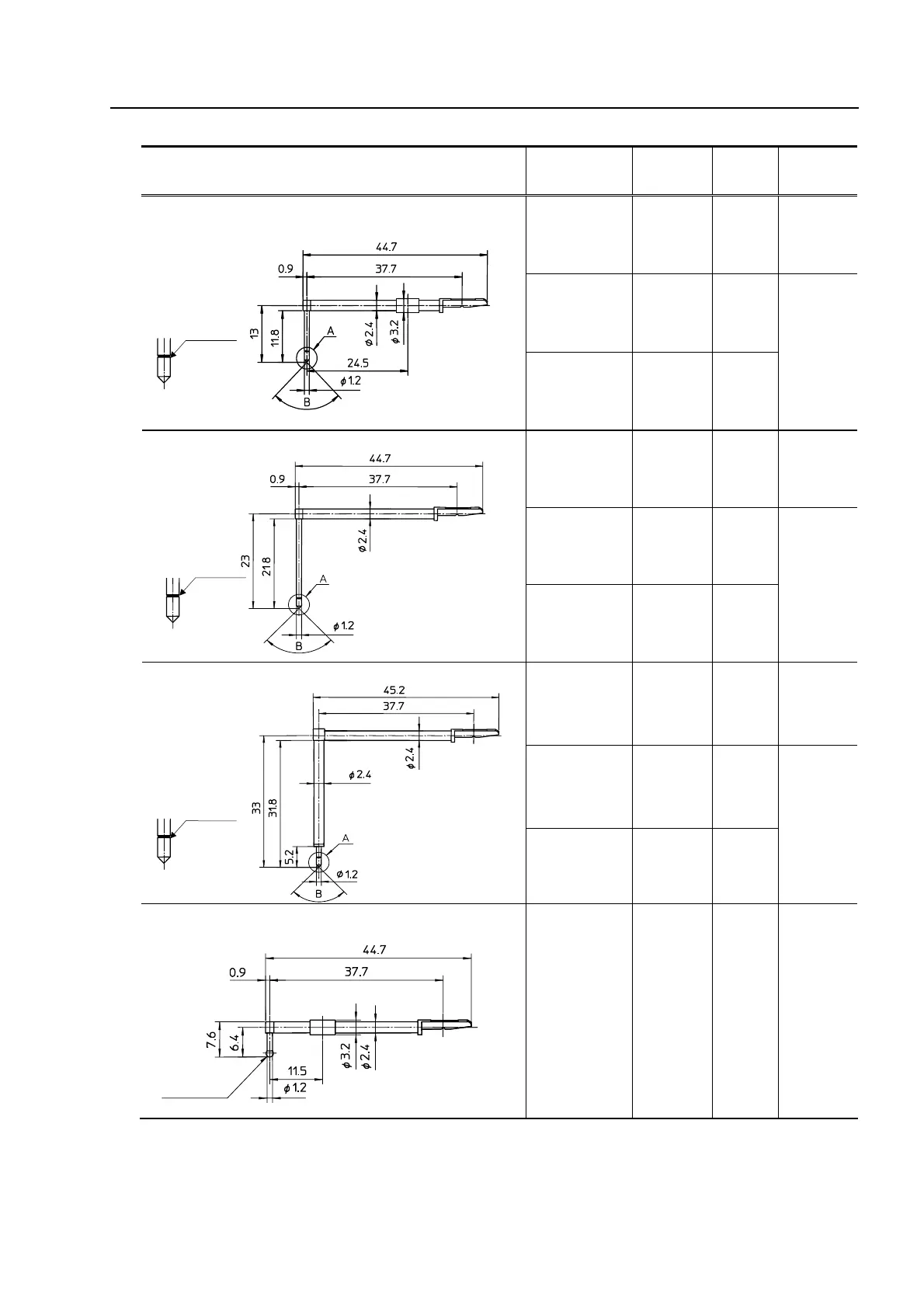

Stylus name Order No.
Tip
radius
ID
color
Tip angle
B
12AAC735 2µm Black 60°
12AAB409 5µm None
Deep-groove 10 stylus
12AAB421 10µm Yellow
90°
*12AAC736 2µm Black 60°
*12AAB408 5µm None
Deep-groove 20 stylus
*12AAB420 10µm Yellow
90°
*12AAC737 2µm Black 60°
*12AAB407 5µm None
Deep-groove 30 stylus
*12AAB419 10µm Yellow
90°
Ball stylus for rolling circle waviness curve
12AAB338 0.8mm -
Color
(ID color)
Detail A
Color
(ID color)
Detail A
Color
(ID color)
Detail A
Ball:Φ1.588
(1/16”)
No. 99MBB187A
