StakMax Microplate Handling System User Guide
5016072 A 23
5. Lift the right side of the reader and place the feet into the two
mounting cups located on the baseplate. Make sure that the
plate reader feet are completely seated in the mounting cups.
See Figure 2-10.

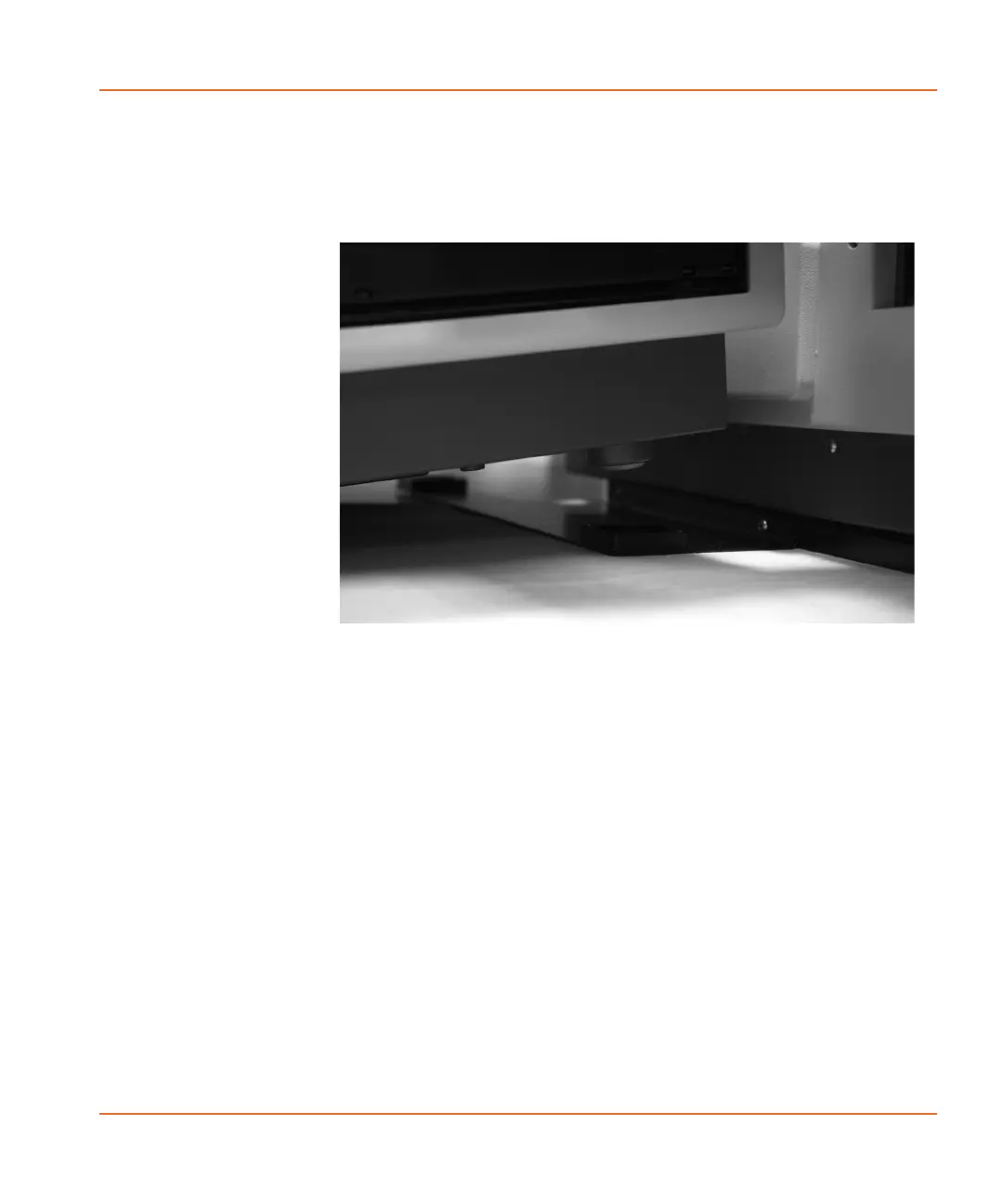

Figure 2-10 Placing the SpectraMax
®
L plate reader onto the
baseplate.
6. Connect the StakMax cables. See Connecting the StakMax
Cables on page 44.
StakMax-UG-5016072A.book Page 23 Friday, October 21, 2011 3:51 PM
