StakMax Microplate Handling System User Guide
5016072 A 25
on the StakMax microplate handler. Loosely attach until both
screws are connected, then tighten the screws. See Figure 2-12.

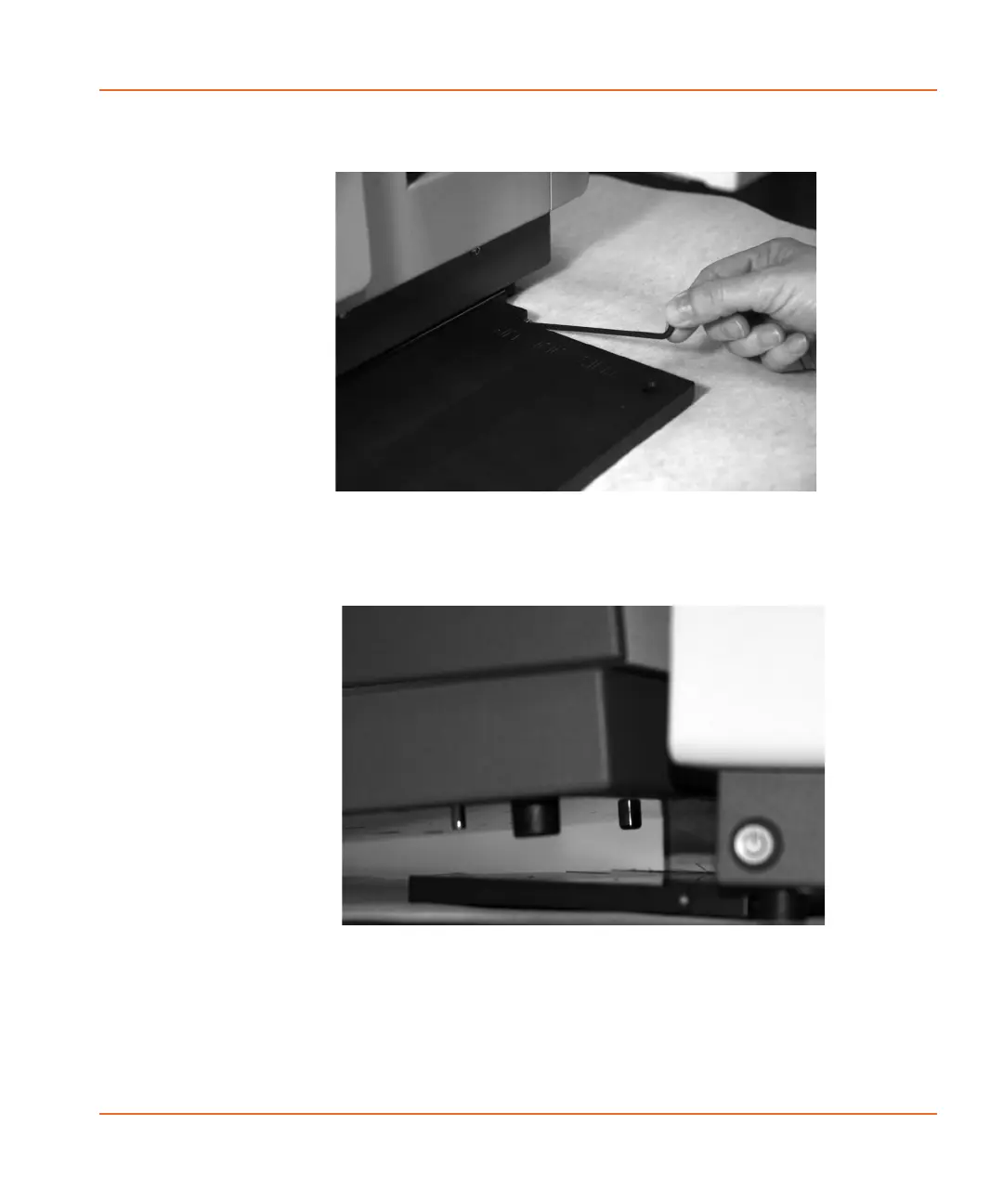

Figure 2-12 Using captive screws to attach the baseplate.
4. Place the washer positioning pins, on the bottom of the washer,
into the corresponding holes in the baseplate. When the washer
is positioned correctly over the baseplate, you can hear and feel
the pins drop in. See Figure 2-13.
Figure 2-13 Placing washer positioning pins into the baseplate.
StakMax-UG-5016072A.book Page 25 Friday, October 21, 2011 3:51 PM
