Installation and Set Up
36 5016072 A
3. Align the threaded holes on the front installation adapter with
the screws on the front of the baseplate. See Figure 2-24.

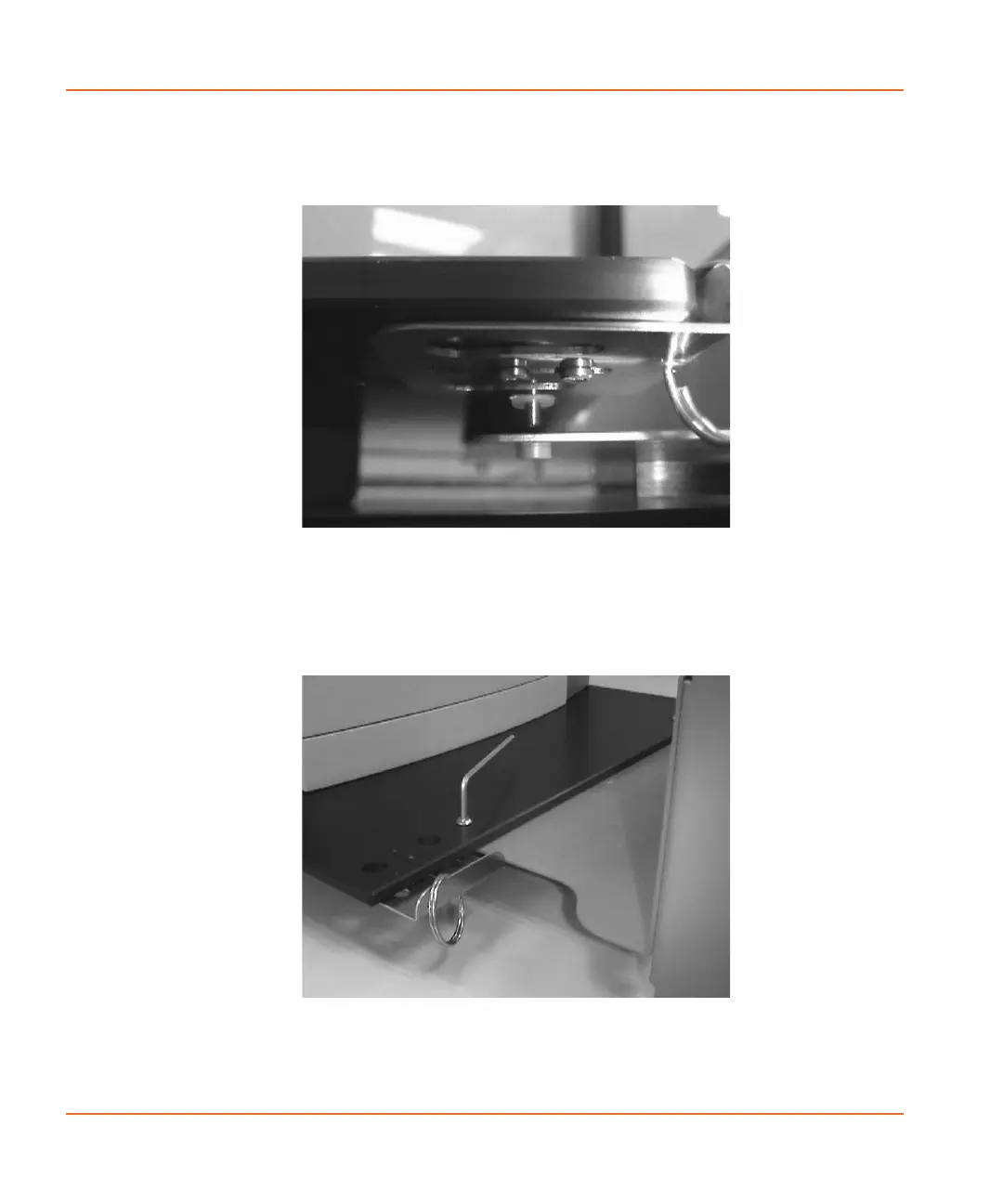

Figure 2-24 Threaded adapter holes aligned with baseplate
screws
4. Use the 2.5 mm hex key screwdriver to tighten the screws. See
Figure 2-25.
Figure 2-25 Tightening the screws
StakMax-UG-5016072A.book Page 36 Friday, October 21, 2011 3:51 PM
