Installation and Set Up
38 5016072 A
To install the plate drawer protection stand
1. Slide the lock bracket out from the baseplate until it stops. See
Figure 2-27.

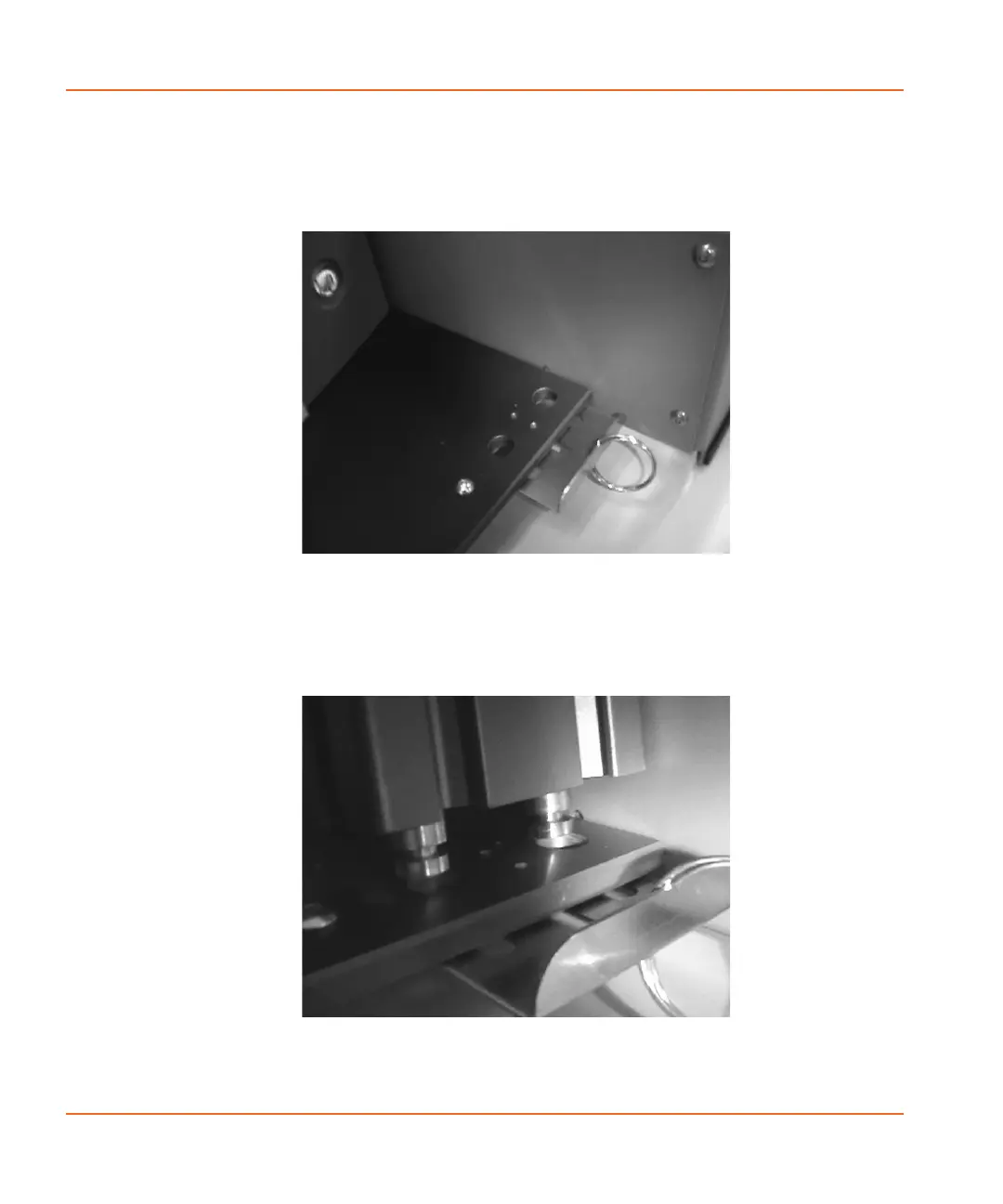

Figure 2-27 Baseplate with lock bracket slid out
2. Place the alignment studs (on the bottom of the plate drawer
protection stand) in the holes on the baseplate. See Figure 2-
28.
Figure 2-28 Alignment Studs positioned in baseplate holes
