Molecular Devices StakMax - Page 82

Operation
82 5016072 A
2. Align the magazine over the stacked plates. See Figure 3-3.

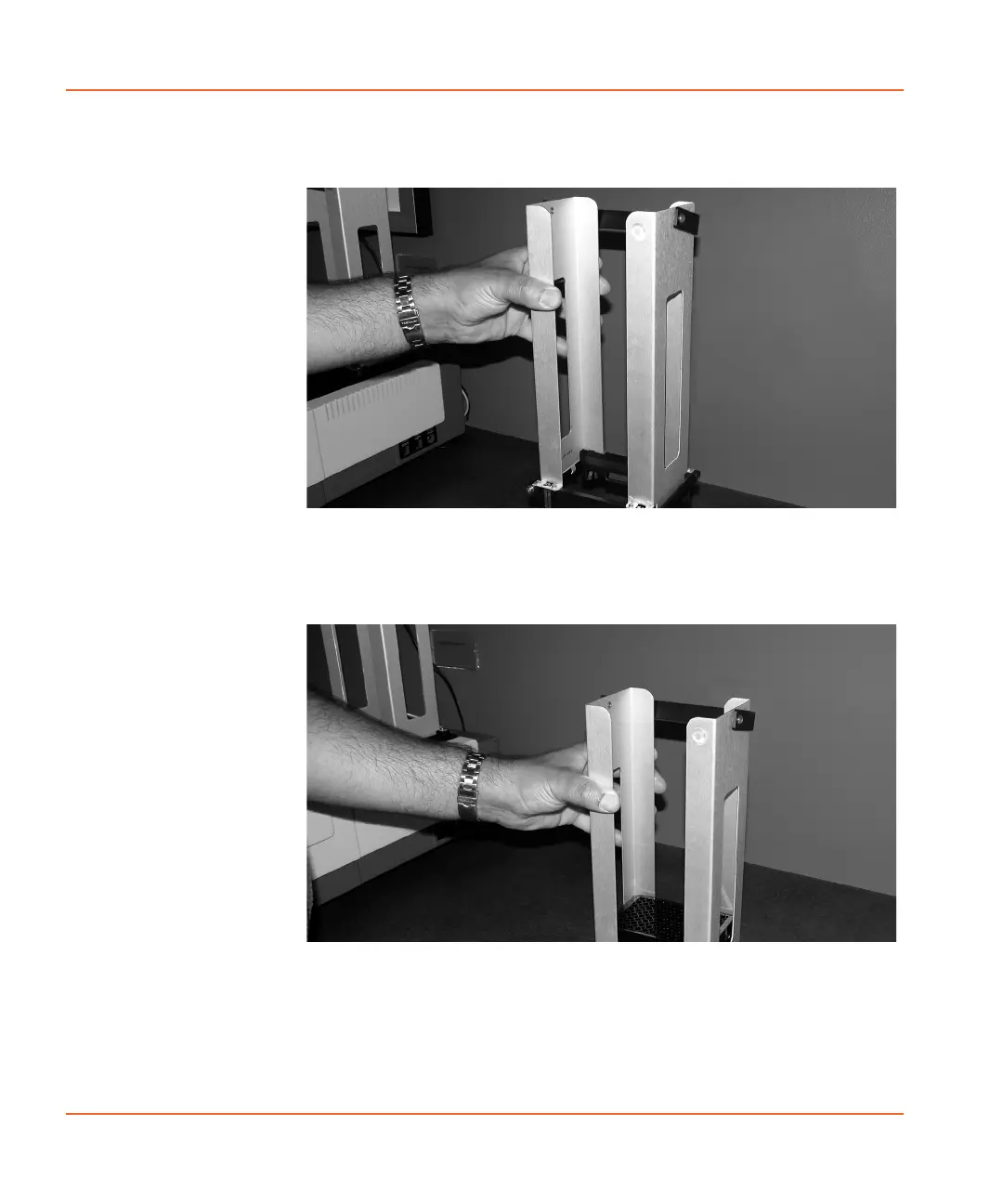

Figure 3-3 Aligning magazine over stacked plates.
3. Carefully lower the magazine over the stacked plates. See
Figure 3-4.
Figure 3-4 Loading the magazine from the bottom.
