Radio Types and Installation Kits
21-62

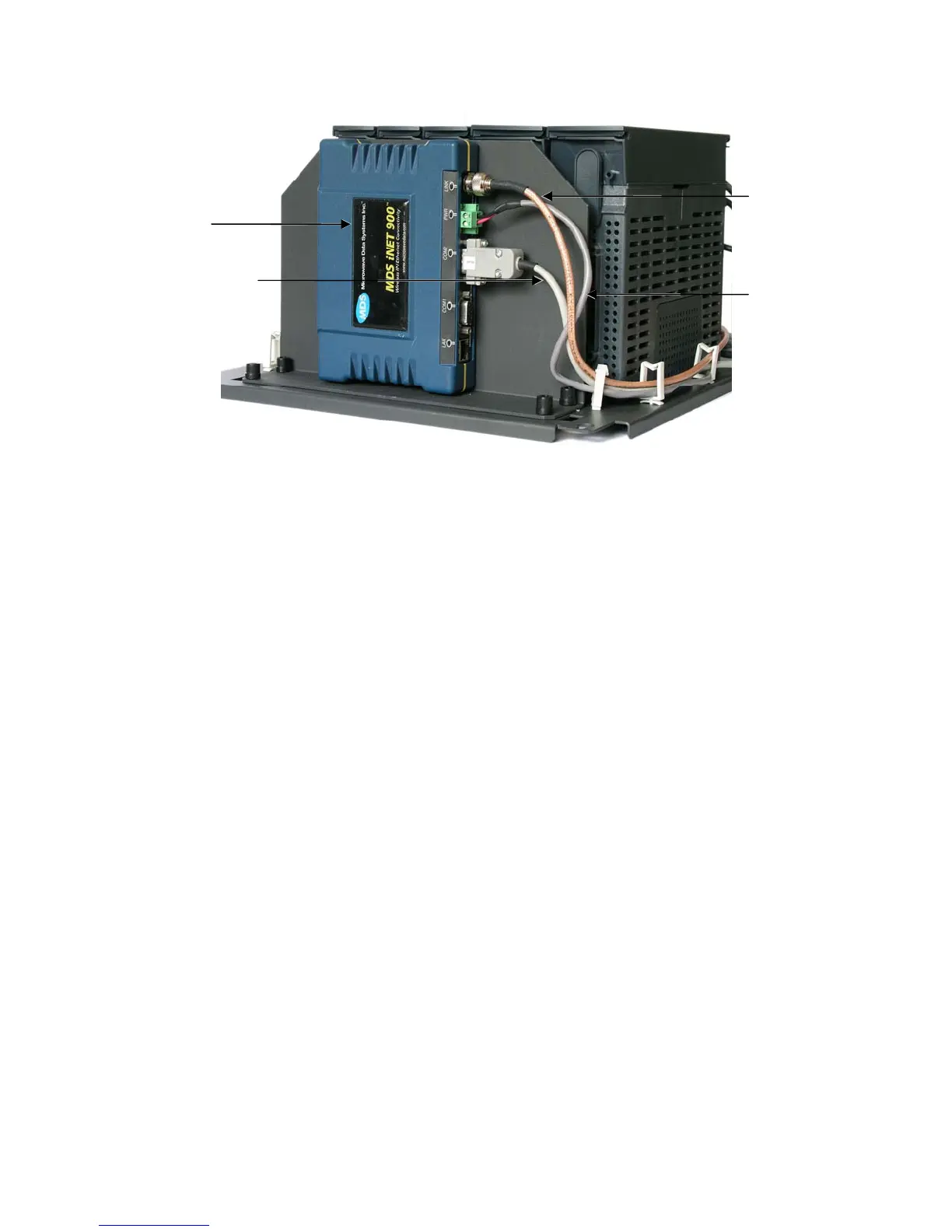

Figure 21-54 iNET 900 Radio Modem Installed on ACE3600 Chassis – Cable Connections
Configuring the iNET 900 to Work with ACE3600
The iNET 900 radio modem can be configured to work with ACE3600 RTUs in several ways
as described below. Configurations 1-3 below represent External Modem configurations.
Configurations 4-7 represent MDLC over IP configurations.
With iNET radios (firmware version ≥ V4.4.0) any remote can communicate with any other
remote. An MDLC network (with zones) is no longer needed. The iNET should be set in
Multipoint to Multipoint topology, in order to enable communication between RTUs with no
zones.
Notes:
ï‚· It is recommended to enable flow control on the RS232 serial port.
ï‚· An RTU configured for MDLC over IP cannot communicate with an RTU configured
for External Modem over the iNET network. If both exist, they should be allocated
different Link IDs.
Signal Cable
(
FKN8512A)
Antenna
Cable
(
FKN8511A)
Power
Cable
(
FKN8508A
)
Radio
