Motorola iDEN Site Controller User Manual

Chapter 9 Controller Gen 3 Site Controller System Manual
Controller
9-2 68P80801E30-A 5/1/2002
Controller
The Site Controller supports the following I/O:
■ One 10 / 100BaseT Ethernet port
■ Three 10Base2 Ethernet ports
■ Four T1 / E1 connections
■ One X.21 connection
■ One IEEE 1284 parallel port (for connecting to the EAS/EAS2)
■ One front panel RS232 MMI
■ Three time / frequency reference outputs
■ GPS
■ RJ45 Serial
■ RJ45 Redundancy
iSC401
042202JNM
EqpMonNet
1
EqpMonNet
2
EqpMonNet
3
EqpMonNet
4
Net Eqp
Net Eqp
1234
GPS
Active
Power
LOS/
Yellow
AIS
FE/CRC
BPV/PD
Net
Local
Mon
Abort/
Reset
Sel/
Loop
Service Access
DCE
Power
OOF
SITE CONTROLLER

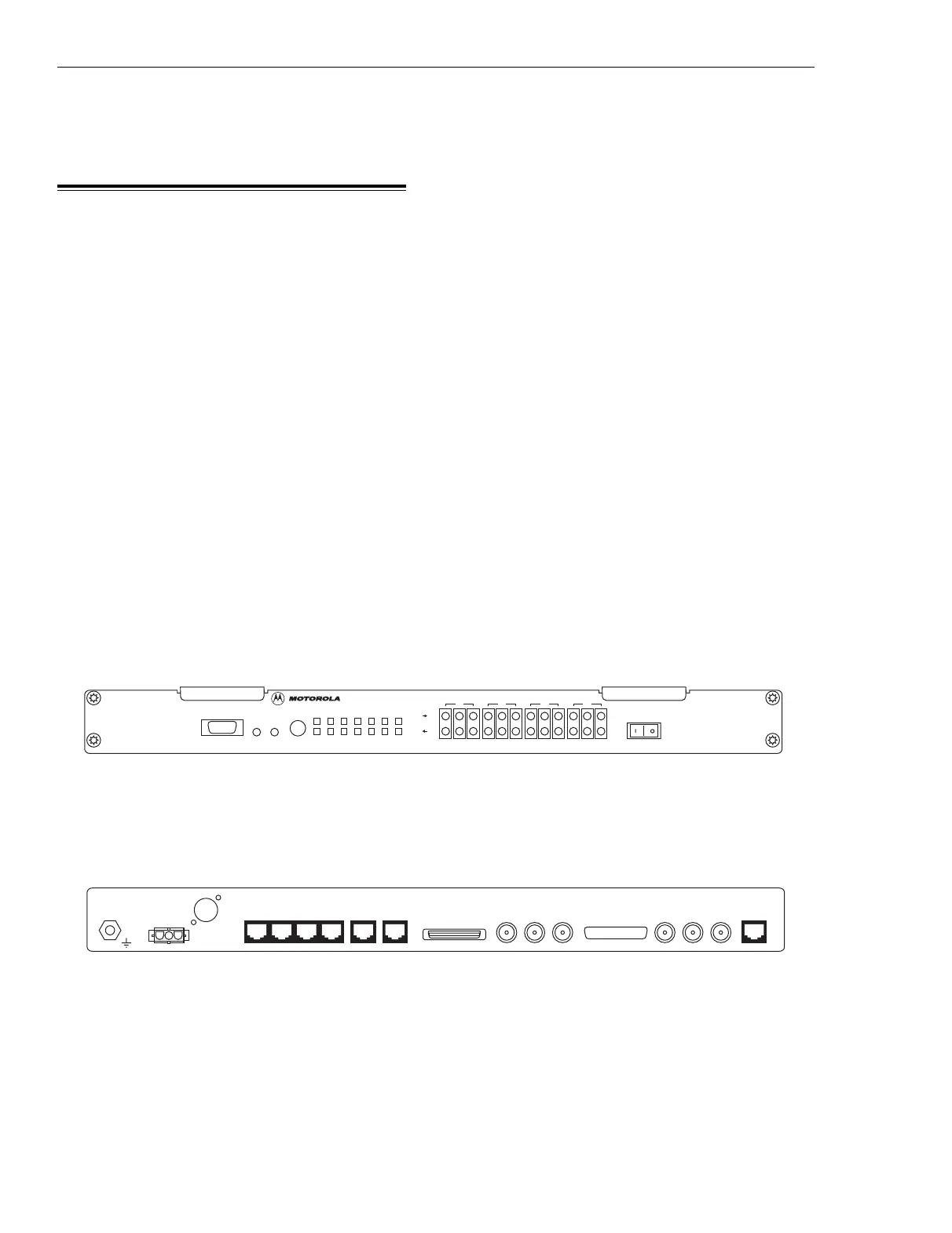

Figure 9-1 Controller (front view)
iSC400
102600JNM
10B2-1123 10/100B-T10B2-210B2-3
X.21
SITE REF OUT
PARALLELSERIALREDUND4321
T1/E1
GPS
-48V RTN
BAT
Figure 9-2 Controller (rear view)
