Chapter 9 Controller Gen 3 Site Controller System Manual
Controller
9-6 68P80801E30-A 5/1/2002
Table 9-4 Rear Connectors
Connector Name Connector Type Connects to...
Battery MATE-N-LOK Center pin to -48V battery; right pin
to battery return
GPS N GPS antenna
T1 / E1 RJ48C Port 1 to T1/E1 span; port 2 is cabled
but reserved for future use; ports 3
and 4 are reserved for future use.
Receive: Pins 1 & 2
Transmit: Pins 4 & 5
Redundancy RJ45 Redundant site controller
Serial RJ45 No connection
Parallel IEEE1284C EAS/EAS2 parallel port
Site Reference Output BNC BR reference inputs
X.21 DB15 No connection
10Base2 Ethernet BNC Redundant site controller and the
BR’s 10Base2 ports; each 10Base2
port is terminated with two 50-ohm
loads. Refer to Chapter 4 for cabinet
to cabinet cabling details.
10 / 100BaseT Ethernet RJ45 Redundant site controller
iSC400
102600JNM
10B2-1123 10/100B-T10B2-210B2-3
X.21
SITE REF OUT
PARALLELSERIALREDUND4321
T1/E1
GPS
-48V RTN
BAT

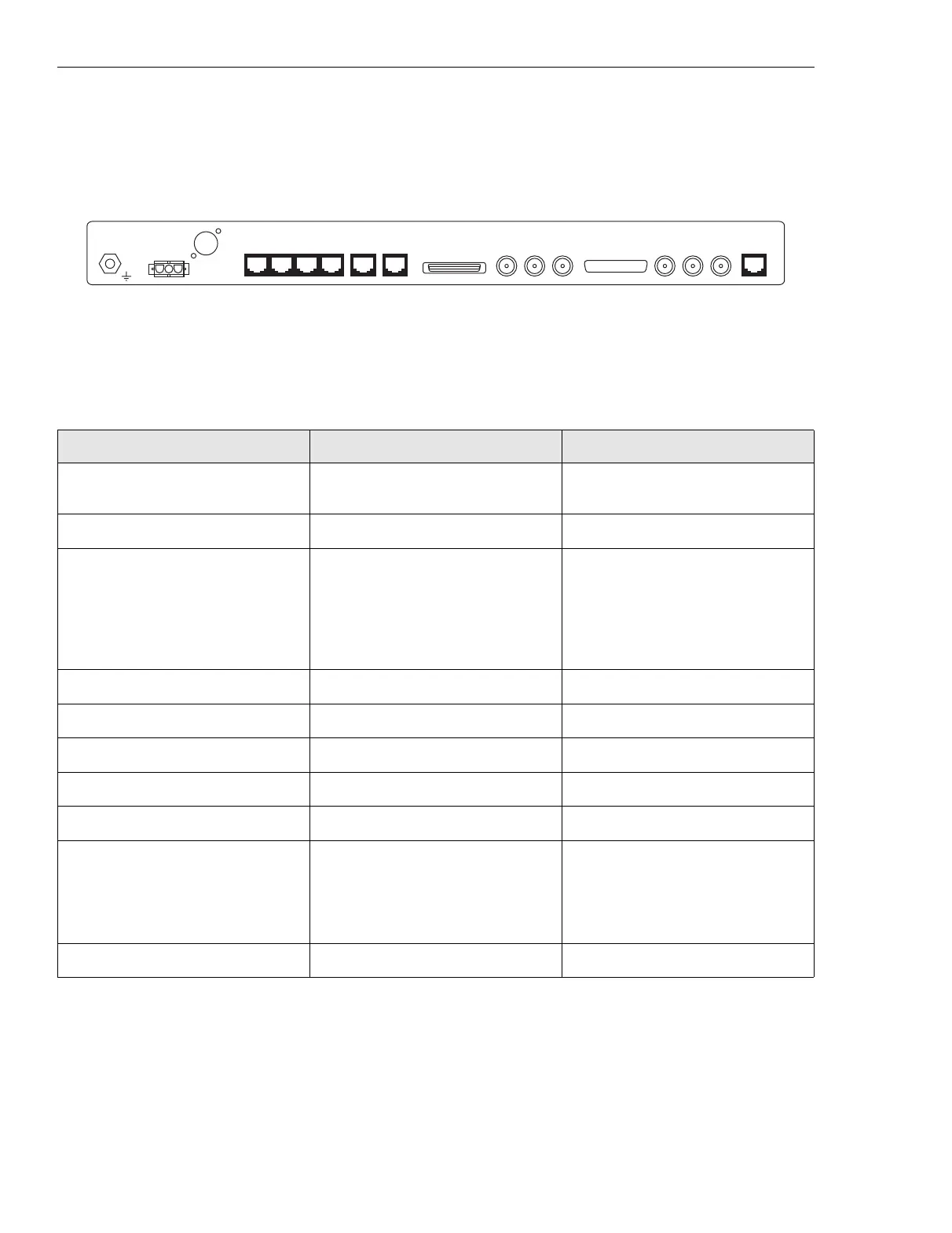

Figure 9-4 Controller rear connectors
