TelnetCE Configuration 5 - 35
Connect DS3508-ER Scanner to USB Port of the VC70 (HID)
To connect DS3508-ER scanner to the VC70:
1. Connect the USB scanner cable (PN 25-159548-01) to the scanner.
2. Connect the USB scanner cable to USB 1 or USB 2 connector of the VC70.

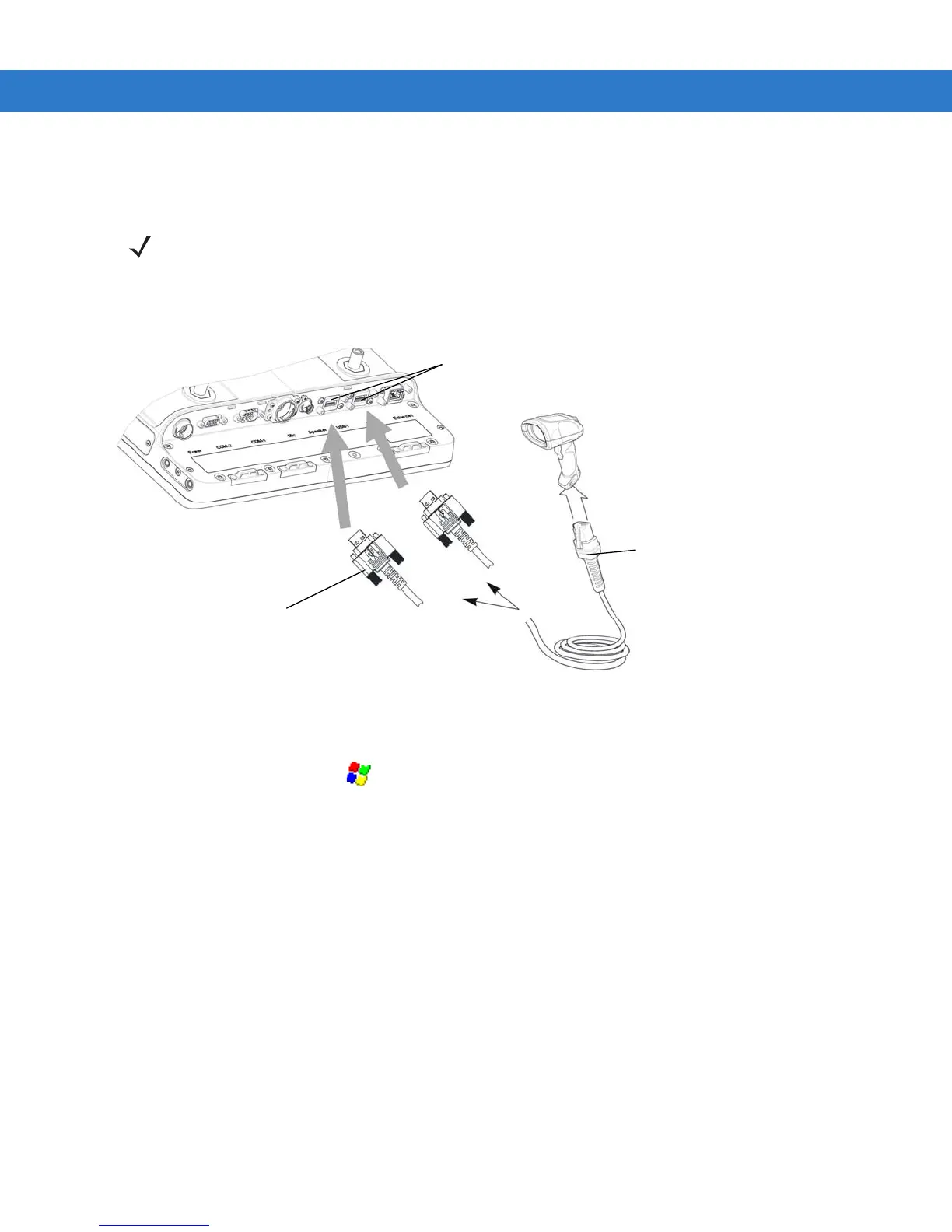

Figure 5-47
Connecting DS3508-ER Serial Scanner to a USB Port
3. Open Microsoft WordPad and scan the following barcode. Verify a correct reading.
4. From the VC70 Desktop, Tap > Programs > TelnetCE to start TelnetCE.
5. TelnetCE Client launches on the VC70 and displays the Scanner Selection notification. Tap No; a black screen
with “
No host connection” indication shows.
6. On the black screen, tap Options > Connect Session 1.
7. TelnetCE Client shows the following notification: “No Host Profiles have been configured. Would you like to add a
Host Profile?
”. Tap Yes to continue.
8. Enter the following Host Profile information:
•
Alias: Indicates the name of the host profile. Usually, this is the name or alias of the host system with which
the VC70 creates a Telnet session.
•
Emulation: Indicates the type of emulation that the host system uses. Available Options: <IBM-5251-11>
<IBM-3278-2> <IBM-3279-2> <IBM-3279-2E> <VT100> <VT220> <HP>. Default: <IBM-5251-11>
•
Address: Indicates the IP address or host name of the host system. Possible Values: Valid IP address of the
running terminal emulation or host name.
•
Port: Indicates the TCP port on which the host system is listening for Telnet connections. Possible Values: 0 -
65535. Default: 23 for Telnet server.
NOTE Refer to the scanner Product Reference Guide for information on configuring the scanner.
USB Connector
USB Cable
Cable PN: 25-159548-01.
Coiled, 12 feet.
To Next Page
