2 - 18 VC70 Vehicle Computer Product Reference Guide

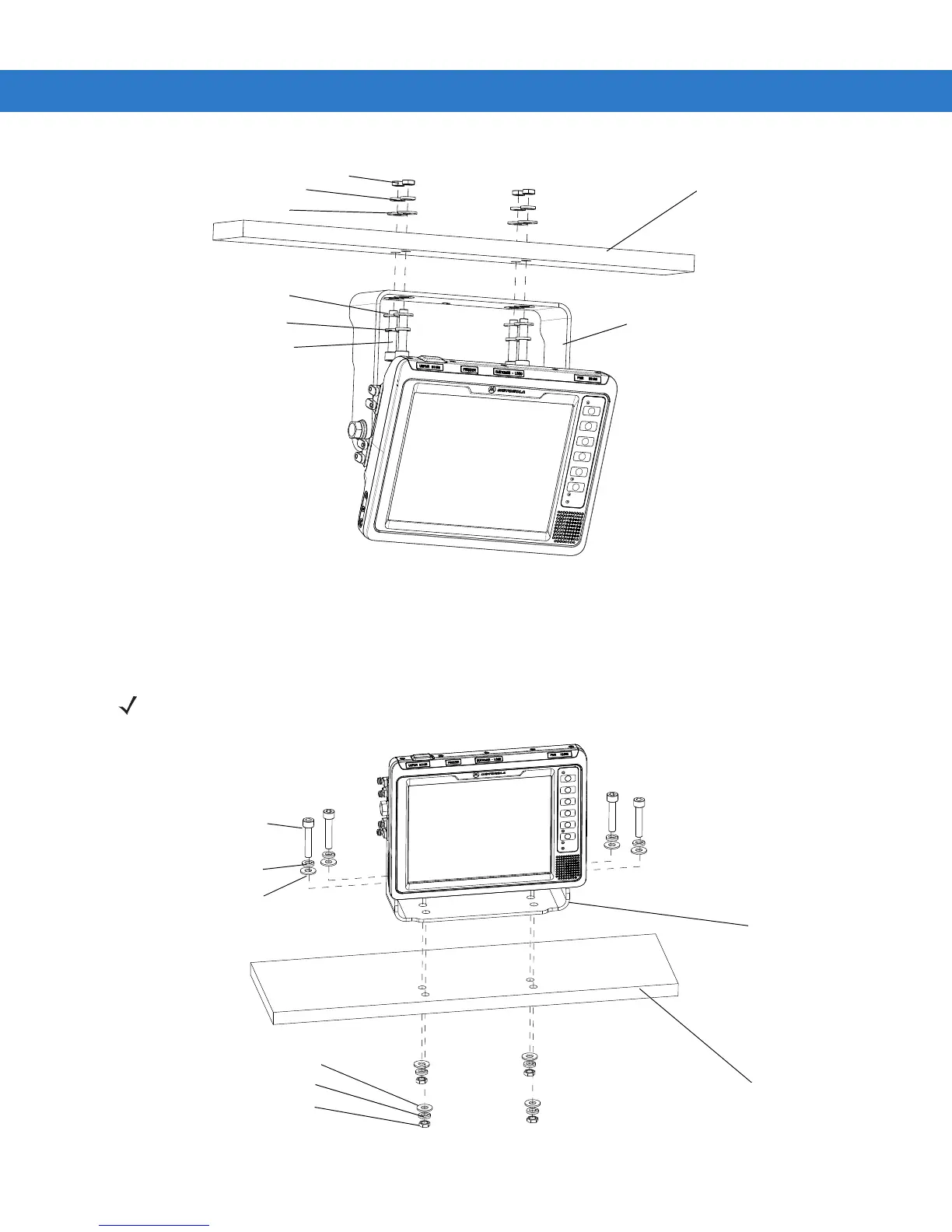

Figure 2-16
Mounting on Transverse Overhead Beams
Mounting on a Dashboard or Horizontal Surface Example
The diagram below illustrates a typical installation where the vehicle computer is mounted on a dashboard or
horizontal flat surface.
Figure 2-17
Mounting on a Vehicle Dashboard
Customer Supplied
Mounting Plate
Welded to Beams
Nuts
Flat Washers
Allen Head Screws
U-mount
Lock Washers
Lock Washers
Flat Washers
NOTE If mounting to a thin surface, a reinforcing plate maybe required.
Nuts
Lock Washers
Allen Head Screws
U-mount
Mounting Surface
Flat Washers
Lock Washers
Flat Washers
