2 - 12 VC70 Vehicle Computer Product Reference Guide
RAM Mount Installation
The RAM Double Socket Arm Mount allows the VC70 to be easily adjusted to most comfortable location. A single
Adjustment Knob enables simultaneous adjustment of both upper and lower ball joints. The mount affixes to the
forklift cage or other strong surface by the supplied hardware kit and bolts provided by the customer (Search for
VC70 on http://www.rammount.com
).

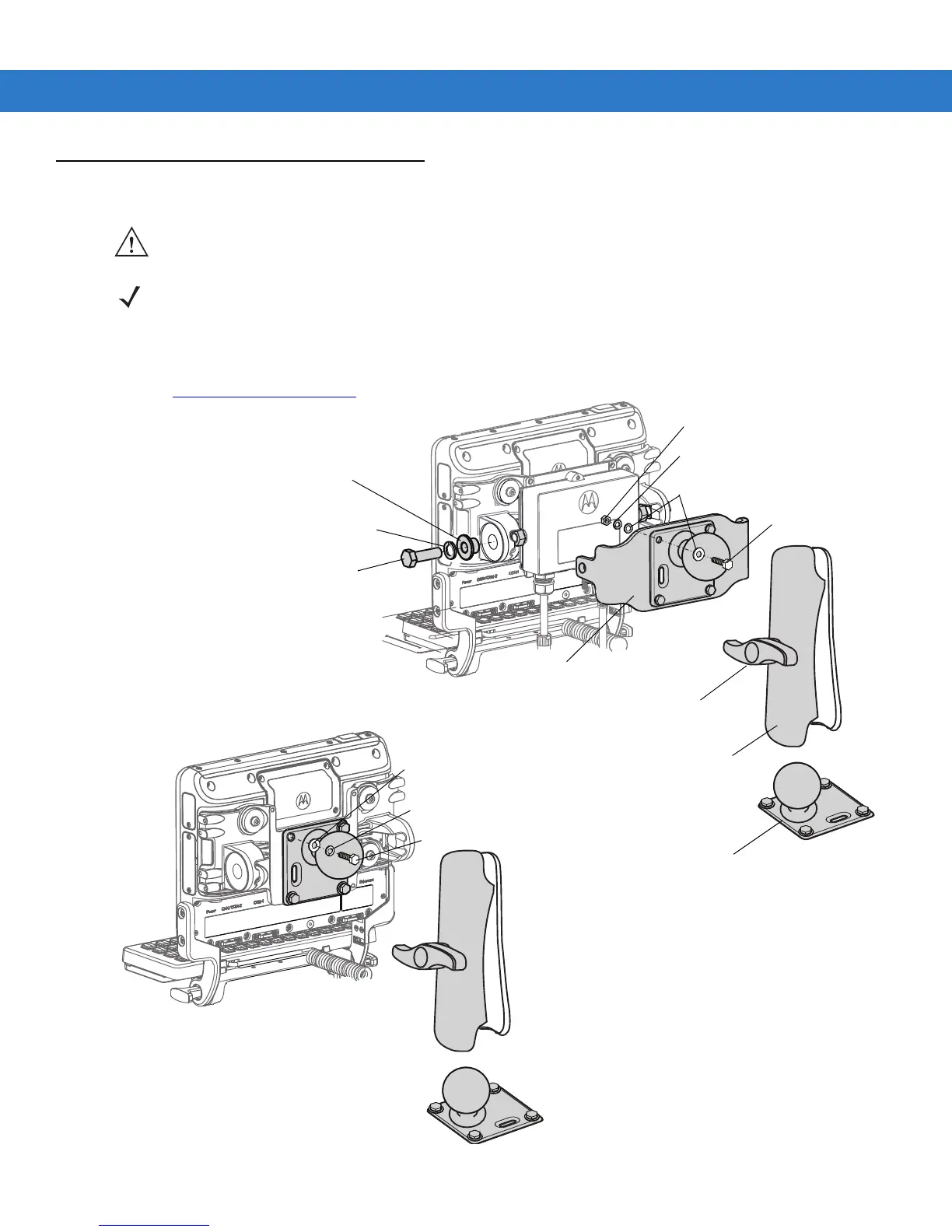

Figure 2-9
RAM Double Socket Arm Mount
CAUTION If mounting to a thin surface such as drywall or plywood, a reinforcing plate is required.
NOTE For RAM Mounts, refer to Accessories on page 1-4.
Bolt
Bridge
Lock Washers
Flat Washers
Double Socket
Arm Mount
Lock Washers
Nut
Bushing
Adjustment Knob
Base-mount
Lock Washer
Flat Washers
M6 X 22 Bolt
M6 X 22 Bolt
