Installation 2 - 21
Figure 2-21
USB Connectors
Installing the Optional VC5090 Keyboard on the VC70
You can install the VC5090 keyboard on the VC70 using the keyboard adapter kit (PN KT-VC50KYBD-ADPT-R).
The kit contains the following items:
•
Two spacers with screws and washers
•
Adapter cable
1. Attach the keyboard spacers to both sides of the VC70 using 2 M5x14mm torx head screws with captive
washers for each spacer. Tork the screws to 20 + 5% kgf-cm (17 + 5% lbs-in).

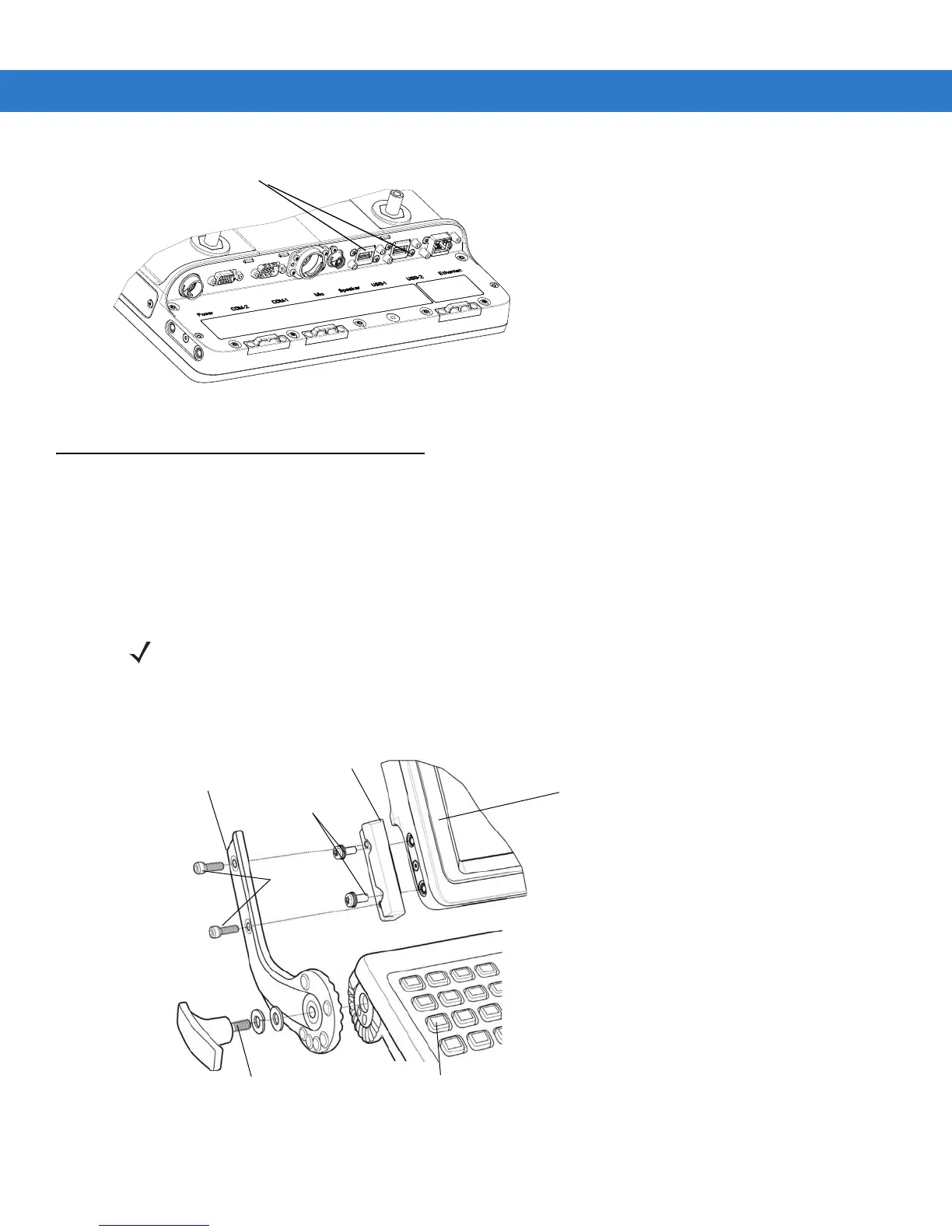

Figure 2-22
Installing the VC5090 Keyboard on the VC70
USB Connector
NOTE When using the VC5090 keyboards, the integrated keyboard heater is not supported.
For optional VC5090 keyboards, refer to Accessories on page 1-4.
VC70
VC70 Spacer
VC5090 Keyboard
Left Hand
Bracket
Torx Head
Screws
Locking Knob with Flat and
Lock Washers
Cap
Screws
