NPort Server User’s Manual
C-2
Asynchronous Port Pinouts

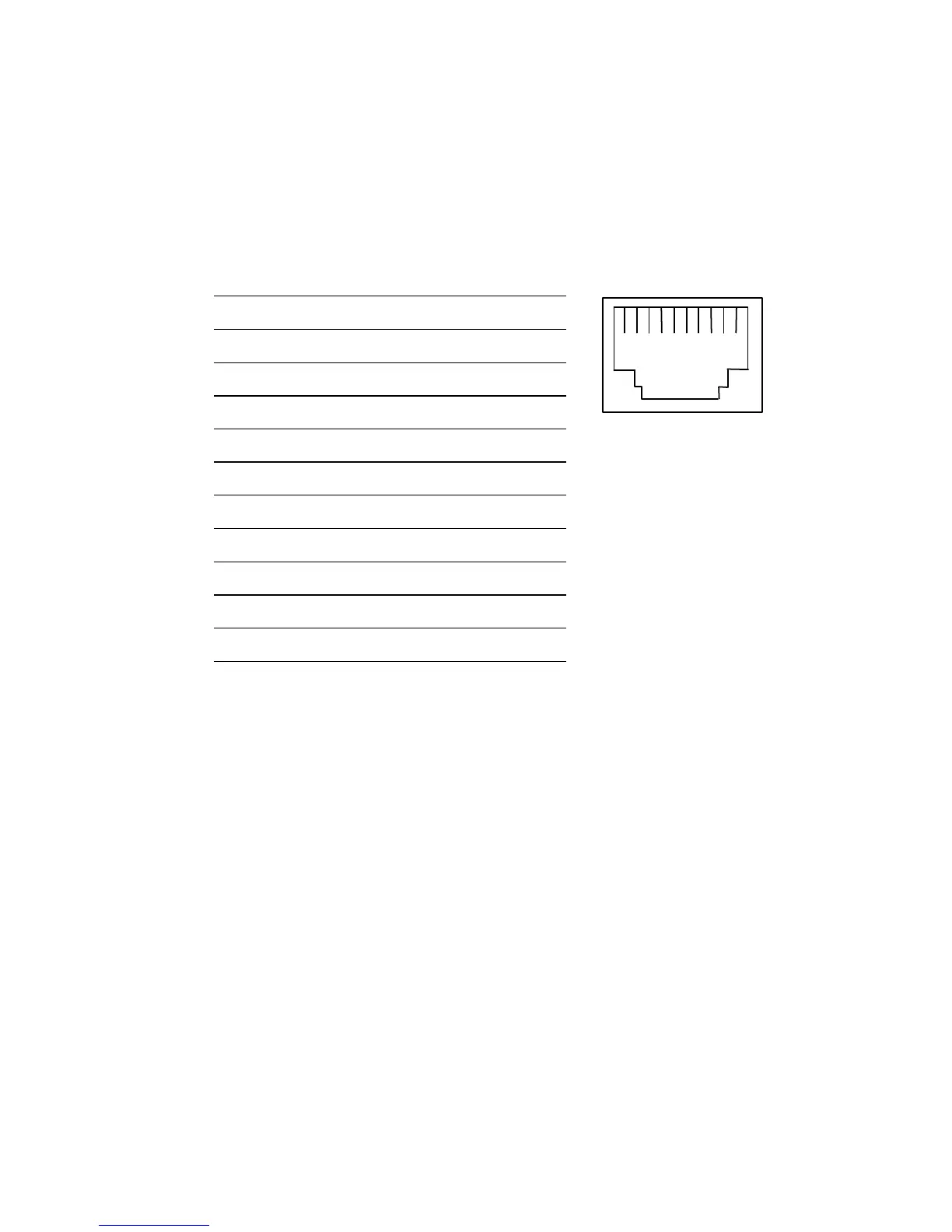

Table C-2 lists the pinouts for the asynchronous port on NPort Server.
10 Pin Description
1 DCD
2 DSR
3 RTS
4 GND
5 TxD
6 RxD
7 GND
8 CTS
9 DTR
10 ----
1 10
Async Port RJ45
