Getting Started
2-9
10BaseT Connection
You must supply an Ethernet hub and a RJ-45 to RJ-45 cable for this connection. Your
Windows NT system must on the same network too.

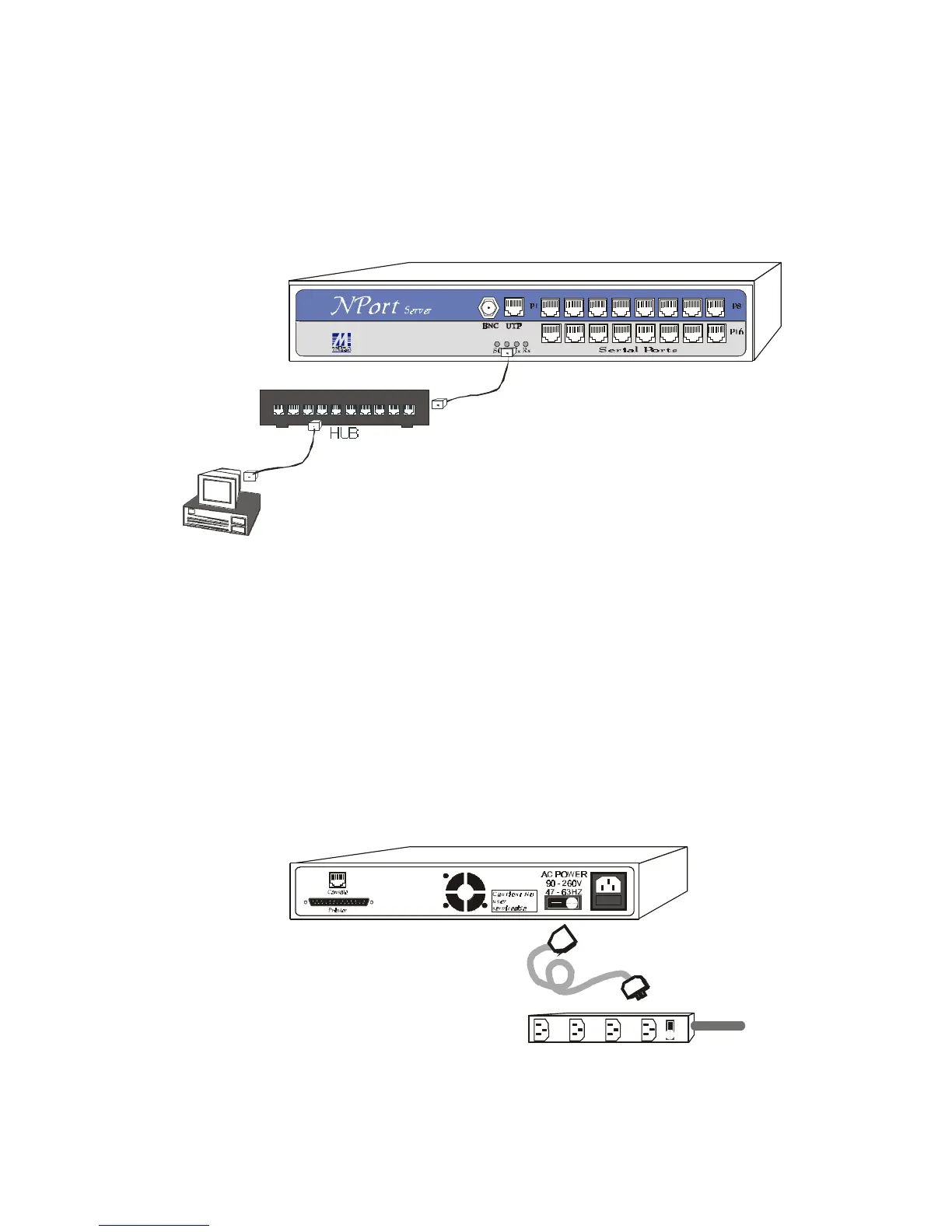

Figure 2-7. 10BaseT(UTP) connection from NPort Server to your computer
through a HUB.
Connecting the Power
After putting NPort Server to your network, you may take the following steps to
connect the power to your NPort Server.
The power supply inside the NPort Server is designed to support 90V-260V. Thus,
you may use the NPort Server no matter what your nation power supply is.
. Note: Network is strongly recommended to be connected before powering on the
server.
