Moxa Technologies NPort User Manual

Cable Pinouts
C-3

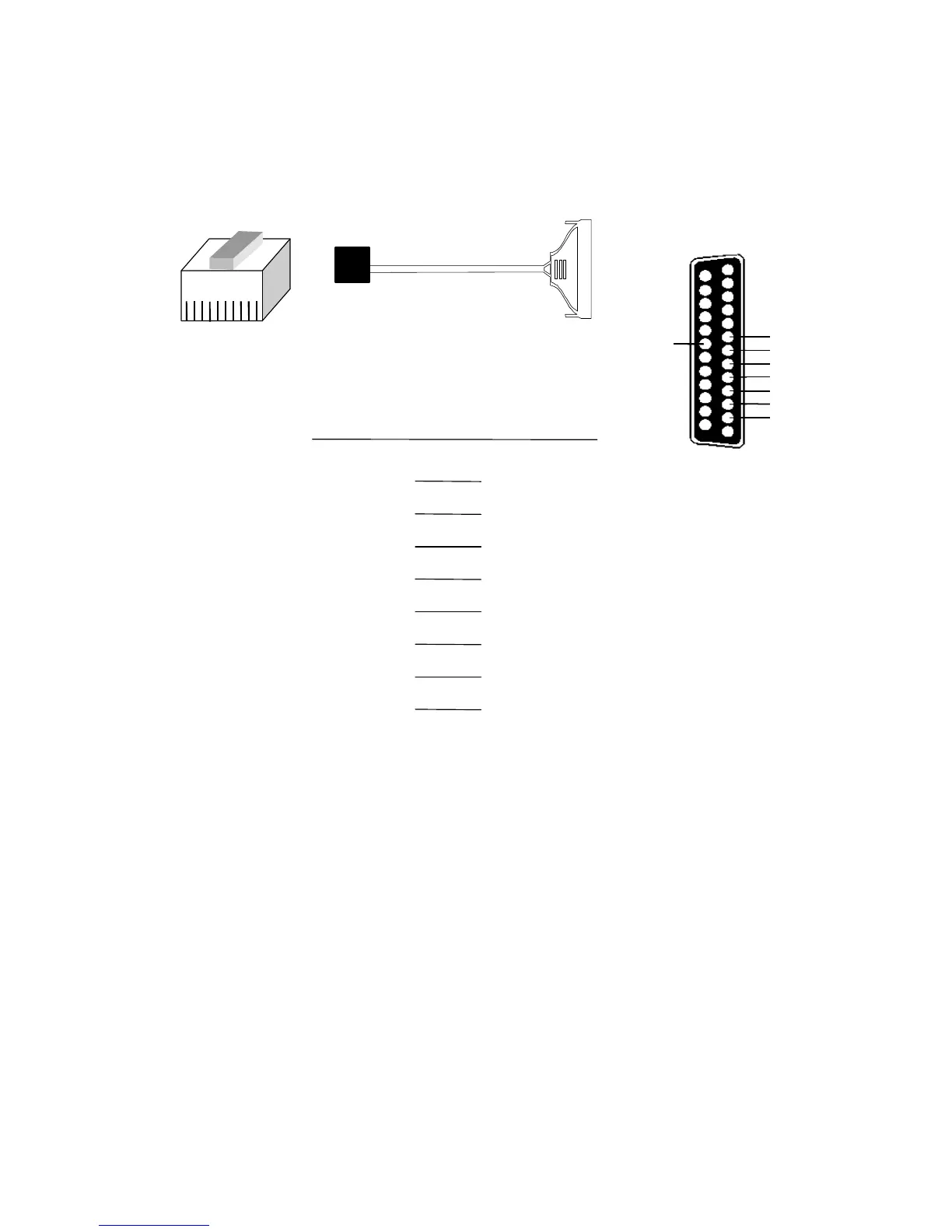

CN20030 - RJ45 to Female DB25 RS-232 Cable Pinouts
RJ-45 Jack DB25 Female
DCD 1 8 DCD
DSR 2 6 DTR
RTS 3 4 CTS
GND 4/7 7 GND
TxD 5 2 RxD
RxD 6 3 TxD
CTS 8 5 RTS
DTR 9 20 DSR
8 DCD
7 GND
6 DTR
5 RTS
4 CTS
3 TxD
2 RxD
20 DSR
1
10
