MP Aquinity 2 E - Page 97

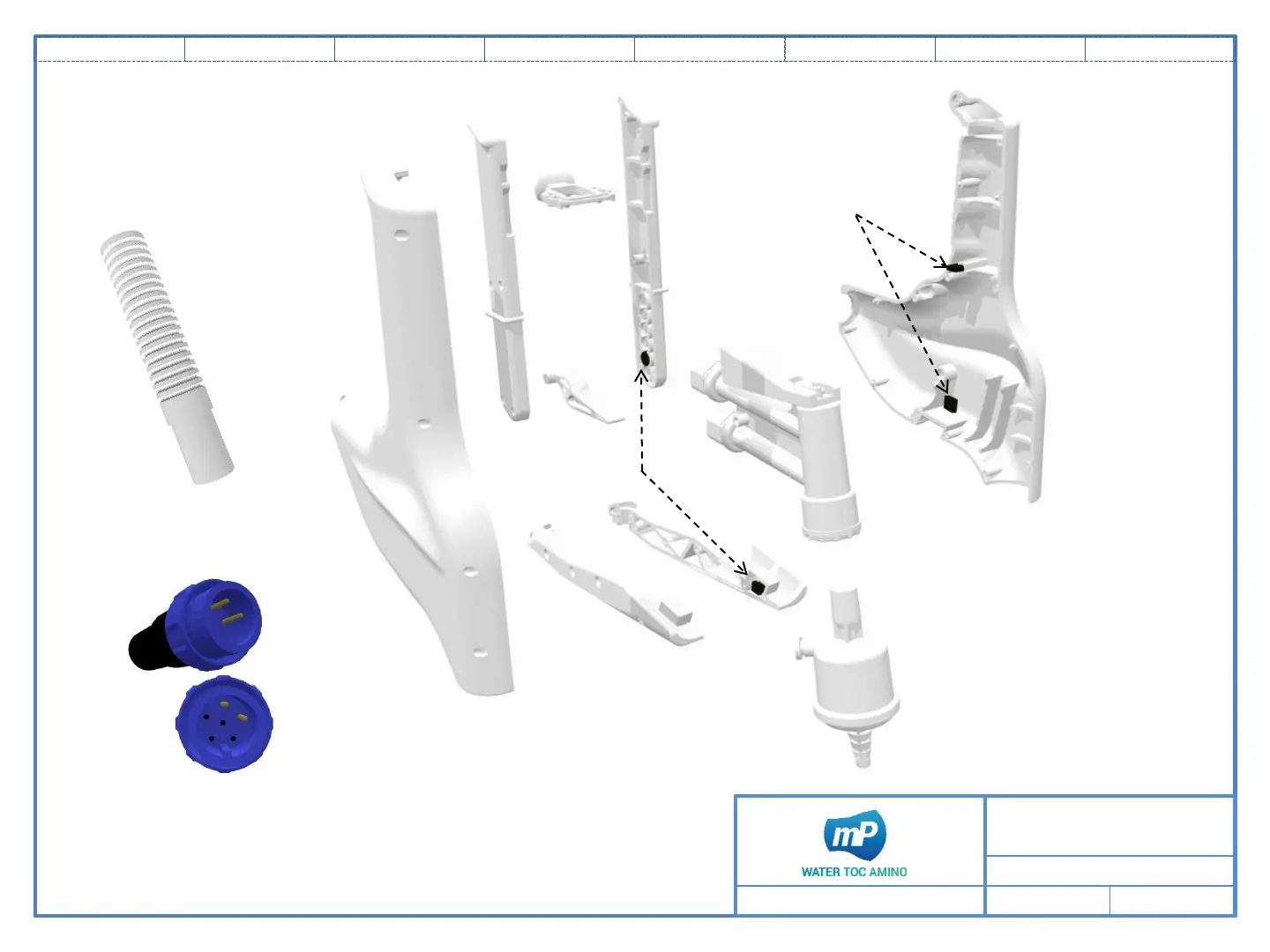

Exploded view v.1.0.
2018.07.31HaSDispenser (921-0545)
a b c d e f g h
Release-button
810-0546
Lever
810-0549
Molding(2)
810-0551
Holder(1)
810-0552
Pressure-pin(1)
810-0547
Pressure-pin(2)
810-0548
Molding(1)
810-0550
Pump-nozzle
830-0546
2x Reed contact
820-0829
Endfilter
FA007
190-0013
Holder(2)
810-0553
2x Neodym magnet
810-0554
Aquinity²E / Aquinity²P /
Aquinity²P10 / Astacus²
Bellow belt
810-0556
Plug 6 pole (2 pins)
860-1922
