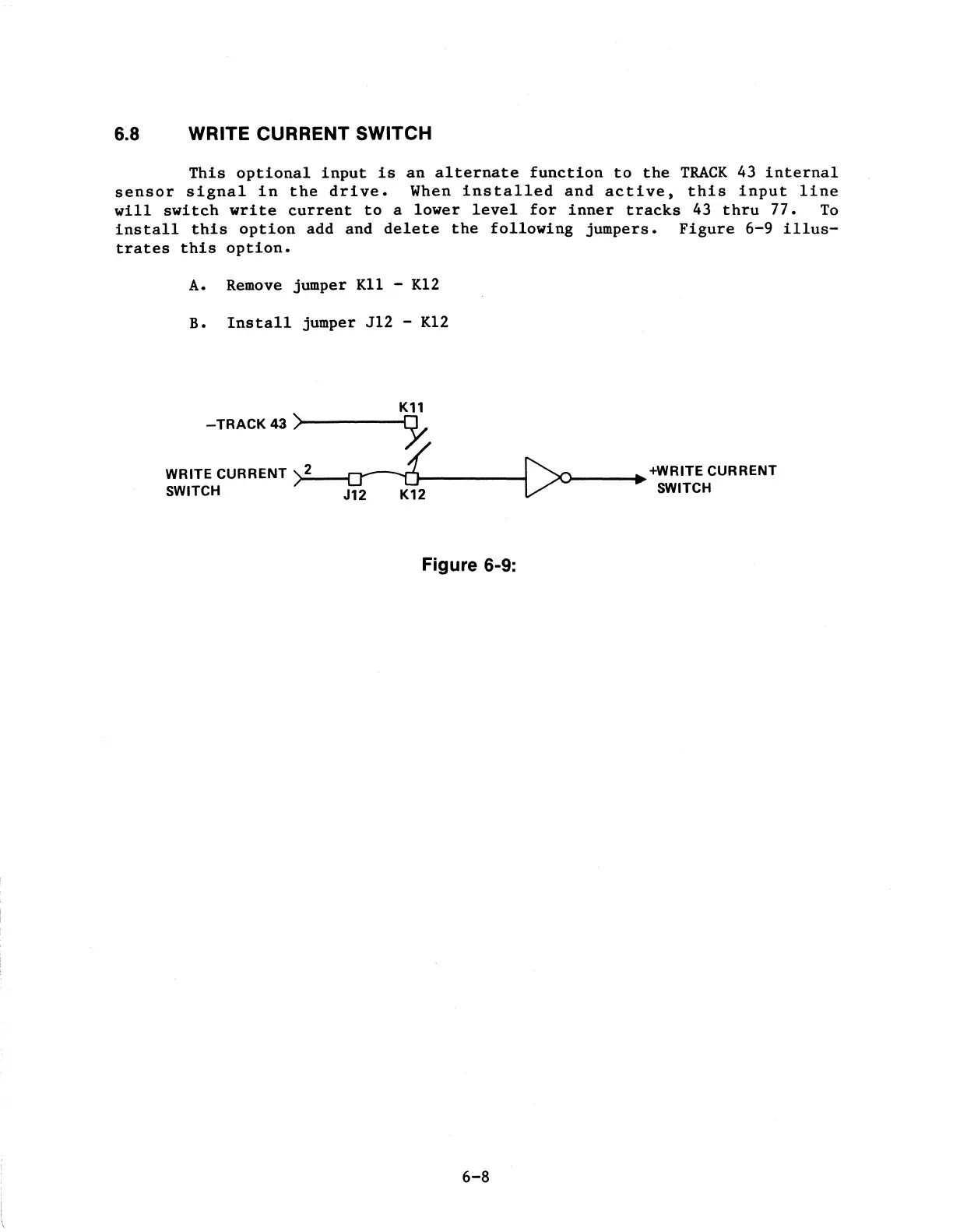

6.8 WRITE CURRENT SWITCH
This optional input is an alternate function to the TRACK 43 internal
sensor signal in the drive. When installed and active, this input line
will switch write current to a lower level for inner tracks 43 thru 77. To
install this option add and delete the following jumpers. Figure 6-9 illus-
trates this option.
A. Remove jumper Kll - K12
B. Install jumper Jl2 - K12
-TRACK 43 )~----"""'
WRITE CUR RENT ).:2::.,__rt'---r"l------1
SWITCH
J12
K12
Figure 6-9:
6-8
X:)...... __ _.+WRITE CURRENT
SWITCH
