MPI 40 Series - Page 95

+RAW READ
DATA
+CLOCK BIT
DETECTOR
+RAW READ
DATA
+DATA BIT
DETECTOR

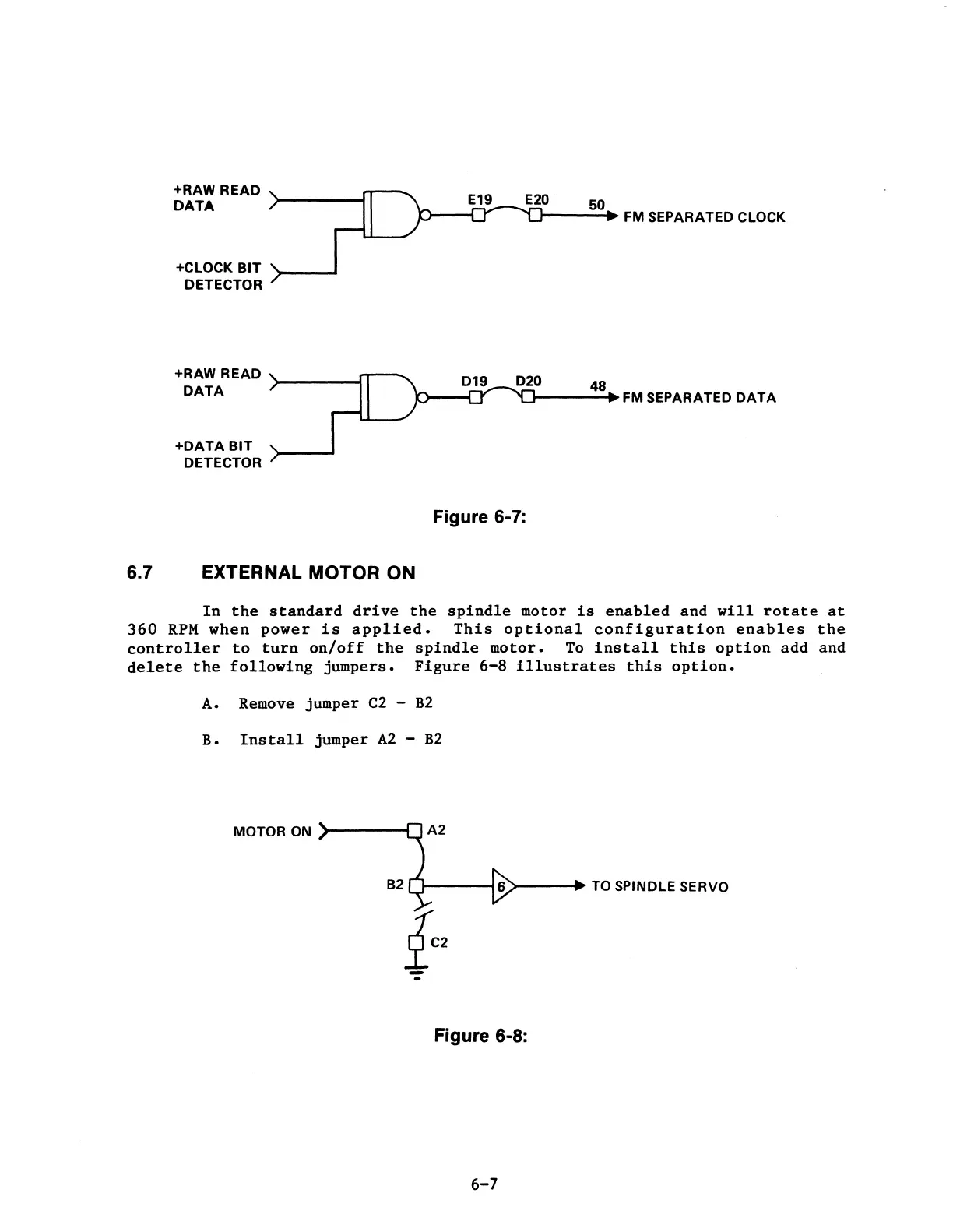

6.7 EXTERNAL MOTOR ON
50
1----~ FM SEPARATED CLOCK
Figure 6-7:
In the standard drive the spindle motor is enabled and will rotate at
360 RPM when power is applied. This optional configuration enables the
controller to turn on/off the spindle motor. To install this option add and
delete the following jumpers. Figure 6-8 illustrates this option.
A. Remove jumper C2 - B2
B. Install jumper A2 - B2
MOTOR ON )>o----
82
-4cr_2 __ ..,.~G ~---
r} v • TO SPINDLE SERVO
[c2
-
-
Figure 6-8:
6-7
