MR ECOTAP VPD CONTROL PRO - Mounting the Device Using the Cap Rail Included in Delivery

6 Mounting
Maschinenfabrik Reinhausen GmbH 2018 375252433/02 EN ECOTAP
®
VPD
®
CONTROL PRO
6.4.1 Mounting the device using the cap rail included in delivery
The cap rail included in delivery has 3 mounting drill holes, which you can
use to fasten the cap rail to the rear panel of the switch cabinet. Before you
can begin mounting, you have to remove a part of the device.

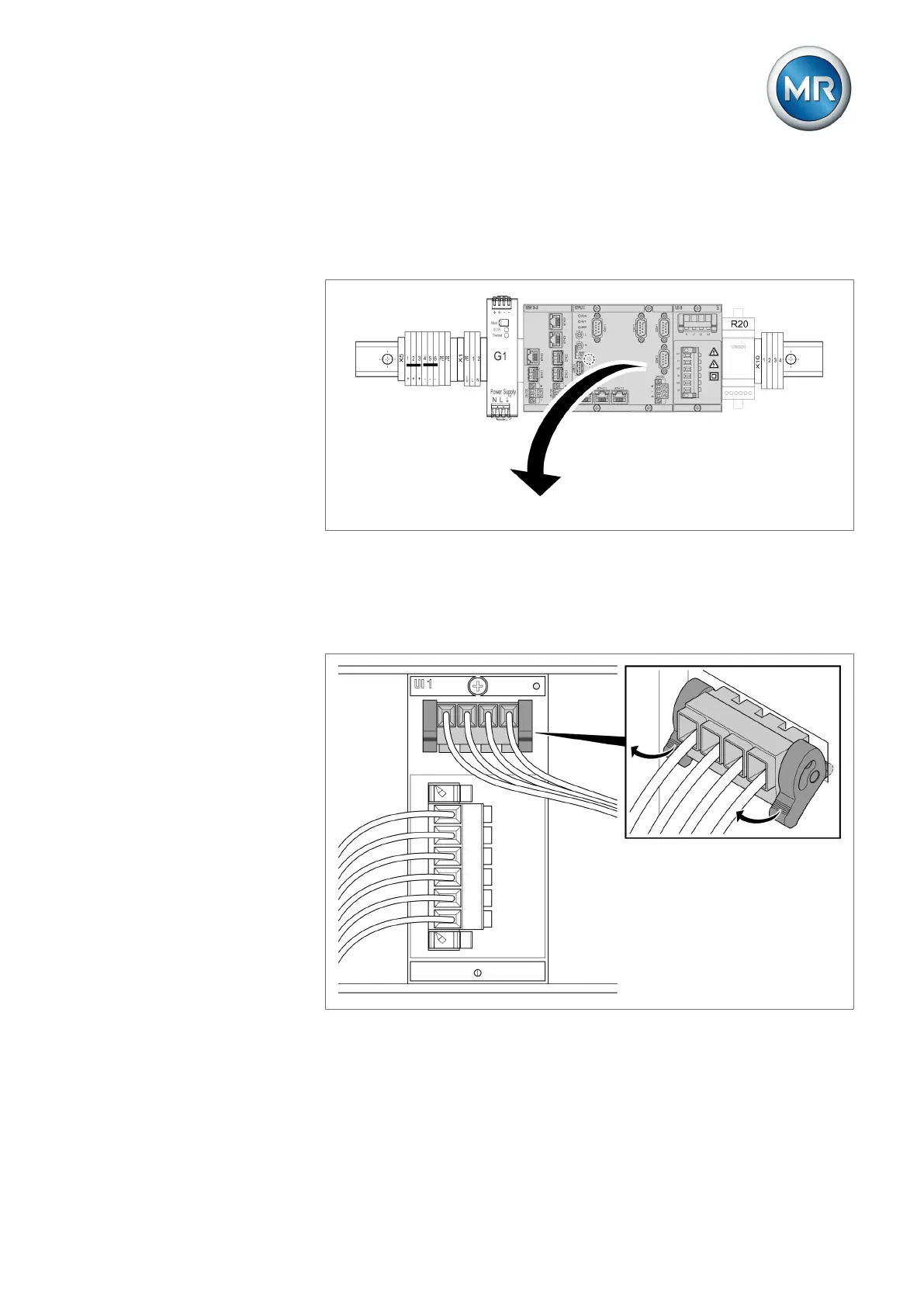

Figure15: Overview of the partial removal of assemblies
Preparing the device for mounting
To prepare the device for mounting, proceed as follows:
1. Remove the plug for voltage measurement from the UI assembly.
Figure16: Removing the plug for voltage measurement
