6.5.7 Wiring the MC 2-2/SW3-3 assembly
1. Insert the supplied SFP module into the corresponding Ethernet interface
in accordance with the connection diagram and fold the clasp down.

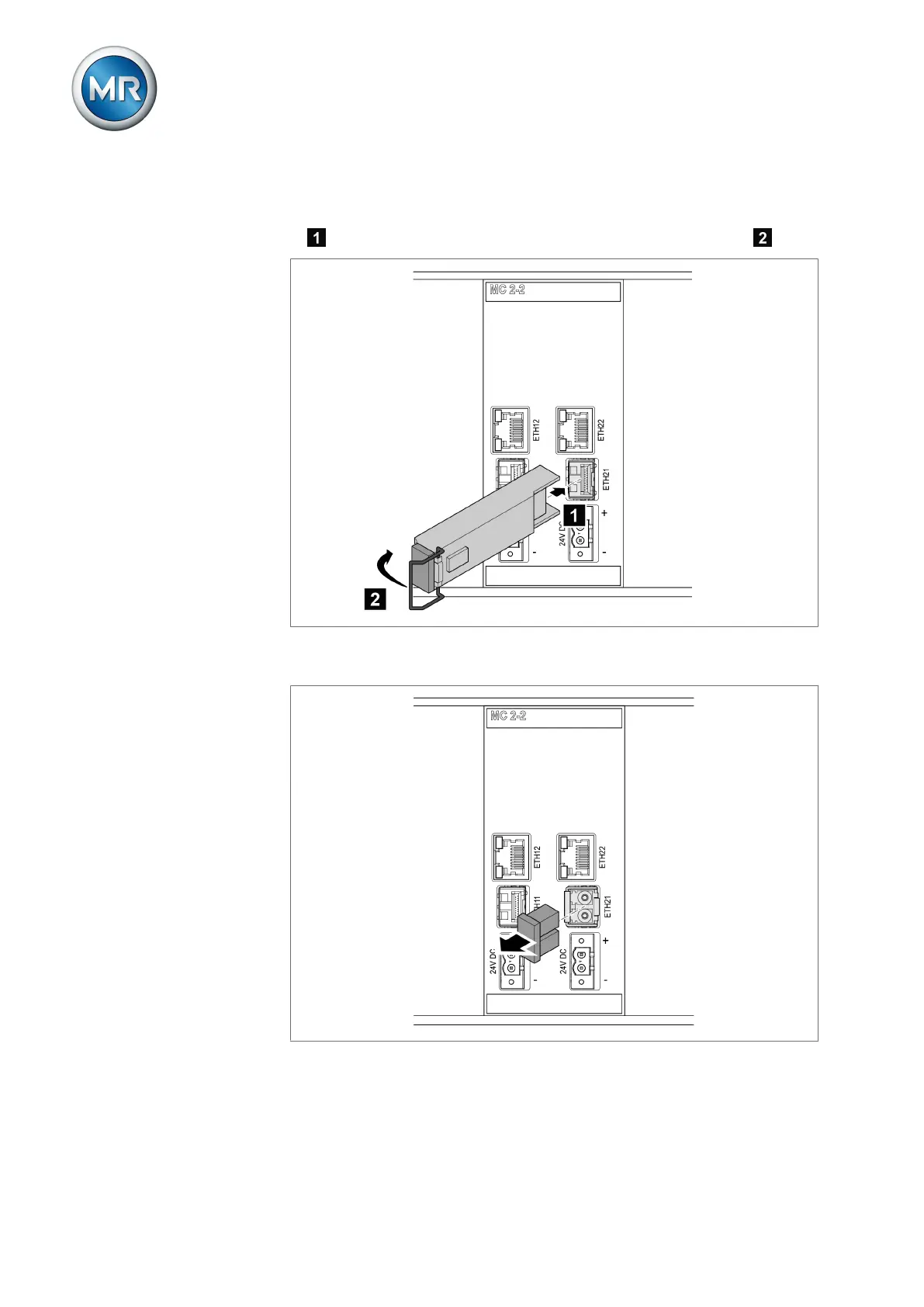

Figure41: Engaging the SFP module
2. Remove the SFP module dust plug.
Figure42: Removing the dust plug
