8 Operation
Maschinenfabrik Reinhausen GmbH 2018 875252433/02 EN ECOTAP
®
VPD
®
CONTROL PRO

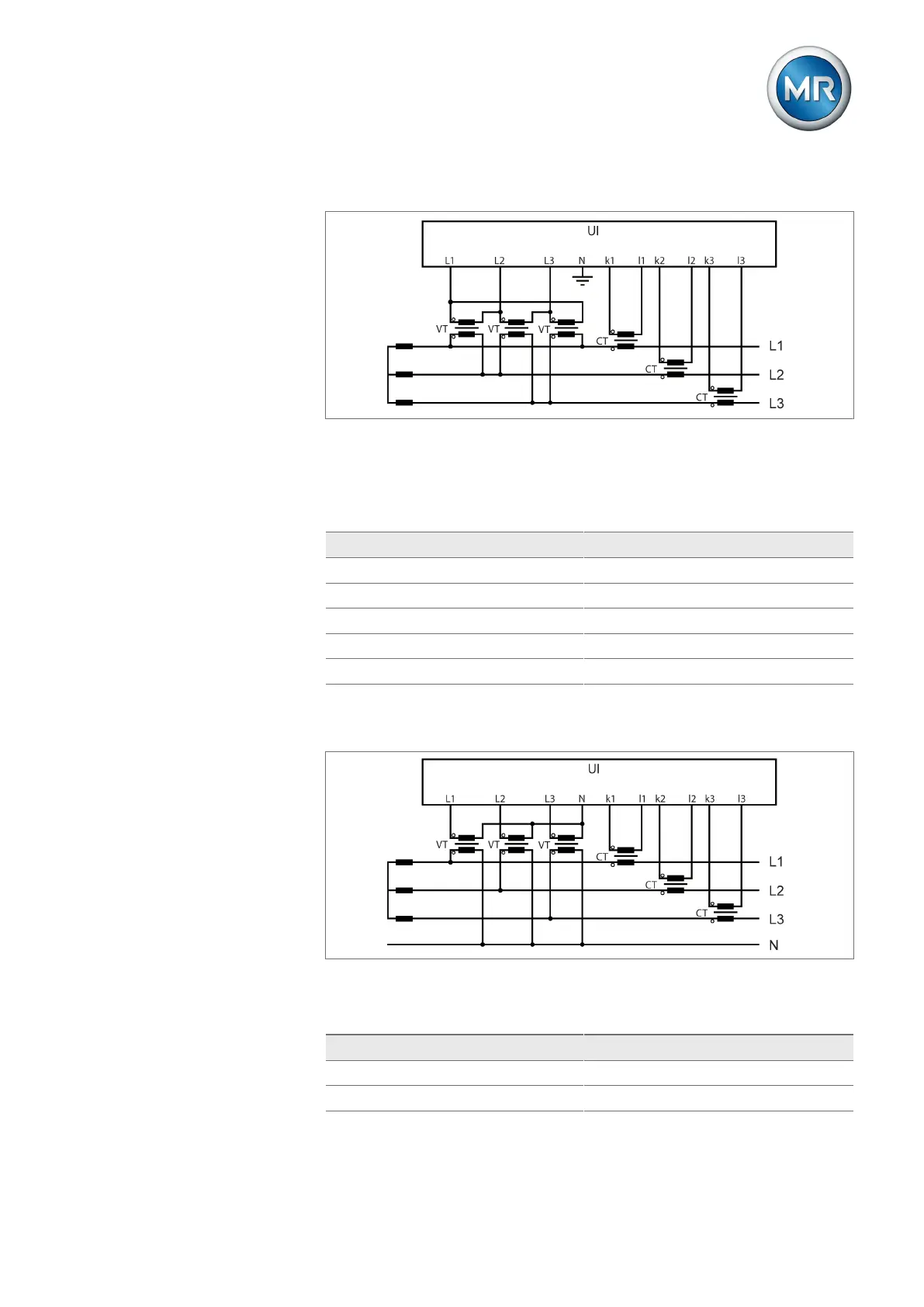

Circuit G
▪ Three-phase measurement.
▪ The voltage transformers are connected between the phases.
▪ The current lags behind the voltage by 30°.
If you use this circuit, set the device as follows:
Parameter Option
Voltage-transformer circuit -
Current-transformer circuit -
Phase angle correction 0°
UI measuring channels 3-phase measurement (channels 1, 2, 3)
Measurement mode Phase-phase
Table22: Circuit G
Circuit H
▪ Three-phase measurement.
▪ The voltage transformers are connected between the phase and neutral
conductor.
Parameter Option
Voltage-transformer circuit -
Current-transformer circuit -
