6.0 SYSTEM SETUP AND PREOPERATIONAL CHECKS
This section of the manual contains the recommended instruction for setting up the Model 3000
and performing preoperational checks prior to use. Ensure that all equipment and accessories for
performing surgical procedures are present and ready for use, including those for pre-operative
site preparation and post-operative care. Read all package labels and instructions that accompany
components and materials to ensure proper handling and preparation, including cleaning and
sterilization for reusable items. Steps in this section of the manual should be followed while
wearing proper gowni
ng and following aseptic technique according to your institution’s procedures.

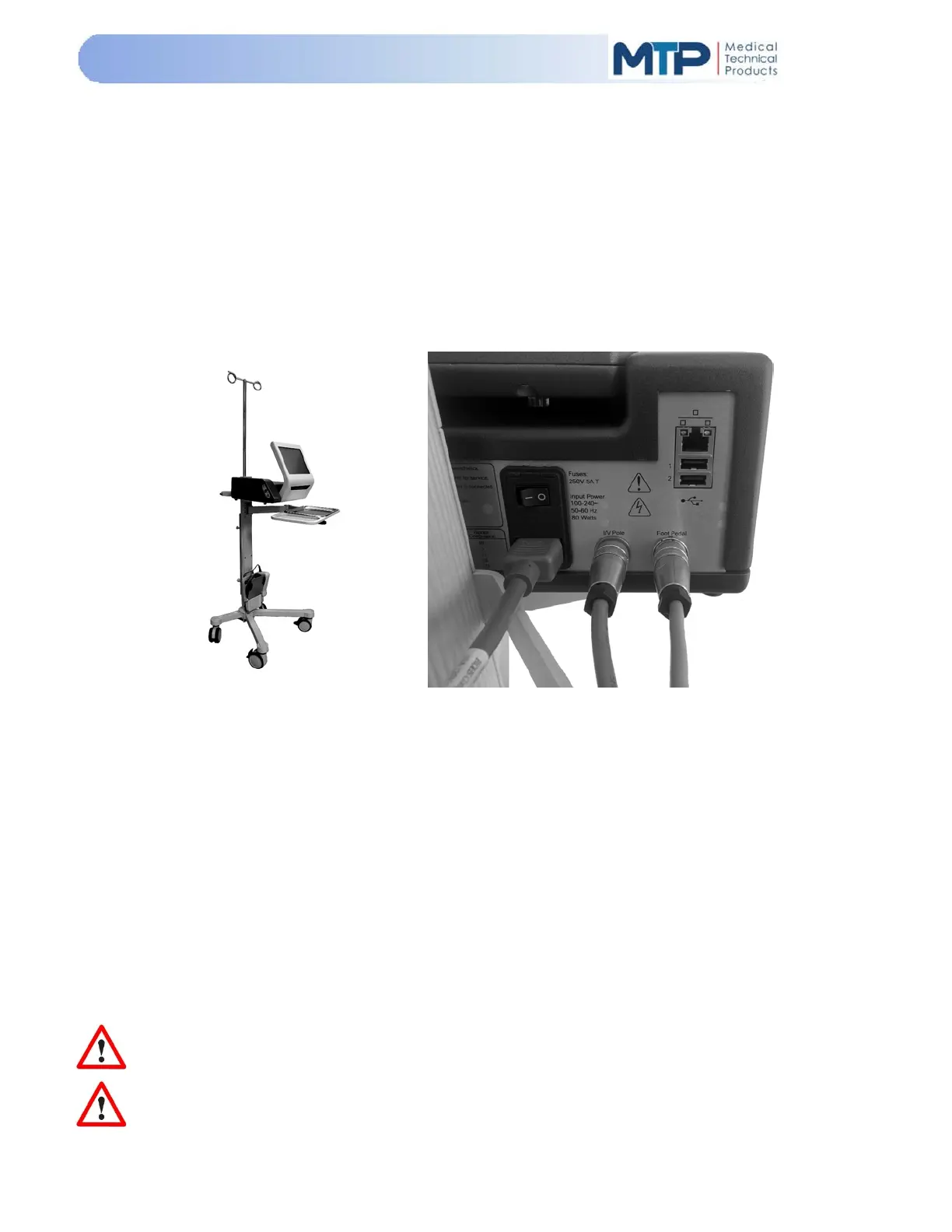

6.1 SYSTEM SETUP
6.1.1 Place the console onto the (optional) cart with IV pole, if available.
6.1.2 Verify that the power switch on the console back panel is in the “O” OFF position.
6.1.3 Connect the power cord to the AC power input connection on the back panel.
6.1.4 Connect foot pedal cable to the console back panel connection marked “FOOT PEDAL”.
6.1.4.1 Align the notch on the connector with the connection on the back panel.
6.1.4.2 Insert the connector and screw it in by hand until snug.
6.1.5 Connect cart cable to the console back panel connection marked “IV POLE”,
if applicable.
6.1.5.1 Align the notch on the connector with the connection on the back panel.
6.1.5.2 Insert the connector and screw it in by hand until snug.
WARNING: To avoid the risk of electric shock, this equipment must only be connected to a
mains supply with protective earth.
WARNING: The console can only be disconnected from the supply mains by means of the
power cord. Position the equipment so that the power cord is easily accessible.
