7.2.2 Engine – Cranking on starting system
Special tools, Material, Spare parts
Designation / Use Part No. Qty.
Pipe gripping pliers
F30017884 1
DANGER
Rotating and moving engine parts.
Risk of crushing, danger of parts of the body being caught or pulled in!
• Before barring the engine, make sure that there are no persons in the engine's danger zone.
• After finishing work on the engine, make sure that all safety devices are put back in place and all
tools are removed from the engine.
Cranking engine on starting sys-
tem

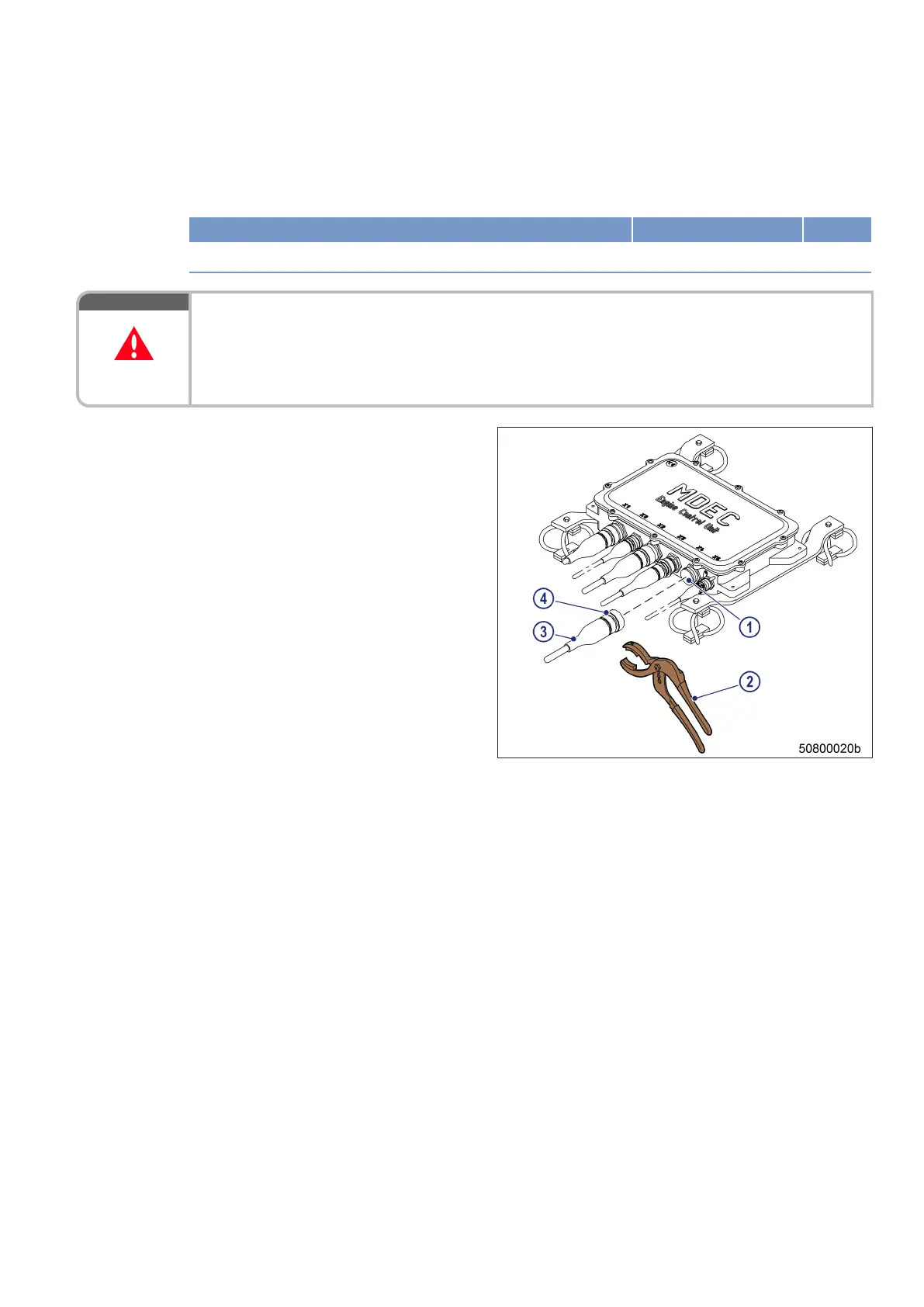

1. Disengage bayonet union nut (4) of connec-
tor X4 on Engine Control Unit using pipe
gripping pliers (2) and disconnect connec-
tor (3).
2. Crank engine in unloaded state: Press START
button.
3. Crank engine until oil pressure is indicated.
4. Engine start is automatically interrupted
when specified starting period is expired. If
necessary, re-start the engine after approx.
20 seconds.
5. Fit connector X4, turn bayonet union nut (4)
of connector (3) clockwise using pipe grip-
ping pliers (2) until it engages.
MS150031/06E 2016-010 | Engine | 147
TIM-ID: 0000031172 - 008
