7.4 Crankcase Breather
7.4.1 Crankcase breather – Oil separator replacement, diaphragm check and
replacement
Preconditions
☑ Engine is stopped and starting disabled.
Special tools, Material, Spare parts
Designation / Use Part No. Qty.
Torque wrench, 8–40 Nm
F30043446 1
Ratchet adapter
F30027340 1
Engine oil
Filter element
(→ Spare Parts Catalog)
Diaphragms
(→ Spare Parts Catalog)
Gasket
(→ Spare Parts Catalog)
WARNING
Engine oil is hot.
Engine oil can contain combustion residues which are harmful to health.
Risk of injury and poisoning!
• Allow the engine to cool to below 50 °C before beginning work.
• Wear protective clothing, protective gloves, and safety glasses / facial protection.
• Avoid contact with skin.
• Do not inhale oil vapor.

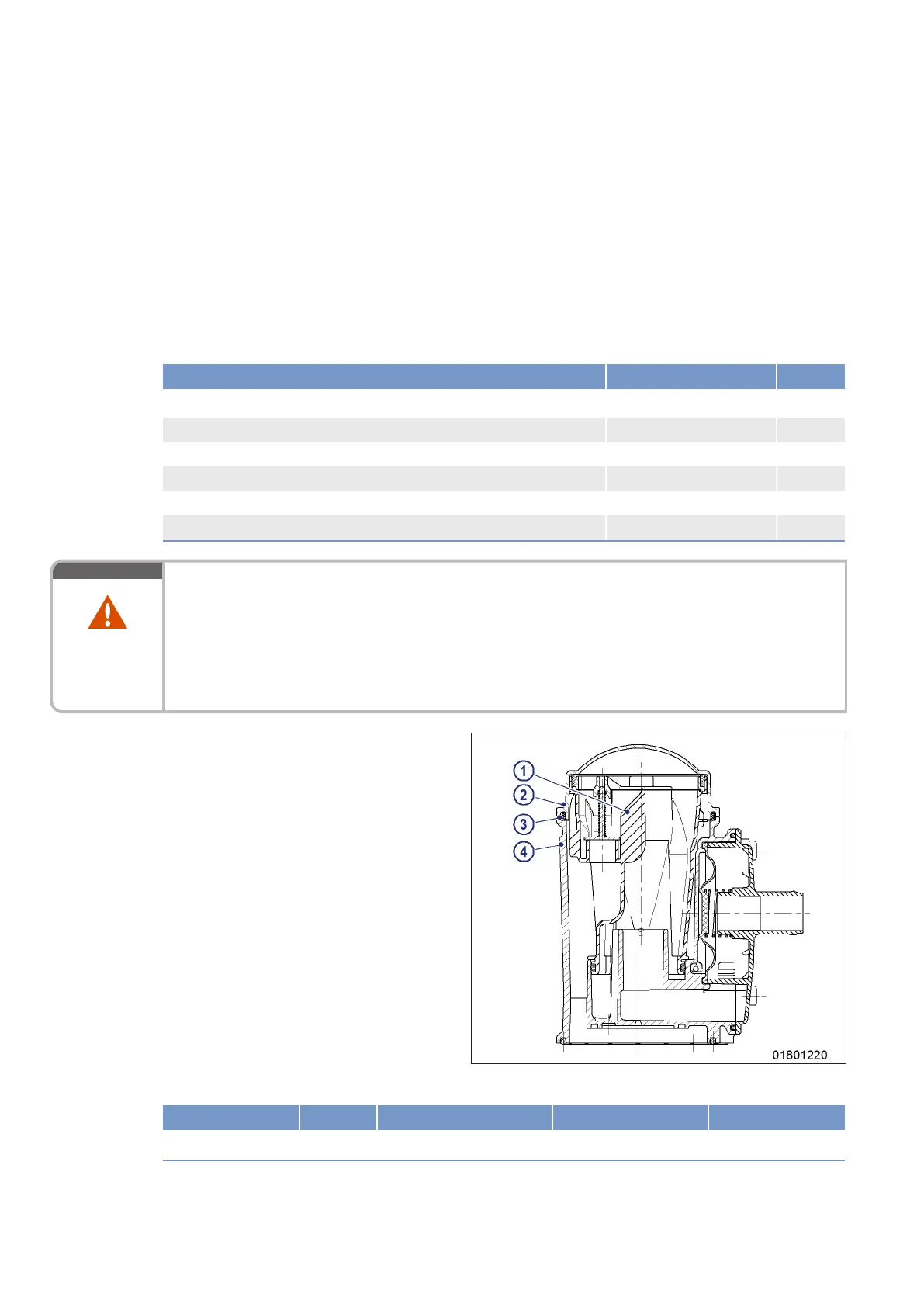

Oil separator filter element – Re-
placement
1. Remove cover (2) with O-ring (3).
2. Remove filter element (1) from housing (4).
3. Insert new filter element in housing (4).
4. Install cover (2) with new O-ring.
5. Use torque wrench to tighten screws of cover (2) to specified tightening torque.
Name Size Type Lubricant Value/Standard
Screw Tightening torque (Engine oil) 10 Nm −2 Nm
6. Replace further oil separator elements in the same way.
152 | Crankcase Breather |
MS150031/06E 2016-010
TIM-ID: 0000000017 - 011
