7.16 Coolant Circuit, General, High-Temperature Circuit
7.16.1 Drain and venting points

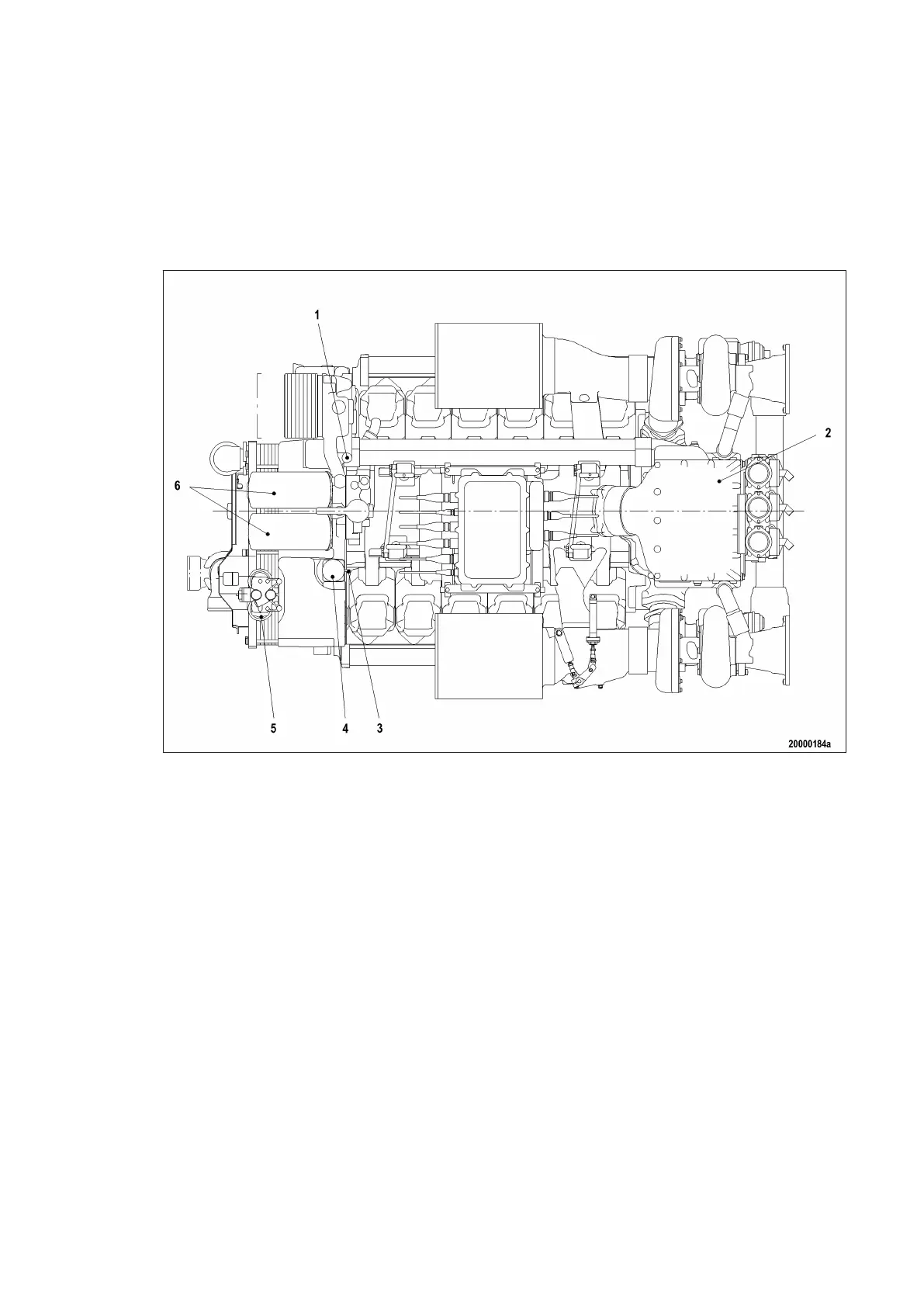

Top side
1 Engine coolant vent
2 Intercooler
3 Overflow line
4 Engine coolant expansion
tank
5 Fuel filter
6 Engine oil filter
200 | Coolant Circuit, General, High-Temperature Circuit | MS150031/06E 2016-010
