7.15.3 Centrifugal oil filter and filter sleeve – Cleaning and replacement
Preconditions
☑ Engine is stopped and starting disabled.
Special tools, Material, Spare parts
Designation / Use Part No. Qty.
Oil filter wrench
F30379104 1
Cold cleaner(Hakutex 50)
X00056751 1
Filter sleeve
(→ Spare Parts Catalog)
O-ring
(→ Spare Parts Catalog)
O-ring
(→ Spare Parts Catalog)
WARNING
Compressed air gun ejects a jet of pressurized air.
Risk of injury to eyes and damage to hearing, risk of rupturing internal organs!
• Never direct air jet at people.
• Always wear safety goggles/face mask and ear defenders.

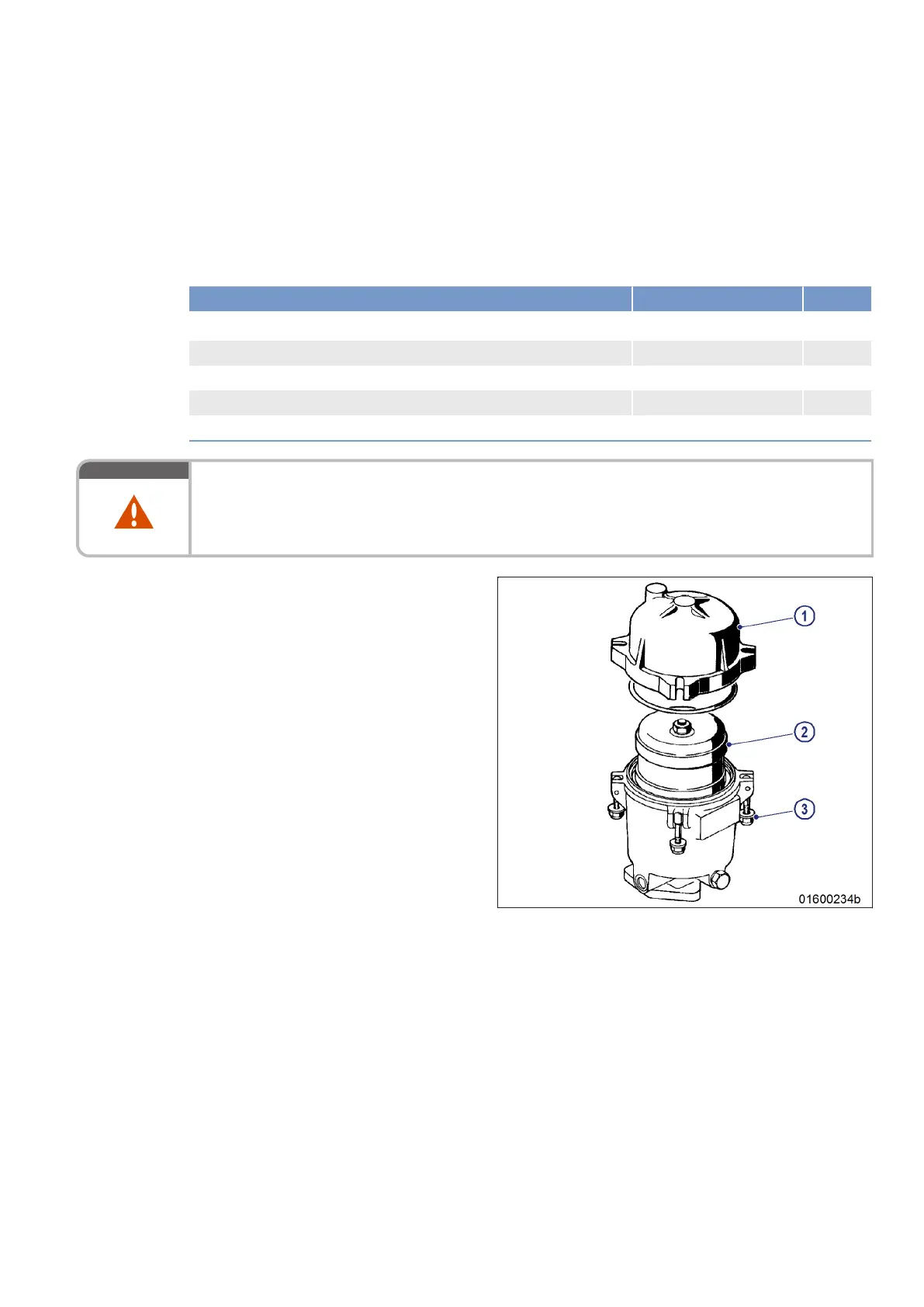

Removing rotor of centrifugal oil
filter
1. Release nuts (3).
2. Remove housing cover (1).
3. Remove complete rotor (2) from housing.
MS150031/06E 2016-010 | Oil Filtration / Cooling | 197
